Hood & lock
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.

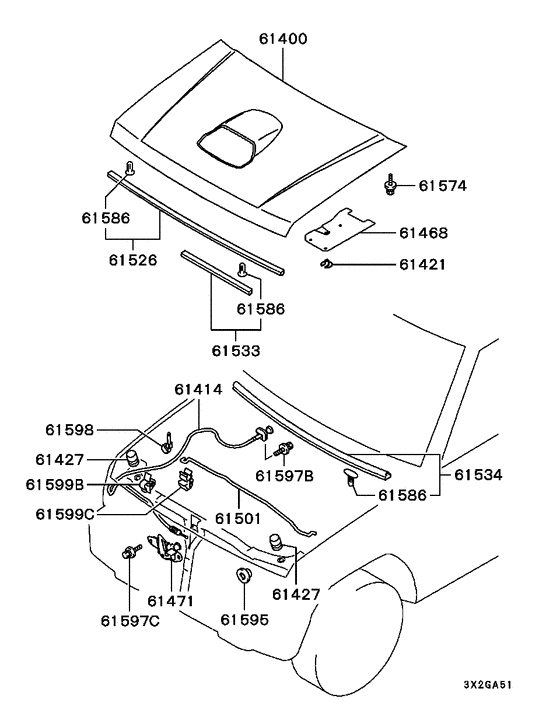

Diagram 7939187
Parts diagram group Hood & lock in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (25 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 61400 | MR208092 | HOOD | 1 | $714.90 | |
| 61414 | MR156064 | CABLE, HOOD LOCK RELEASE | 1 | $45.14 | |
| 61421 | MB020923 | CLIP, HOOD LOCKING | 8.2 | 3 | $3.69 |
| 61421 | MB270053 | CLIP, HOOD INSULATOR | 3 | $1.35 | |
| 61421 | MU481187 | CLIP, HOOD INSULATOR | 3 | $0.82 | |
| 61427 | MB270408 | DAMPER, HOOD | ** | 2 | $2.61 |
| 61468 | MR180067 | INSULATOR, HOOD | 1 | — | |
| 61471 | MB401508 | LATCH, HOOD | 1 | — | |
| 61471 | MR180460 | LATCH, HOOD | 1 | $26.68 | |
| 61501 | MR156005 | ROD, HOOD SUPPORT | 1 | $25.16 | |
| 61526 | MR180491 | WEATHERSTRIP, HOOD | 1 | — | |
| 61533 | MR180495 | WEATHERSTRIP, HOOD, FR | 1 | — | |
| 61534 | MR180921 | WEATHERSTRIP, HOOD, RR | 1 | $41.72 | |
| 61574 | MF243649 | BOLT, FLYWHEEL HOUSING | Washer assembled,8x16 | 4 | $0.45 |
| 61586 | MB105489 | CLIP, HOOD | 5.2 | 17 | $4.10 |
| 61586 | MU481027 | CLIP, HOOD | 5.3 | 17 | $0.66 |
| 61586 | MU481276 | CLIP, FR DOOR | 5.2 | 17 | $0.96 |
| 61595 | MB020667 | GROMMET, HOOD LOCKING | 15 | 1 | $2.28 |
| 61597B | MS240632 | BOLT, HOOD LOCKING | Washer assembled,6x20 | 1 | $2.05 |
| 61597C | MS240121 | BOLT, CONNROD | Washer assembled,6x16 | 2 | $1.31 |
| 61597C | MS240591 | BOLT, AIR CLEANER | Washer assembled,6x16 | 2 | $2.96 |
| 61597C | MU240068 | BOLT, HOOD LOCKING | Washer assembled,6x16 | 2 | $2.37 |
| 61598 | MB249338 | BAND, ROCKER COVER | L=129.5 | 1 | $2.87 |
| 61599B | MB270319 | CLIP, HOOD LOCKING | 5 | 1 | $0.94 |
| 61599C | MA155254 | CLIP, HOOD LOCKING | 7 | 1 | $2.13 |
