Grille guard
This EPC family contains 2 catalog variations for the VIN-confirmed Pajero Mini H56A catalog.

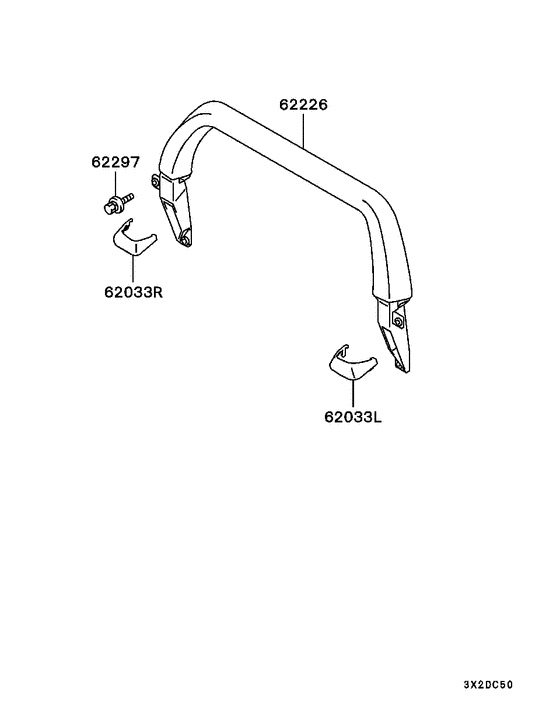

Diagram 7939185
Parts diagram group Grille guard in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (5 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 62033L | MR274577 | COVER, FR BUMPER GUARD BAR, LWR OTR LH | 1 | $21.20 | |
| 62033R | MR274578 | COVER, FR BUMPER GUARD BAR, LWR OTR RH | 1 | $16.42 | |
| 62226 | MR274576 | GUARD, RADIATOR GRILLE | 1 | $611.52 | |
| 62297 | MS240125 | BOLT, FUEL TANK | Washer assembled,8x20 | 4 | $0.88 |
| 62297 | MS240126 | BOLT, RADIATOR CONDENSER TANK | Washer assembled,8x25 | 4 | $1.17 |

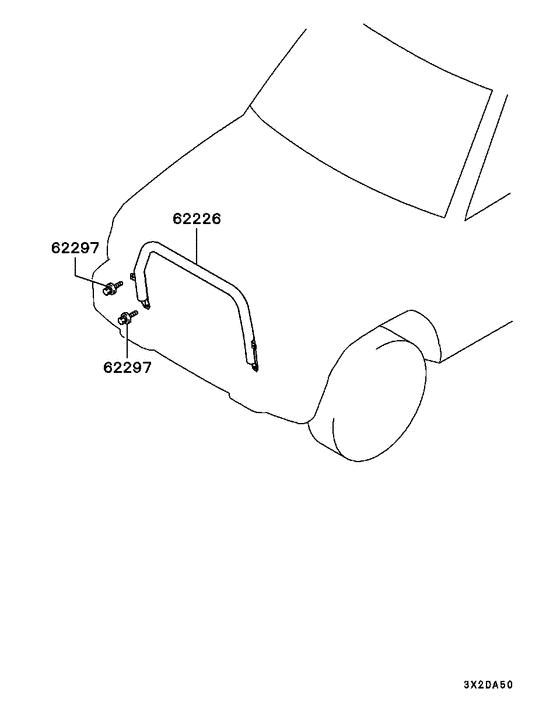

Diagram 7939186
Parts diagram group Grille guard in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (3 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 62226 | MR274576 | GUARD, RADIATOR GRILLE | 1 | $611.52 | |
| 62297 | MS240125 | BOLT, FUEL TANK | Washer assembled,8x20 | 4 | $0.88 |
| 62297 | MS240126 | BOLT, RADIATOR CONDENSER TANK | Washer assembled,8x25 | 4 | $1.17 |
