Fuel filler lid & lock
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.

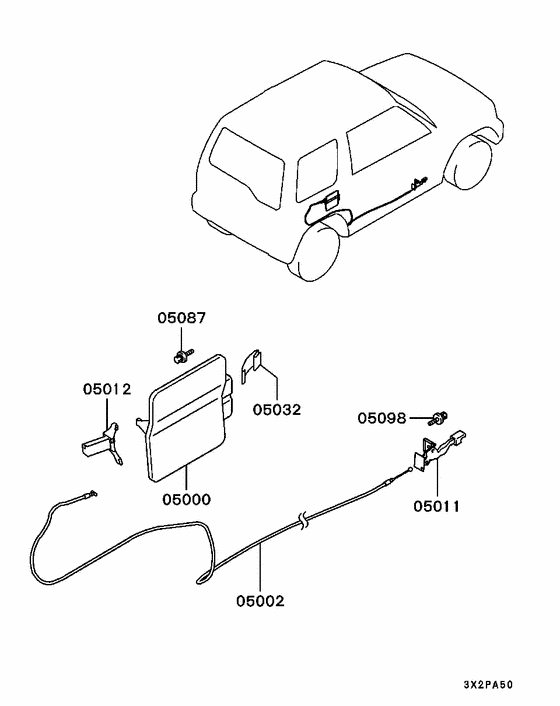

Diagram 7939194
Parts diagram group Fuel filler lid & lock in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (7 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 05000 | MR208084 | LID, FUEL FILLER | 1 | — | |
| 05002 | MR156000 | CABLE, FUEL FILLER LID LOCK RELEASE | 1 | $41.04 | |
| 05011 | MB626615 | HANDLE, TRUNK LID LOCK RELEASE | 1 | $19.84 | |
| 05012 | MB023335 | HOOK, FUEL FILLER LID | 1 | $7.53 | |
| 05032 | MB023350 | SPRING, FUEL FILLER LID DAMPER | 1 | $2.37 | |
| 05087 | MS240121 | BOLT, CONNROD | Washer assembled,6x16 | 2 | $1.31 |
| 05098 | MS240121 | BOLT, CONNROD | Washer assembled,6x16 | 1 | $1.31 |
