Front garnish & moulding
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.

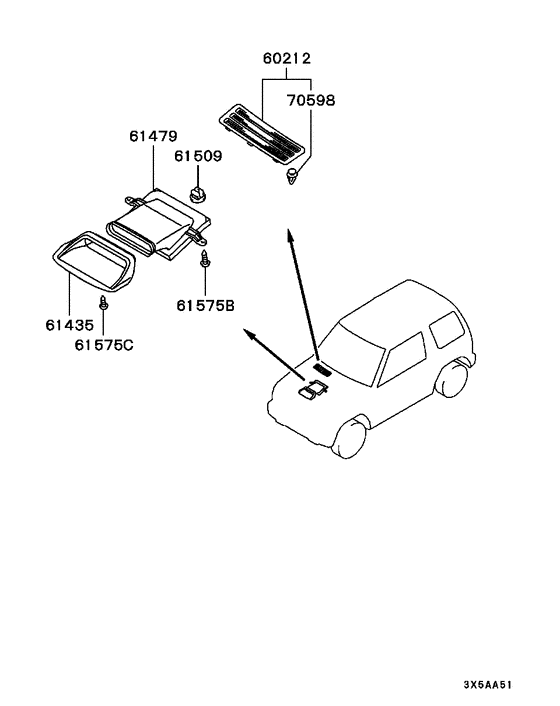

Diagram 7939209
Parts diagram group Front garnish & moulding in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (10 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 60212 | MR155297 | GARNISH, FR DECK | 1 | — | |
| 61435 | MR746060 | GARNISH, HOOD AIR INLET | 1 | $177.60 | |
| 61435 | 5913A015HE | GARNISH, HOOD AIR INLET | 1 | $145.78 | |
| 61435 | MR769199 | GARNISH, HOOD AIR INLET | 1 | $177.60 | |
| 61435 | 5913A015HF | GARNISH, HOOD AIR INLET | 1 | $145.78 | |
| 61479 | MR157705 | DUCT, HOOD AIR INLET | 1 | $65.86 | |
| 61509 | MS480003 | GROMMET, FUEL FILLER LID PANEL | Screw,6 | 2 | $0.88 |
| 61575B | MF453048 | SCREW, STEERING COLUMN | Tapping,6x20 | 2 | $0.29 |
| 61575C | MF453030 | SCREW, ENG CONTROL EQUIP | Tapping,5x10 | 2 | $0.16 |
| 70598 | MR190683 | CLIP, GATE PILLAR TRIM | 2 | $4.38 |
