Front end panel
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.

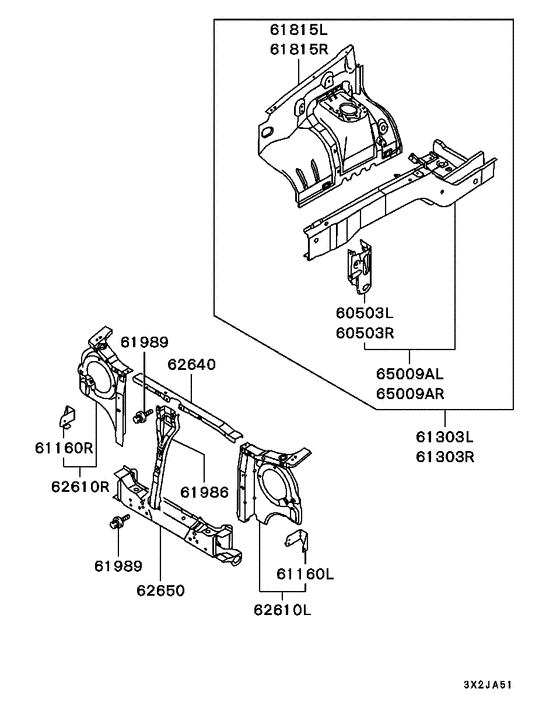

Diagram 7939189
Parts diagram group Front end panel in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (28 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 60503L | MR208031 | BRACKET, TRACTION HOOK, LH | 1 | $70.30 | |
| 60503R | MR208032 | BRACKET, TRACTION HOOK, RH | 1 | $70.30 | |
| 61160L | MR208035 | BRACKET, FR FENDER, LH | 1 | $28.86 | |
| 61160R | MR208036 | BRACKET, FR FENDER, RH | 1 | $28.86 | |
| 61303L | MR208023 | FENDER SHIELD, FR LH | 1 | $685.78 | |
| 61303L | MR208943 | FENDER SHIELD, FR LH | 1 | $685.78 | |
| 61303L | MR325101 | FENDER SHIELD, FR LH | 1 | $665.39 | |
| 61303L | MR376701 | FENDER SHIELD, FR LH | 1 | $684.32 | |
| 61303R | MR208942 | FENDER SHIELD, FR RH | 1 | $665.39 | |
| 61303R | MR208944 | FENDER SHIELD, FR RH | 1 | $665.39 | |
| 61303R | MR376700 | FENDER SHIELD, FR RH | 1 | $684.32 | |
| 61815L | MR208027 | WHEELHOUSE, FR INR LH | 1 | $299.94 | |
| 61815L | MR208947 | WHEELHOUSE, FR INR LH | 1 | $299.94 | |
| 61815L | MR325102 | WHEELHOUSE, FR INR LH | 1 | $297.02 | |
| 61815R | MR208946 | WHEELHOUSE, FR INR RH | 1 | $297.02 | |
| 61815R | MR208948 | WHEELHOUSE, FR INR RH | 1 | $297.02 | |
| 61986 | MR208038 | STAY, FR END STRUCTURE | 1 | $96.20 | |
| 61989 | MF243623 | BOLT, FLYWHEEL HOUSING | Washer assembled,6x14 | 4 | $2.74 |
| 62610L | MR208033 | SUPPORT, HEADLAMP, LH | 1 | $156.88 | |
| 62610L | MR439495 | SUPPORT, HEADLAMP, LH | 1 | $156.88 | |
| 62610R | MR208034 | SUPPORT, HEADLAMP, RH | 1 | $156.88 | |
| 62610R | MR439496 | SUPPORT, HEADLAMP, RH | 1 | $156.88 | |
| 62640 | MR208025 | PANEL, HEADLAMP SUPPORT, UPR | 1 | $108.78 | |
| 62650 | MR208037 | PANEL, HEADLAMP SUPPORT, LWR | 1 | — | |
| 65009AL | MR208029 | SIDEMEMBER ASSY, FR LH | 1 | $419.33 | |
| 65009AL | MR376703 | SIDEMEMBER ASSY, FR LH | 1 | $438.26 | |
| 65009AR | MR208030 | SIDEMEMBER ASSY, FR RH | 1 | $419.33 | |
| 65009AR | MR376704 | SIDEMEMBER ASSY, FR RH | 1 | $438.26 |
