Front door window regulator
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.

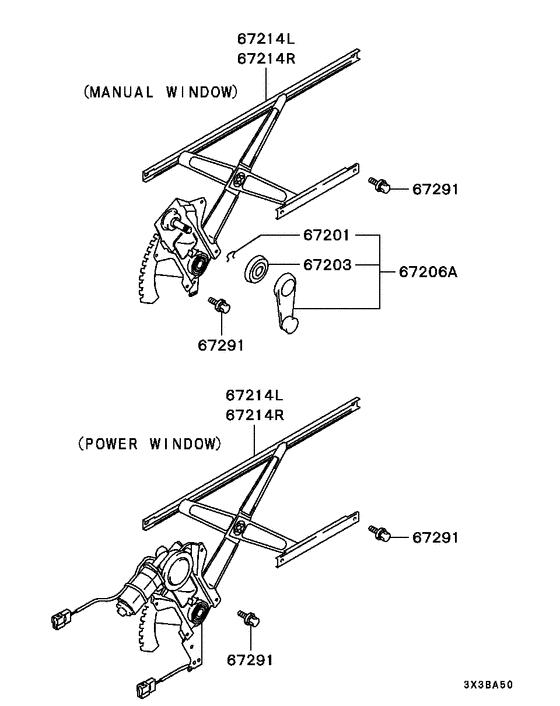

Diagram 7939203
Parts diagram group Front door window regulator in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (4 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 67214L | MR157755 | REGULATOR, FR DOOR WINDOW, LH | 1 | $438.26 | |
| 67214R | MR157756 | REGULATOR, FR DOOR WINDOW, RH | 1 | $486.72 | |
| 67291 | MB321590 | Bolt | Washer assembled,6x10 | 16 | — |
| 67291 | MU240087 | BOLT | Washer assembled,6x10 | 16 | $1.38 |
