Front door trim & pull handle
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.

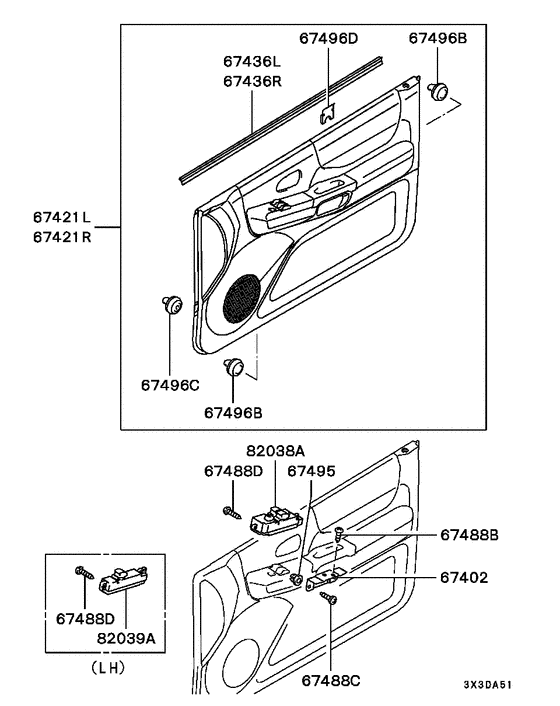

Diagram 7939205
Parts diagram group Front door trim & pull handle in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (20 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 67402 | MR167197 | BRACKET, FR DOOR TRIM, LH | 2 | $10.95 | |
| 67421L | MR406823 | TRIM, FR DOOR, LH | 1 | $375.65 | |
| 67421L | MR406853 | TRIM, FR DOOR, LH | 1 | $375.65 | |
| 67421R | MR406830 | TRIM, FR DOOR, RH | 1 | $375.65 | |
| 67421R | MR406857 | TRIM, FR DOOR, RH | 1 | $375.65 | |
| 67436L | MR156625 | WEATHERSTRIP, FR DOOR BELT, INR LH | 1 | $28.86 | |
| 67436L | MR371449 | WEATHERSTRIP, FR DOOR BELT, INR LH | 1 | $25.16 | |
| 67436R | MR156626 | WEATHERSTRIP, FR DOOR BELT, INR RH | 1 | $28.86 | |
| 67436R | MR371450 | WEATHERSTRIP, FR DOOR BELT, INR RH | 1 | $25.16 | |
| 67488B | MF453091 | SCREW, FUEL FILLER LID LOCKING | 2 | $2.74 | |
| 67488C | MF453046 | SCREW, FUEL LINE | Tapping,6x14 | 4 | $2.74 |
| 67488C | MF456487 | SCREW, FR DOOR TRIM | Tapping,6x16 | 4 | $2.81 |
| 67488D | MF453033 | SCREW, TAPPING, 5x16 | Tapping,5x16 | 4 | $1.56 |
| 67495 | MS480003 | GROMMET, FUEL FILLER LID PANEL | Screw,6 | 4 | $0.88 |
| 67496B | MB851006 | CLIP, FR DOOR TRIM | 8.5 | 10 | $1.31 |
| 67496B | MB851006 | CLIP, FR DOOR TRIM | 8.5 | 14 | $1.31 |
| 67496C | MB317746 | CLIP, FR DOOR TRIM | 6 | $0.96 | |
| 67496D | MU472023 | CLIP, FR DOOR TRIM | 12 | $4.79 | |
| 82038A | MR252816 | SWITCH ASSY, FR DOOR POWER WINDOW DRIVER SIDE | 1 | $244.20 | |
| 82039A | MR213085 | SWITCH ASSY, FR DOOR POWER WINDOW ASSISTANT SIDE | 1 | $231.19 |
