Front door panel & glass
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.

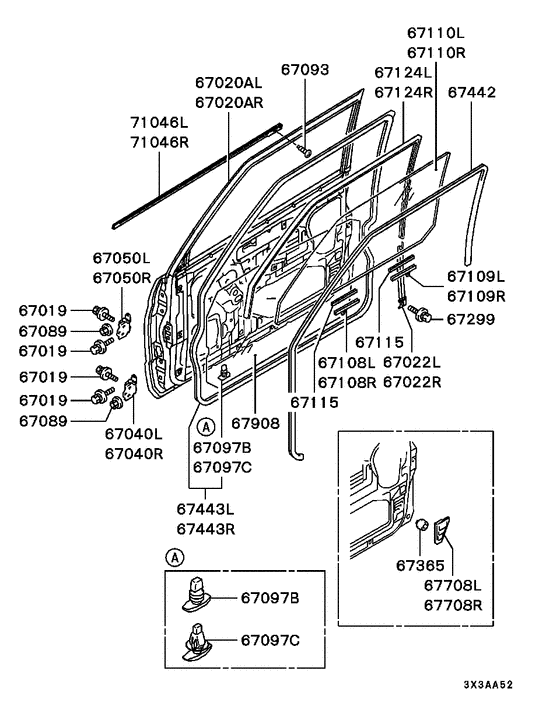

Diagram 7939202
Parts diagram group Front door panel & glass in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (42 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 67019 | MU140017 | BOLT, FR DOOR HINGE | Flange,8x20 | 14 | $0.74 |
| 67020AL | MR208085 | PANEL ASSY, FR DOOR, LH | 1 | $821.18 | |
| 67020AR | MR208086 | PANEL ASSY, FR DOOR, RH | 1 | $821.18 | |
| 67022L | MR156621 | SASH, FR DOOR WINDOW, LH | 1 | $33.30 | |
| 67022R | MR156622 | SASH, FR DOOR WINDOW, RH | 1 | $33.30 | |
| 67040L | MR180206 | HINGE, FR DOOR | 1 | $36.26 | |
| 67040R | MR180205 | HINGE, FR DOOR | 1 | $36.26 | |
| 67050L | MR180205 | HINGE, FR DOOR | 1 | $36.26 | |
| 67050R | MR180206 | HINGE, FR DOOR | 1 | $36.26 | |
| 67089 | MB116891 | NUT, FR DOOR PANEL | Washer assembled,8 | 4 | $1.92 |
| 67093 | MF453075 | SCREW, WINDSHIELD PANEL | Tapping,4x8 | 2 | $1.46 |
| 67097B | MB105489 | CLIP, HOOD | 5.2 | 2 | $4.10 |
| 67097C | MB105489 | CLIP, HOOD | 5.2 | 38 | $4.10 |
| 67097C | MU481276 | CLIP, FR DOOR | 5.2 | 38 | $0.96 |
| 67108L | MB590253 | HOLDER, FR DOOR WINDOW GLASS | 1 | $9.32 | |
| 67108R | MB590254 | HOLDER, FR DOOR WINDOW GLASS | 1 | $9.32 | |
| 67109L | MB590254 | HOLDER, FR DOOR WINDOW GLASS | 1 | $9.32 | |
| 67109R | MB590253 | HOLDER, FR DOOR WINDOW GLASS | 1 | $9.32 | |
| 67110L | MR156001 | GLASS, FR DOOR WINDOW, LH | Asahi | 1 | — |
| 67110L | MR274129 | GLASS, FR DOOR WINDOW, LH | Asahi | 1 | — |
| 67110L | MR313361 | GLASS, FR DOOR WINDOW, LH | H.a.w.,asahi | 1 | $321.78 |
| 67110R | MR156002 | GLASS, FR DOOR WINDOW, RH | Asahi | 1 | — |
| 67110R | MR313362 | GLASS, FR DOOR WINDOW, RH | H.a.w.,asahi | 1 | $321.78 |
| 67115 | MB320235 | PAD, FR DOOR WINDOW GLASS | 155 | 4 | — |
| 67115 | MB364465 | PAD, FR DOOR WINDOW GLASS | 720 | 4 | $9.77 |
| 67124L | MR156617 | RUNCHANNEL, FR DOOR WINDOW GLASS | 1 | — | |
| 67124R | MR156618 | RUNCHANNEL, FR DOOR WINDOW GLASS | 1 | $59.20 | |
| 67299 | MB321590 | Bolt | Washer assembled,6x10 | 2 | — |
| 67299 | MU240087 | BOLT | Washer assembled,6x10 | 2 | $1.38 |
| 67365 | MB019730 | CUSHION, FR DOOR | 2 | $1.72 | |
| 67442 | MR167202 | TRIM, DOOR OPENING | 2 | — | |
| 67443L | MR156579 | WEATHERSTRIP, FR DOOR OPENING, LH | 1 | — | |
| 67443L | MR156581 | WEATHERSTRIP, FR DOOR OPENING, LH | 1 | — | |
| 67443L | MR156581 | WEATHERSTRIP, FR DOOR OPENING, LH | 1 | — | |
| 67443R | MR156580 | WEATHERSTRIP, FR DOOR OPENING, RH | 1 | — | |
| 67443R | MR156582 | WEATHERSTRIP, FR DOOR OPENING, RH | 1 | — | |
| 67443R | MR156582 | WEATHERSTRIP, FR DOOR OPENING, RH | 1 | — | |
| 67708L | MB590973 | VALVE, FR DOOR AIR OUTLET, LH | 1 | $10.80 | |
| 67708R | MB590974 | VALVE, FR DOOR AIR OUTLET, RH | 1 | $10.80 | |
| 67908 | MR156585 | FILM, FR DOOR WATERPROOF | 2 | $12.58 | |
| 71046L | MN111563 | MOULDING, FR DOOR WINDOW BELT LINE, LH | 1 | $88.24 | |
| 71046R | MN111564 | MOULDING, FR DOOR WINDOW BELT LINE, RH | 1 | — |
