Front door locking
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.

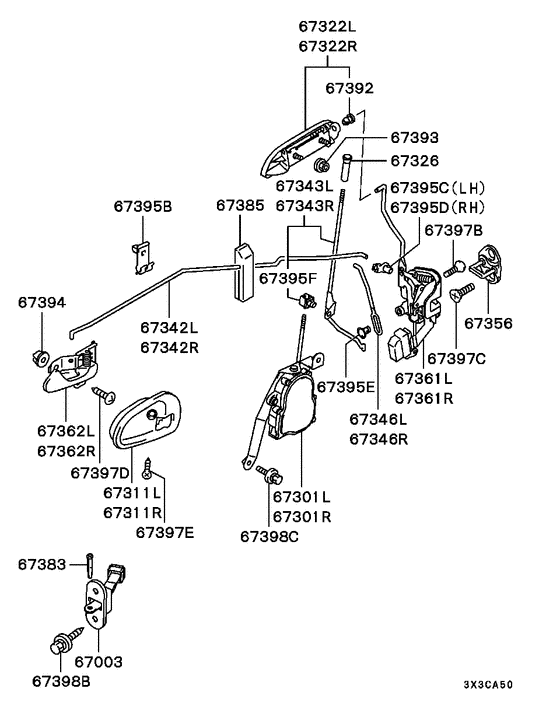

Diagram 7939204
Parts diagram group Front door locking in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (42 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 67003 | MB590169 | CHECK, FR DOOR | 2 | $32.15 | |
| 67301L | MR157001 | ACTUATOR, FR DOOR LOCK, LH | 1 | — | |
| 67301R | MR181784 | ACTUATOR, FR DOOR LOCK, RH | 1 | $173.16 | |
| 67311L | MR738354 | COVER, FR DOOR INSIDE HANDLE, LH | 1 | $13.27 | |
| 67311R | MR738355 | COVER, FR DOOR INSIDE HANDLE, RH | 1 | $12.18 | |
| 67322L | MB783843 | HANDLE, FR DOOR OUTSIDE, LH | 1 | — | |
| 67322L | MR462331 | HANDLE, FR DOOR OUTSIDE, LH | 1 | $59.51 | |
| 67322R | MB783844 | HANDLE, FR DOOR OUTSIDE, RH | 1 | — | |
| 67322R | MR462332 | HANDLE, FR DOOR OUTSIDE, RH | 1 | $59.51 | |
| 67326 | MB258708 | KNOB, FR DOOR INSIDE LOCK | 2 | $3.30 | |
| 67342L | MR180231 | ROD, FR DOOR INSIDE HANDLE, LH | 1 | $10.95 | |
| 67342R | MR180232 | ROD, FR DOOR INSIDE HANDLE, RH | 1 | $10.95 | |
| 67343L | MR230355 | ROD, FR DOOR INSIDE LOCK | 1 | $13.32 | |
| 67343R | MR230356 | ROD, FR DOOR INSIDE LOCK | 1 | $13.32 | |
| 67346L | MR180229 | ROD, FR DOOR OUTSIDE LOCK, LH | 1 | $6.51 | |
| 67346R | MR180230 | ROD, FR DOOR OUTSIDE LOCK, RH | 1 | $6.51 | |
| 67356 | 5715A285 | STRIKER, FR DOOR LATCH | 2 | $8.73 | |
| 67361L | MR230351 | LATCH, FR DOOR, LH | 1 | $120.62 | |
| 67361R | MR230352 | LATCH, FR DOOR, RH | 1 | $120.62 | |
| 67362L | MR419354 | HANDLE, FR DOOR INSIDE, LH | 1 | $22.94 | |
| 67362L | MR710454 | HANDLE, FR DOOR INSIDE, LH | 1 | $22.94 | |
| 67362R | MR419361 | HANDLE, FR DOOR INSIDE, RH | 1 | $22.94 | |
| 67362R | MR710456 | HANDLE, FR DOOR INSIDE, RH | 1 | $22.94 | |
| 67383 | MB632510 | SPRING PIN, FR DOOR LOCKING | 6x27 | 2 | $3.56 |
| 67385 | MB134382 | CUSHION, FR DOOR | 2 | $3.97 | |
| 67392 | MS770002 | BUSHING, FR DOOR LOCKING | 7x10 | 2 | $2.46 |
| 67393 | MS440502 | NUT, FUEL TANK | Washer assembled,6 | 4 | $0.92 |
| 67394 | MS480003 | GROMMET, FUEL FILLER LID PANEL | Screw,6 | 4 | $0.88 |
| 67395B | MU481161 | CLIP, RR DOOR LOCKING | 2 | $4.38 | |
| 67395C | MU481193 | CLIP, FR DOOR LOCKING | 6 | 1 | $0.70 |
| 67395D | MU481194 | CLIP, FR DOOR LOCKING | 6 | 1 | $2.87 |
| 67395E | MB590537 | CLIP, FR DOOR LOCKING | 6.5 | 1 | $2.96 |
| 67395F | MU481220 | HOLDER, RR DOOR LOCK | 2 | $3.83 | |
| 67397B | MU340020 | SCREW, FR DOOR LOCKING | Washer assembled(plus),6x12 | 6 | $4.24 |
| 67397B | MU340025 | SCREW, FR DOOR LOCKING | Washer assembled,6x12 | 6 | $2.66 |
| 67397C | MU000623 | SCREW, FR DOOR LOCKING | Machine(plus),8x22.5 | 4 | $4.24 |
| 67397C | MU340023 | SCREW, FR DOOR LOCKING | Washer assembled(plus),8x22.5 | 4 | $1.42 |
| 67397D | MF453046 | SCREW, FUEL LINE | Tapping,6x14 | 4 | $2.74 |
| 67397E | MF457292 | SCREW, FR DOOR LOCKING | Tapping,4x10 | 2 | $2.46 |
| 67398B | MS240042 | BOLT, RADIATOR | Washer assembled,6x20 | 4 | $0.82 |
| 67398C | MB321590 | Bolt | Washer assembled,6x10 | 4 | — |
| 67398C | MU240087 | BOLT | Washer assembled,6x10 | 4 | $1.38 |
