Front deck & insulator
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.

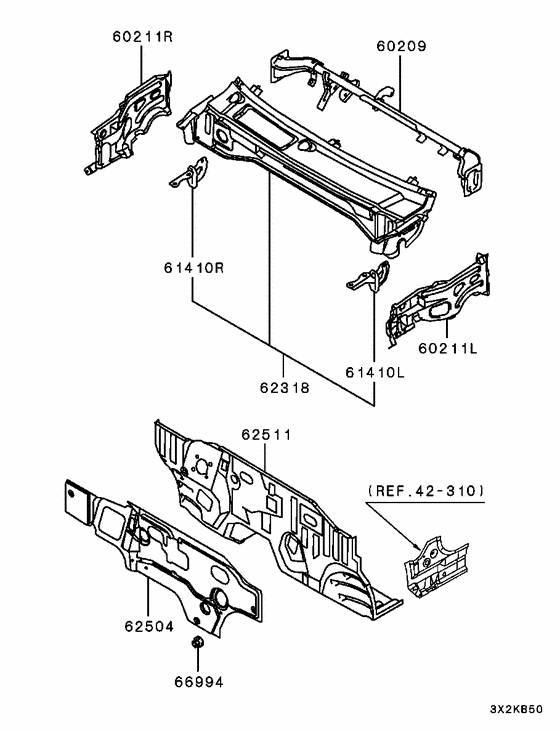

Diagram 7939190
Parts diagram group Front deck & insulator in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (16 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 60209 | MR208077 | CROSSMEMBER, FR DECK | 1 | $275.28 | |
| 60211L | MR208075 | FRAME, FR DECK, UPR OTR LH | 1 | $133.20 | |
| 60211L | MR208111 | FRAME, FR DECK, UPR OTR LH | 1 | $120.62 | |
| 60211L | MR325105 | FRAME, FR DECK, UPR OTR LH | 1 | $81.40 | |
| 60211L | MR325151 | FRAME, FR DECK, UPR OTR LH | 1 | $120.62 | |
| 60211R | MR208076 | FRAME, FR DECK, UPR OTR RH | 1 | $120.62 | |
| 60211R | MR208112 | FRAME, FR DECK, UPR OTR RH | 1 | $99.16 | |
| 60211R | 5230C080 | FRAME, FR DECK, UPR OTR RH | 1 | $81.40 | |
| 60211R | MR325152 | FRAME, FR DECK, UPR OTR RH | 1 | $120.62 | |
| 61410L | MR208073 | HINGE KIT, HOOD, LH | 1 | $35.52 | |
| 61410R | MR208074 | HINGE KIT, HOOD, RH | 1 | $35.52 | |
| 62318 | MR208071 | PANEL, COWL TOP | 1 | $614.43 | |
| 62504 | MR259721 | INSULATOR, DASH PANEL | 1 | — | |
| 62511 | MR208021 | DASH PANEL | 1 | $429.52 | |
| 62511 | MR208906 | DASH PANEL | 1 | $429.52 | |
| 66994 | MB157530 | CLIP, GEARSHIFT LINK | M6 | 3 | $1.07 |
