Front bumper & support
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.

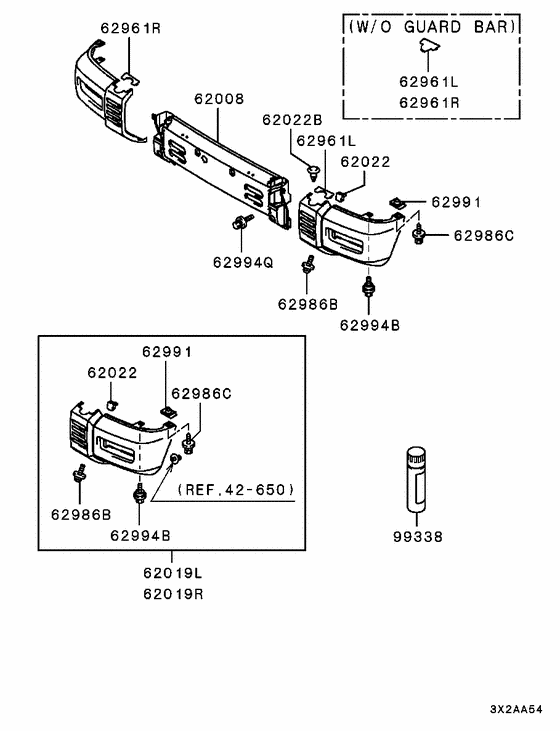

Diagram 7939182
Parts diagram group Front bumper & support in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (23 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 62008 | MR365145 | BUMPER, FR | 1 | $580.94 | |
| 62019L | MR208627 | BUMPER KIT, FR CORNER, LH | 1 | $155.40 | |
| 62019L | MR208671 | BUMPER KIT, FR CORNER, LH | 1 | $155.40 | |
| 62019R | MR208628 | BUMPER KIT, FR CORNER, RH | 1 | — | |
| 62019R | MR208672 | BUMPER KIT, FR CORNER, RH | 1 | $155.40 | |
| 62022 | MB567499 | CLIP, RR VIEW MIRROR | 8.9x11 | 4 | $1.17 |
| 62022B | MR710447 | CLIP, HEADLINING | 2 | $5.61 | |
| 62022B | MS470073 | CLIP, ENG AIR INTAKE LINE | 6.8x14.5 | 1 | $2.71 |
| 62986B | MS350146 | SCREW, FOG LAMP | Washer assembled,5x16 | 4 | $3.83 |
| 62986C | MS452358 | SCREW, FR MUD GUARD | Tapping washer assembled,6x25 | 2 | $2.20 |
| 62986C | MS452397 | SCREW, FR MUD GUARD | Tapping,6x20 | 2 | $2.20 |
| 62991 | MB481588 | GROMMET, FR BUMPER | Screw .,6 | 2 | $2.30 |
| 62994B | MB311707 | BOLT, RADIATOR GRILLE | Flange,6x14 | 2 | $4.51 |
| 62994Q | MS240129 | BOLT, FUEL TANK | Washer assembled,10x25 | 4 | $3.01 |
| 99338 | MZ101911 | TOUCH-UP PAINT | 1 | $10.36 | |
| 99338 | MZ101925 | TOUCH-UP PAINT | 1 | $10.36 | |
| 99338 | MZ101927 | TOUCH-UP PAINT | 1 | $9.58 | |
| 99338 | MZ101943 | TOUCH-UP PAINT | 1 | $10.36 | |
| 99338 | MZ101952 | TOUCH-UP PAINT | 1 | — | |
| 99338 | MZ101971 | TOUCH-UP PAINT (Only within Japan) | Поставка только по Японии | 1 | $10.36 |
| 99338 | MZ101979 | TOUCH-UP PAINT | 1 | $10.36 | |
| 99338 | MZ101992 | TOUCH-UP PAINT | 1 | $10.36 | |
| 99338 | MZ103004 | TOUCH-UP PAINT | 1 | — |
