Floor
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.

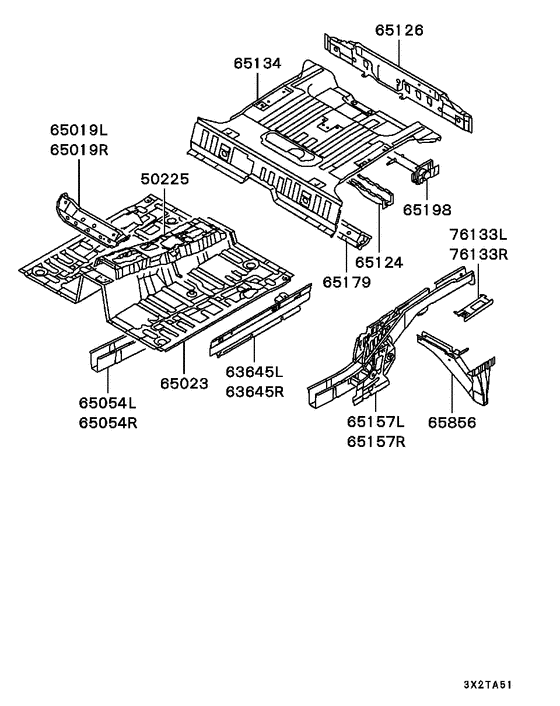

Diagram 7939196
Parts diagram group Floor in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (22 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 50225 | MR208904 | BRACKET, PARKING BRAKE LEVER | 1 | $140.60 | |
| 63645L | MR208003 | SIDE SILL, FR FLOOR, INR LH | 1 | $86.58 | |
| 63645R | MR208004 | SIDE SILL, FR FLOOR, INR RH | 1 | $86.58 | |
| 65019L | MR208001 | CROSSMEMBER, FR FLOOR, LH | 1 | $119.14 | |
| 65019R | MR208002 | CROSSMEMBER, FR FLOOR, RH | 1 | $119.14 | |
| 65023 | MR208000 | FLOOR, FR | 1 | $928.93 | |
| 65054L | MR208007 | SIDEMEMBER, FR FLOOR, LH | 1 | $330.51 | |
| 65054R | MR208008 | SIDEMEMBER, FR FLOOR, RH | 1 | $330.51 | |
| 65124 | MR208014 | CROSSMEMBER, RR FLOOR | 1 | $106.56 | |
| 65126 | MR208010 | CROSSMEMBER, RR FLOOR RR END | 1 | $259.00 | |
| 65134 | MR208009 | FLOOR, RR | 1 | $805.17 | |
| 65157L | MR208011 | SIDEMEMBER, RR FLOOR, LH | 1 | — | |
| 65157L | MR208961 | SIDEMEMBER, RR FLOOR, LH | 1 | — | |
| 65157L | MR325191 | SIDEMEMBER, RR FLOOR, LH | 1 | — | |
| 65157R | MR208012 | SIDEMEMBER, RR FLOOR, RH | 1 | — | |
| 65157R | MR208962 | SIDEMEMBER, RR FLOOR, RH | 1 | — | |
| 65179 | MR208013 | CROSSMEMBER, RR FLOOR, FR | 1 | $63.64 | |
| 65198 | MR208015 | CROSSMEMBER, RR FLOOR, LWR | 1 | $235.32 | |
| 65198 | MR325192 | CROSSMEMBER, RR FLOOR, LWR | 1 | — | |
| 65856 | MR208018 | STAY, RR FLOOR | 1 | $205.72 | |
| 76133L | MR208019 | REINFORCEMENT, RR SEAT BELT ANCHOR, LH | 1 | $20.72 | |
| 76133R | MR208020 | REINFORCEMENT, RR SEAT BELT ANCHOR, RH | 1 | $20.72 |
