Fender & front end cover
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.

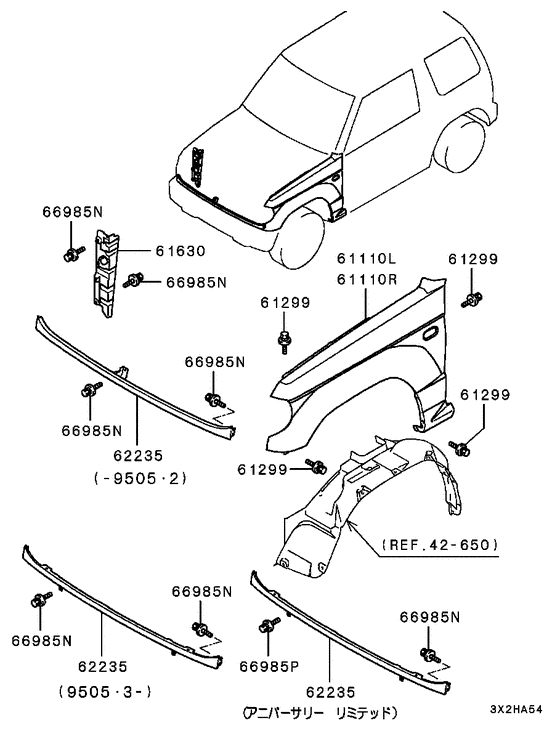

Diagram 7939188
Parts diagram group Fender & front end cover in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (9 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 61110L | MR208093 | FENDER, FR LH | 1 | $556.19 | |
| 61110R | MR208094 | FENDER, FR RH | 1 | $556.19 | |
| 61299 | MS100222 | BOLT, RESISTOR | Flange,6x14 | 14 | $0.64 |
| 61630 | MR208102 | PANEL, FR END COVER | 1 | $28.12 | |
| 62235 | MR208098 | PANEL, RADIATOR GRILLE FILLER | 1 | $129.50 | |
| 62235 | MR208909 | PANEL, RADIATOR GRILLE FILLER | 1 | $101.38 | |
| 66985N | MF243623 | BOLT, FLYWHEEL HOUSING | Washer assembled,6x14 | 11 | $2.74 |
| 66985N | MS240121 | BOLT, CONNROD | Washer assembled,6x16 | 9 | $1.31 |
| 66985P | MS240121 | BOLT, CONNROD | Washer assembled,6x16 | 2 | $1.31 |
