Back door panel & glass
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.

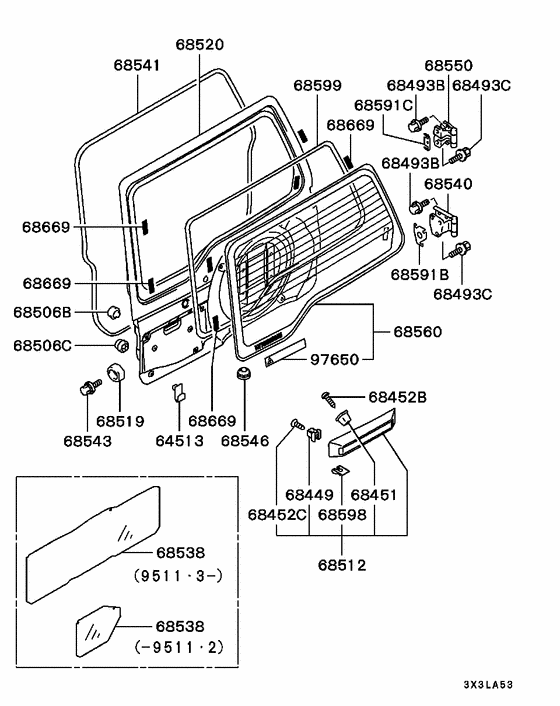

Diagram 7939206
Parts diagram group Back door panel & glass in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (37 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 64513 | MB537105 | BRACKET, LICENSE PLATE LAMP | 2 | $4.79 | |
| 68449 | MB645994 | CLIP, QTR WINDOW | 2 | $2.15 | |
| 68451 | MB196738 | GROMMET, ENG IDLE CONTROL EQUIP | 5 | 2 | $2.32 |
| 68451 | MS480002 | GROMMET, HOOD LOCKING | Screw,5 | 2 | $1.19 |
| 68452B | MF453093 | SCREW, FUEL FILLER LID LOCKING | Tapping,5x16 | 2 | $0.92 |
| 68452C | MF457521 | SCREW, STEERING WHEEL | Tapping,3x8 | 2 | $3.37 |
| 68493B | MU140017 | BOLT, FR DOOR HINGE | Flange,8x20 | 6 | $0.74 |
| 68493C | MB142761 | BOLT, FR SUSP STABILIZER | Washer assembled,8x25 | 5 | $1.48 |
| 68493C | MU140017 | BOLT, FR DOOR HINGE | Flange,8x20 | 5 | $0.74 |
| 68506B | MB019730 | CUSHION, FR DOOR | 1 | $1.72 | |
| 68506C | MB112092 | DAMPER, HOOD | 1 | — | |
| 68506C | MB270607 | DAMPER, HOOD | Rubber | 1 | $2.44 |
| 68512 | MR155307 | GARNISH, BACK DOOR LICENSE PLATE | 1 | $53.28 | |
| 68519 | MB331387 | DAMPER, TAILGATE MALE | 1 | $7.11 | |
| 68520 | MR273987 | PANEL, BACK DOOR | 1 | $816.82 | |
| 68538 | MR156229 | FILM, BACK DOOR WATERPROOF | 1 | $5.77 | |
| 68538 | MR259978 | FILM, BACK DOOR WATERPROOF | 1 | $9.18 | |
| 68540 | MR106978 | HINGE, BACK DOOR, LWR | 1 | $112.48 | |
| 68541 | MR180084 | WEATHERSTRIP, BACK DOOR OPENING | 1 | $142.82 | |
| 68541 | MR180085 | WEATHERSTRIP, BACK DOOR OPENING | 1 | $142.82 | |
| 68543 | MF140643 | BOLT, AIR CLEANER | Flange,8x16 | 1 | $2.07 |
| 68546 | MU670023 | PLUG,CHASSIS FRAME | Rubber,20 | 2 | $4.24 |
| 68550 | MB615320 | HINGE, BACK DOOR, UPR | 1 | $102.12 | |
| 68560 | MR155284 | GLASS, BACK DOOR WINDOW | Defog,asahi | 1 | $544.54 |
| 68560 | MR274084 | GLASS, BACK DOOR WINDOW | Defog,asahi | 1 | — |
| 68560 | MR380448 | GLASS, BACK DOOR WINDOW | Defog,asahi | 1 | $481.94 |
| 68591B | MR180912 | SHIM, BACK DOOR HINGE | T=0.5 | 1 | $3.40 |
| 68591B | MR180913 | SHIM, BACK DOOR HINGE | T=1.0 | 1 | $3.40 |
| 68591C | MR180910 | SHIM, BACK DOOR HINGE | T=0.5 | 1 | $4.59 |
| 68591C | MR180911 | SHIM, BACK DOOR HINGE | T=1.0 | 1 | $4.59 |
| 68591C | MR313340 | SHIM, BACK DOOR HINGE | T=1.4 | 1 | $4.59 |
| 68598 | MB696505 | NUT, BACK DOOR GARNISH | 4 | $2.74 | |
| 68598 | MR300323 | NUT, BACK DOOR GARNISH | Speed,4 | 4 | $1.18 |
| 68599 | MR155294 | DAM, BACK DOOR | 1 | $25.99 | |
| 68669 | MB881195 | FASTENER, WINDSHIELD | 8 | — | |
| 68669 | MB344738 | FASTENER, BACK DOOR | 8 | $3.00 | |
| 97650 | MR155402 | DECAL, THREE-DIA | 1 | $9.99 |
