Back door locking
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.

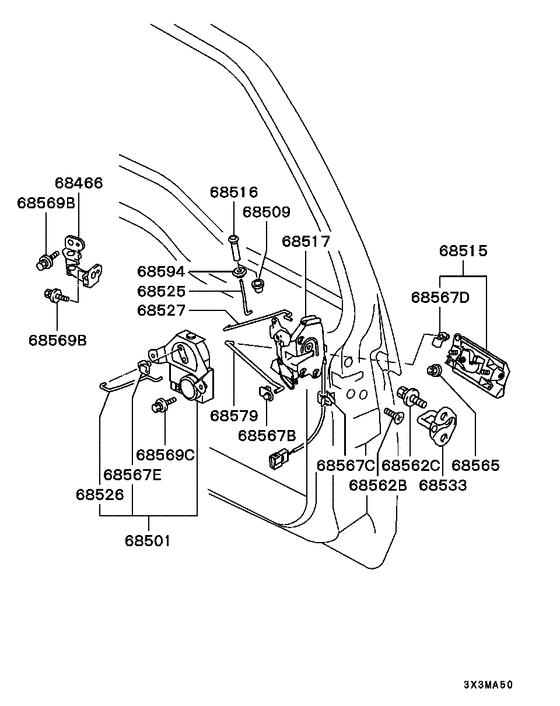

Diagram 7939207
Parts diagram group Back door locking in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (20 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 68466 | MR181328 | STOPPER, BACK DOOR SAFETY | 1 | — | |
| 68501 | MR181078 | ACTUATOR, BACK DOOR LOCK | 1 | $224.96 | |
| 68515 | MB669338 | HANDLE, BACK DOOR OUTSIDE | 1 | — | |
| 68515 | MR230032 | HANDLE, BACK DOOR OUTSIDE | 1 | $72.97 | |
| 68517 | MB669381 | LATCH, BACK DOOR | 1 | $67.45 | |
| 68526 | MR157997 | ROD, BACK DOOR LOCK ACTUATOR | 1 | $8.14 | |
| 68527 | MR180220 | ROD, BACK DOOR OUTSIDE LOCK | 1 | $8.14 | |
| 68533 | MB669315 | STRIKER, BACK DOOR LATCH | 1 | $20.52 | |
| 68562B | MB632457 | SCREW, FR DOOR LOCKING | Machine,6x8 | 3 | $3.26 |
| 68562C | MU340023 | SCREW, FR DOOR LOCKING | Washer assembled(plus),8x22.5 | 2 | $1.42 |
| 68565 | MS440502 | NUT, FUEL TANK | Washer assembled,6 | 2 | $0.92 |
| 68567B | MB590578 | CLIP, RR DOOR LOCKING | 5.0 | 1 | $4.10 |
| 68567C | MU481009 | CLIP, WINDSHIELD WASHER | 8 | 1 | $2.60 |
| 68567D | MU481093 | CLIP, BACK DOOR LOCKING | 8 | 1 | $0.78 |
| 68567E | MU481193 | CLIP, FR DOOR LOCKING | 6 | 1 | $0.70 |
| 68569B | MS240586 | BOLT, BODY LOOSE PANEL | Washer assembled,8x25 | 2 | $4.92 |
| 68569C | MB321590 | Bolt | Washer assembled,6x10 | 2 | — |
| 68569C | MU240087 | BOLT | Washer assembled,6x10 | 2 | $1.38 |
| 68579 | MR180219 | ROD, BACK DOOR OUTSIDE HANDLE | 1 | $8.14 | |
| 68594 | MU670021 | PLUG, FLOOR | Rubber,12 | 1 | $3.83 |
