Water pump
This EPC family contains 2 catalog variations for the VIN-confirmed Pajero Mini H56A catalog.

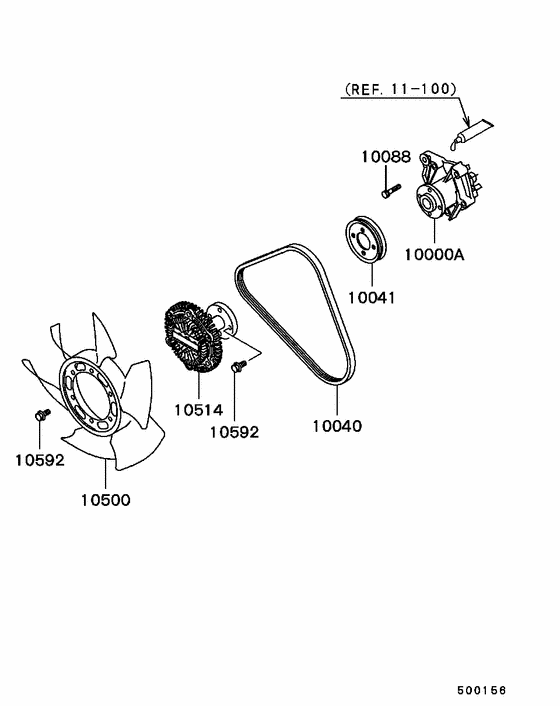

Diagram 7939066
Parts diagram group Water pump in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (10 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 10000A | MD317677 | WATER PUMP ASSY | 1 | $328.54 | |
| 10040 | MD303017 | BELT, ALTERNATOR & OTHERS | 695 | 1 | — |
| 10040 | 1340A060 | BELT, ALTERNATOR & OTHERS | 1 | $17.06 | |
| 10041 | MD317676 | PULLEY, WATER PUMP | Ribbed | 1 | $43.09 |
| 10088 | MF241231 | BOLT, ENG FR CASE | Washer assembled,6x30 | 5 | $2.87 |
| 10500 | MD306460 | FAN, COOLING | 300x6 | 1 | $71.82 |
| 10514 | MD317970 | CLUTCH, COOLING FAN | 1 | — | |
| 10514 | MD347309 | CLUTCH, COOLING FAN | 1 | $339.87 | |
| 10514 | MD347309 | CLUTCH, COOLING FAN | 1 | $339.87 | |
| 10592 | MF140207 | BOLT, ROCKER COVER | Flange,6x20 | 7 | $0.66 |
Diagram 7939068
Parts diagram group Water pump in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (2 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 10040 | MD303017 | BELT, ALTERNATOR & OTHERS | 695 | 1 | — |
| 10040 | 1340A060 | BELT, ALTERNATOR & OTHERS | 1 | $17.06 |
