Water pipe & thermostat
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.
Diagram 7939070

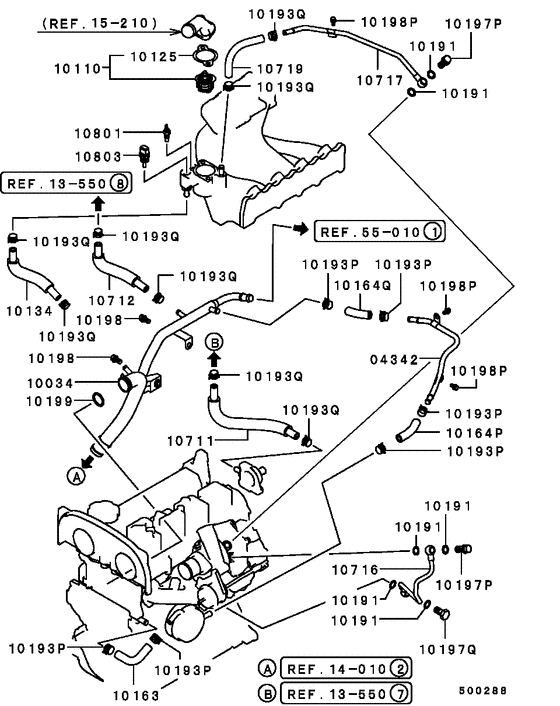

Parts diagram group Water pipe & thermostat in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (30 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 04342 | MD323373 | PIPE, ENG OIL COOLER WATER OUTLET | 1 | $24.42 | |
| 10034 | MD323254 | PIPE, WATER PUMP INLET | 1 | $101.38 | |
| 10110 | MD972910 | THERMOSTAT KIT | 82 | 1 | — |
| 10110 | 1305A025 | THERMOSTAT | 1 | $35.65 | |
| 10110 | MD972911 | THERMOSTAT KIT | 88 | 1 | — |
| 10110 | 1305A026 | THERMOSTAT KIT | 88 | 1 | — |
| 10125 | MD107395 | GASKET, THERMOSTAT WATER HOSE FITTING | 1 | — | |
| 10125 | MN115087 | GASKET, COOLING WATER INLET HOSE FITTING | 1 | $3.97 | |
| 10134 | MD314163 | HOSE, THROTTLE BODY WATER RETURN | 8x250 | 1 | $14.36 |
| 10163 | MD086605 | HOSE, THROTTLE BODY WATER RETURN | 1 | $7.39 | |
| 10164P | MD305785 | HOSE, ENG OIL COOLER WATER FEED | 9x75 | 1 | $7.39 |
| 10164Q | MD122589 | HOSE, COOLING WATER LINE | 9x60 | 1 | $5.88 |
| 10191 | MF660064 | GASKET, CYLINDER BLOCK | D=12 | 6 | $0.49 |
| 10193P | MS660165 | CLIP, ROCKER COVER | D=14.8 | 6 | $1.66 |
| 10193Q | MS660164 | CLAMP, T/M OIL COOLER LINE | D=13.1 | 8 | $1.01 |
| 10197P | MD199646 | EYEBOLT, COOLING WATER LINE | 12x23 | 2 | $7.11 |
| 10197Q | MF650113 | EYEBOLT, ENG OIL LINE | 12x23 | 1 | — |
| 10197Q | MS650013 | EYEBOLT, FUEL LINE | 12x23 | 1 | $3.72 |
| 10198 | MF140023 | BOLT, ACCEL CABLE SUPPORT | Flange,8x16 | 2 | $0.47 |
| 10198P | MF140202 | BOLT, FLANGE (6x10) | Flange,6x10 | 3 | $1.42 |
| 10199 | MD008434 | O-RING, COOLING WATER LINE | 28.6 | 1 | $6.43 |
| 10711 | MD319128 | HOSE, THROTTLE BODY WATER FEED | 8x290 | 1 | $17.76 |
| 10712 | MD314163 | HOSE, THROTTLE BODY WATER RETURN | 8x250 | 1 | $14.36 |
| 10716 | MD300551 | PIPE, T/C WATER RETURN | 1 | $61.56 | |
| 10717 | MD314160 | PIPE, T/C WATER FEED | 1 | $44.40 | |
| 10719 | MD341681 | HOSE, T/C WATER FEED | 1 | $15.54 | |
| 10719 | MD342011 | HOSE, T/C WATER FEED | 1 | $14.50 | |
| 10801 | MD091056 | GAUGE UNIT, WATER TEMPERATURE | 1 | $31.92 | |
| 10803 | MD177572 | SENSOR UNIT, WATER TEMPERATURE | 1 | — | |
| 10803 | 1308A012 | SENSOR UNIT, WATER TEMPERATURE | 1 | $29.37 |
