Rocker cover
This EPC family contains 2 catalog variations for the VIN-confirmed Pajero Mini H56A catalog.

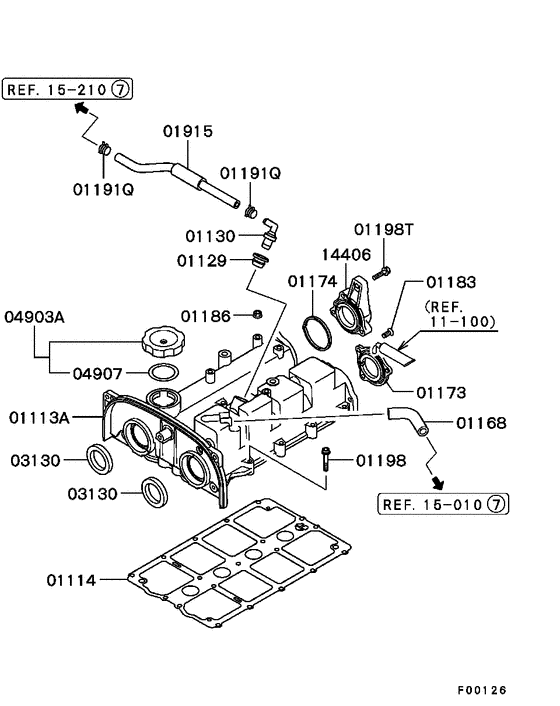

Diagram 7939040
Parts diagram group Rocker cover in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (22 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 01113A | MD318599 | HOUSING ASSY, CAMSHAFT | 1 | $819.73 | |
| 01114 | MD302090 | GASKET, CAMSHAFT HOUSING | 1 | $44.46 | |
| 01129 | MD179909 | GASKET, PCV VALVE | 1 | — | |
| 01129 | 1057A033 | GASKET, PCV VALVE | 1 | $5.47 | |
| 01130 | MD194136 | VALVE, PCV | 1 | $16.42 | |
| 01168 | MD315659 | HOSE, ROCKER COVER BREATHER | 1 | $28.12 | |
| 01173 | MD145882 | COVER, CAMSHAFT HOUSING SIDE | 1 | — | |
| 01173 | MD348068 | COVER, CAMSHAFT HOUSING SIDE | 1 | $17.76 | |
| 01174 | MD133922 | GASKET, CAMSHAFT HOUSING SIDE COVER | 1 | $9.71 | |
| 01174 | MD133922 | GASKET, CAMSHAFT HOUSING SIDE COVER | 2 | $9.71 | |
| 01183 | MF201692 | SCREW, RR SEAT | Machine,6x16 | 3 | $2.81 |
| 01186 | MD143987 | NUT, ROCKER COVER | Flange,6 | 2 | $1.92 |
| 01191Q | MS660225 | CLIP, ROCKER COVER | 12.5 | 2 | $0.88 |
| 01198 | MD123029 | BOLT, ROCKER COVER | Flange,6x35 | 17 | $5.18 |
| 01198 | MF244826 | BOLT | Washer assembled,6x20 | 6 | $0.92 |
| 01198T | MF140209 | BOLT, ROCKER COVER | Flange,6x25 | 3 | $0.45 |
| 01915 | MD318601 | HOSE, ROCKER COVER PCV | 1 | $9.03 | |
| 03130 | MD153103 | OIL SEAL, CAMSHAFT | 2 | — | |
| 03130 | MD372536 | OIL SEAL, CAMSHAFT | 2 | $7.45 | |
| 04903A | 1250A015 | CAP ASSY, ENG OIL FILLER | 1 | $10.80 | |
| 04907 | MD311638 | GASKET, ENG OIL FILLER CAP | 1 | $1.42 | |
| 14406 | MD306232 | BRACKET, DISTRIBUTOR | 1 | $66.60 |

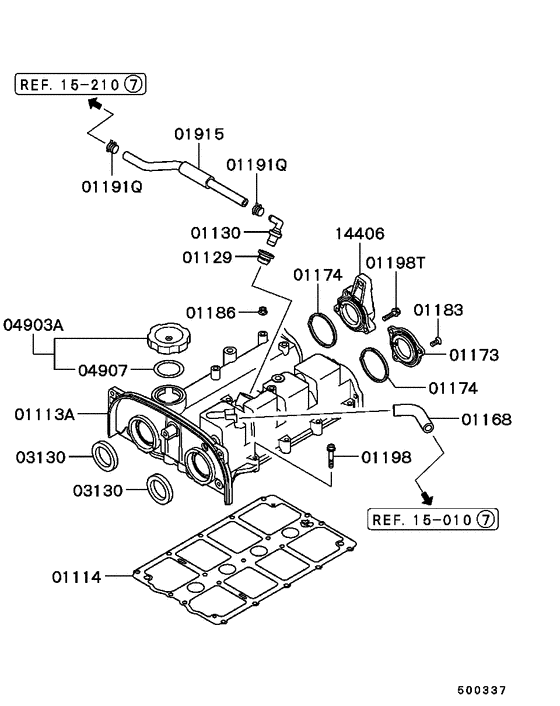

Diagram 7939041
Parts diagram group Rocker cover in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (22 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 01113A | MD318599 | HOUSING ASSY, CAMSHAFT | 1 | $819.73 | |
| 01114 | MD302090 | GASKET, CAMSHAFT HOUSING | 1 | $44.46 | |
| 01129 | MD179909 | GASKET, PCV VALVE | 1 | — | |
| 01129 | 1057A033 | GASKET, PCV VALVE | 1 | $5.47 | |
| 01130 | MD194136 | VALVE, PCV | 1 | $16.42 | |
| 01168 | MD315659 | HOSE, ROCKER COVER BREATHER | 1 | $28.12 | |
| 01173 | MD145882 | COVER, CAMSHAFT HOUSING SIDE | 1 | — | |
| 01173 | MD348068 | COVER, CAMSHAFT HOUSING SIDE | 1 | $17.76 | |
| 01174 | MD133922 | GASKET, CAMSHAFT HOUSING SIDE COVER | 1 | $9.71 | |
| 01174 | MD133922 | GASKET, CAMSHAFT HOUSING SIDE COVER | 2 | $9.71 | |
| 01183 | MF201692 | SCREW, RR SEAT | Machine,6x16 | 3 | $2.81 |
| 01186 | MD143987 | NUT, ROCKER COVER | Flange,6 | 2 | $1.92 |
| 01191Q | MS660225 | CLIP, ROCKER COVER | 12.5 | 2 | $0.88 |
| 01198 | MD123029 | BOLT, ROCKER COVER | Flange,6x35 | 17 | $5.18 |
| 01198 | MF244826 | BOLT | Washer assembled,6x20 | 6 | $0.92 |
| 01198T | MF140209 | BOLT, ROCKER COVER | Flange,6x25 | 3 | $0.45 |
| 01915 | MD318601 | HOSE, ROCKER COVER PCV | 1 | $9.03 | |
| 03130 | MD153103 | OIL SEAL, CAMSHAFT | 2 | — | |
| 03130 | MD372536 | OIL SEAL, CAMSHAFT | 2 | $7.45 | |
| 04903A | 1250A015 | CAP ASSY, ENG OIL FILLER | 1 | $10.80 | |
| 04907 | MD311638 | GASKET, ENG OIL FILLER CAP | 1 | $1.42 | |
| 14406 | MD306232 | BRACKET, DISTRIBUTOR | 1 | $66.60 |
