Radiator,hose & condenser tank
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.
Diagram 7939064

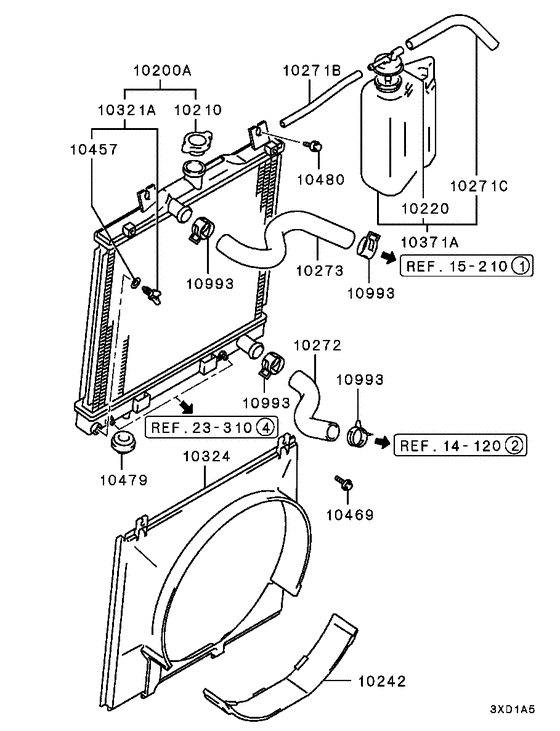

Parts diagram group Radiator,hose & condenser tank in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (20 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 10200A | MR187173 | RADIATOR ASSY | 1 | $1354.08 | |
| 10200A | MR385835 | RADIATOR ASSY | 1 | — | |
| 10210 | MB957124 | CAP, RADIATOR | 1 | — | |
| 10210 | MR481218 | CAP, RADIATOR | 1 | $20.16 | |
| 10220 | MN161265 | CAP, RADIATOR CONDENSER TANK | 1 | $7.04 | |
| 10242 | MR187178 | COVER, RADIATOR UNDER | 1 | $10.40 | |
| 10271B | MS600623 | HOSE, RADIATOR CONDENSER TANK | 7x2000 | 1 | $9.96 |
| 10271C | MS610718 | TUBE, FUEL TANK | Soft vinyl,12x2000 | 1 | $84.82 |
| 10272 | MR187175 | HOSE, RADIATOR, LWR | 1 | $24.67 | |
| 10273 | MR187174 | HOSE, RADIATOR, UPR | 1 | $38.30 | |
| 10321A | MB860977 | PLUG ASSY, RADIATOR | 1 | $6.84 | |
| 10324 | MR127836 | SHROUD, COOLING FAN | 1 | $54.72 | |
| 10371A | MR187176 | TANK ASSY, RADIATOR CONDENSER | 1 | — | |
| 10457 | MB845093 | O-RING, RADIATOR | 1 | $2.07 | |
| 10469 | MF243624 | BOLT | Washer assembled,6x16 | 2 | $0.82 |
| 10479 | MB605143 | INSULATOR, RADIATOR SUPPORT, LWR | 2 | — | |
| 10480 | MD300358 | BOLT, AIR CLEANER | Washer assembled,6x30 | 2 | $1.46 |
| 10993 | MB222298 | CLIP, RADIATOR PIPING | D=31 | 4 | — |
| 10993 | MR404537 | CLIP, RADIATOR PIPING | D=31 | 4 | $2.52 |
| 10993 | MR404537 | CLIP, RADIATOR PIPING | D=31 | 4 | $2.52 |
