Piston & crankshaft
This EPC family contains 3 catalog variations for the VIN-confirmed Pajero Mini H56A catalog.

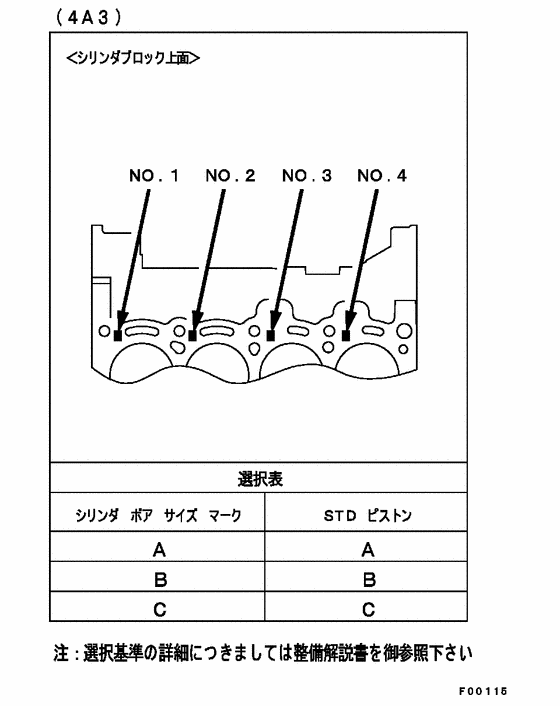

Diagram 7939048
Parts diagram group Piston & crankshaft in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list
No part rows were exposed on the catalog page at scrape time — use the live diagram link above.

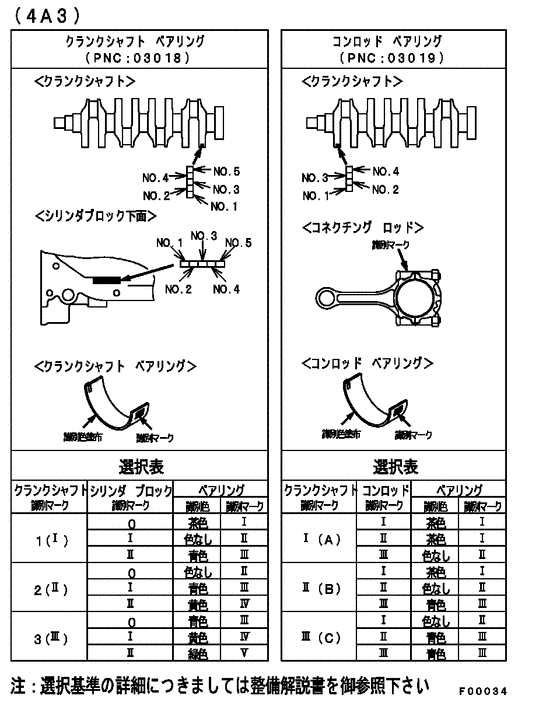

Diagram 7939049
Parts diagram group Piston & crankshaft in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list
No part rows were exposed on the catalog page at scrape time — use the live diagram link above.

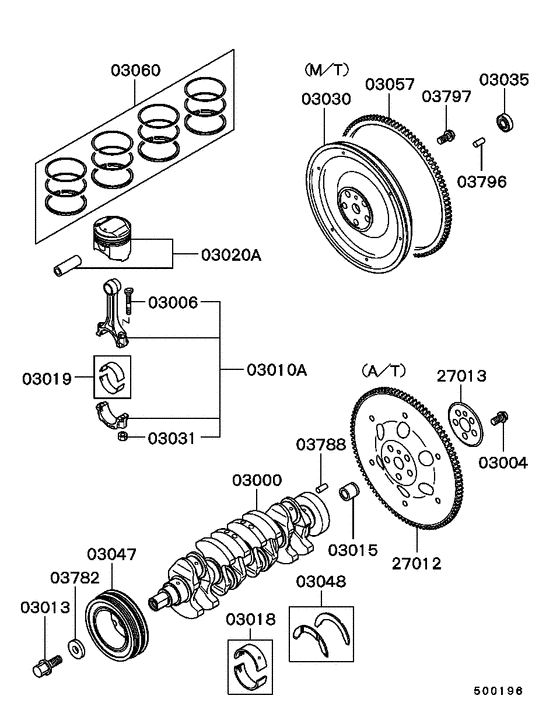

Diagram 7939050
Parts diagram group Piston & crankshaft in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (31 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 03000 | MD195434 | CRANKSHAFT | 1 | $1497.60 | |
| 03004 | MD198924 | BOLT, FLYWHEEL | Flange,10x19.5 | 5 | $3.97 |
| 03006 | MD179705 | BOLT, CONNROD | 7x43.7 | 8 | $2.85 |
| 03010A | MD305055 | CONNECTING ROD ASSY | 4 | $108.76 | |
| 03013 | MD185343 | CENTER BOLT, CRANKSHAFT PULLEY | 12x30 | 1 | $6.98 |
| 03015 | MR111384 | BUSHING, CRANKSHAFT | 1 | $15.54 | |
| 03018 | MD315909 | BEARING, CRANKSHAFT (BROWN) | Plain,std 1 | 5 | $15.68 |
| 03018 | MD315910 | BEARING, CRANKSHAFT (COLORLESS) | Plain,std 2 | 1 | $25.31 |
| 03018 | MD315911 | BEARING, CRANKSHAFT (BLUE) | Plain,std 3 | 1 | $13.81 |
| 03018 | MD315912 | BEARING, CRANKSHAFT (YELLOW) | Plain,std 4 | 1 | $36.94 |
| 03018 | MD315913 | BEARING, CRANKSHAFT (GREEN) | Plain,std 5 | 1 | $34.88 |
| 03019 | MD315937 | BEARING, CONNROD (BROWN) | Plain,std 1 | 4 | $11.23 |
| 03019 | MD315938 | BEARING, CONNROD (COLORLESS) | Plain,std 2 | 1 | $11.80 |
| 03019 | MD315939 | BEARING, CONNROD (BLUE) | Plain,std 3 | 1 | $30.78 |
| 03020A | MD318089 | PISTON & PIN ASSY | Std a | 4 | — |
| 03020A | MD318090 | PISTON & PIN ASSY | Std b | 1 | — |
| 03020A | MD318091 | PISTON & PIN ASSY | Std c | 1 | $80.66 |
| 03020A | MD325056 | PISTON & PIN ASSY | O/size 0.50 | 1 | — |
| 03020A | MD325057 | PISTON & PIN ASSY | O/size 1.00 | 1 | — |
| 03031 | MD195747 | NUT, CONNROD | 7 | 8 | $1.17 |
| 03047 | MD315127 | PULLEY, CRANKSHAFT DAMPER | Ribbed | 1 | — |
| 03048 | MD198954 | THRUST BEARING SET, CRANKSHAFT | Plain | 1 | $4.49 |
| 03060 | MD301870 | RING SET, PISTON | Std | 1 | $271.75 |
| 03060 | MD301872 | RING SET, PISTON | O/size 0.50 | 1 | — |
| 03060 | MD301874 | RING SET, PISTON | O/size 1.00 | 1 | $236.66 |
| 03782 | MD016641 | WASHER, CRANKSHAFT PULLEY | Plain,12.5 | 1 | — |
| 03788 | MF472403 | PIN, CYLINDER BLOCK | Dowel,6x14 | 1 | $2.79 |
| 03797 | MD198924 | BOLT, FLYWHEEL | Flange,10x19.5 | 5 | $3.97 |
| 27012 | MR165489 | PLATE, A/T DRIVE | 1 | — | |
| 27013 | MR110230 | PLATE, A/T DRIVE PLATE ADAPTER | 1 | $11.40 | |
| 27013 | MR410267 | PLATE, A/T DRIVE PLATE ADAPTER | 1 | $7.84 |
