Oil pump & oil filter
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.

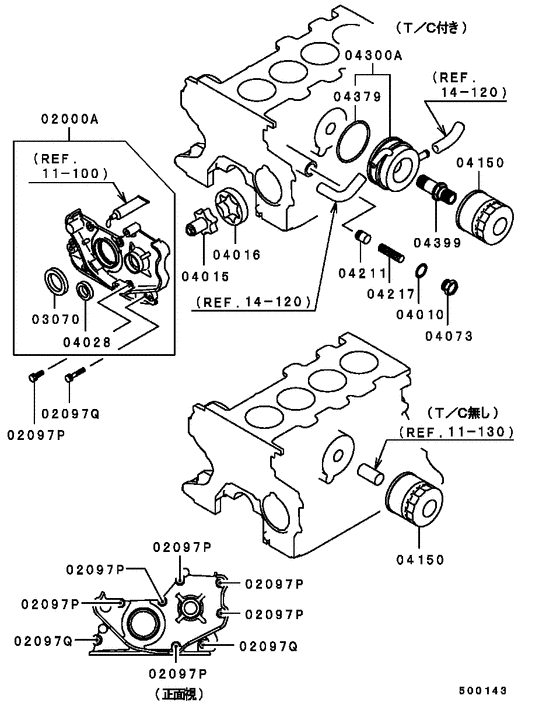

Diagram 7939056
Parts diagram group Oil pump & oil filter in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (21 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 02000A | MD199397 | CASE ASSY, CYLINDER BLOCK, FR | 1 | $144.30 | |
| 02000A | MD333237 | CASE ASSY, CYLINDER BLOCK, FR | 1 | $124.27 | |
| 02097P | MF241226 | BOLT, CYLINDER HEAD | Washer assembled,6x18 | 6 | $0.92 |
| 02097Q | MF241231 | BOLT, ENG FR CASE | Washer assembled,6x30 | 2 | $2.87 |
| 03070 | MD115245 | OIL SEAL, CRANKSHAFT, FR | 1 | — | |
| 03070 | 1064A052 | OIL SEAL, CRANKSHAFT, FR | 1 | $11.33 | |
| 03070 | MD329824 | OIL SEAL, CRANKSHAFT, FR | 1 | — | |
| 03070 | 1064A052 | OIL SEAL, CRANKSHAFT, FR | 1 | $11.33 | |
| 04010 | MD000312 | GASKET, PLUG | D=18.2 | 1 | $1.37 |
| 04015 | MD301078 | GEAR, ENG OIL PUMP DRIVE | 1 | $66.35 | |
| 04016 | MD301081 | GEAR, ENG OIL PUMP DRIVEN | 1 | $51.30 | |
| 04028 | MD168057 | OIL SEAL, ENG OIL PUMP DRIVE GEAR SHAFT | 1 | $9.17 | |
| 04073 | MD001404 | PLUG, CYLINDER HEAD | Screw,d=18 | 1 | $4.23 |
| 04150 | MD134953 | Oil Filter | Cartridge type | 1 | — |
| 04150 | 1230A040 | Oil Filter | Spin-on type | 1 | $9.67 |
| 04211 | MD001402 | PLUNGER, OIL FILTER BRACKET RELIEF | 1 | $6.84 | |
| 04217 | MD050299 | SPRING, ENG OIL RELIEF PLUNGER | 1 | $0.84 | |
| 04300A | MD196302 | OIL COOLER ASSY, ENG | 1 | — | |
| 04379 | MD620908 | O-RING, ENG OIL COOLER INR | 1 | — | |
| 04379 | 1240A125 | O-RING, ENG OIL COOLER INR | 1 | $4.21 | |
| 04399 | MD181099 | BOLT, ENG OIL COOLER | 20x40-22 | 1 | $24.42 |
