Liquid gasket
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.

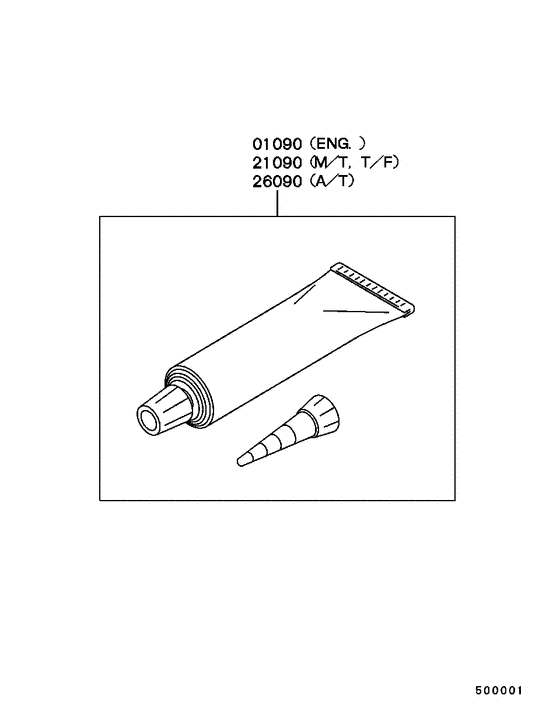

Diagram 7939038
Parts diagram group Liquid gasket in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (7 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 01090 | 1000A923 | LIQUID GASKET, ENG | 1 | — | |
| 01090 | MD970389 | LIQUID GASKET, ENG | Tb1207f,100g | 1 | — |
| 01090 | 1000A992 | LIQUID GASKET, ENG | Tb1207f,150g | 1 | — |
| 01090 | MZ100191 | PACKING, SEAL | 1 | — | |
| 21090 | MD997740 | LIQUID GASKET, M/T | Tb1216,120g | 1 | — |
| 21090 | MZ100388EX | LIQUID GASKETMT | 1 | — | |
| 26090 | MD974421 | LIQUID GASKET, A/T | Tb1281b,150g | 1 | — |
