Inlet manifold
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.

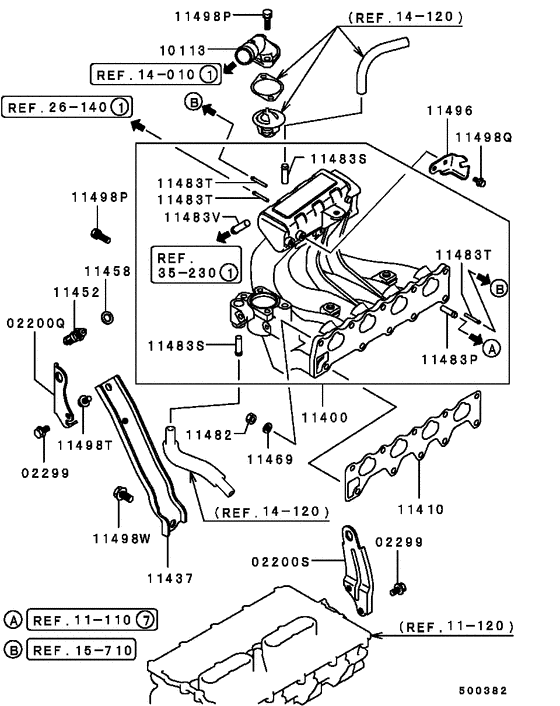

Diagram 7939073
Parts diagram group Inlet manifold in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (20 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 02200Q | MD329477 | ENGINE HANGER | 1 | $20.72 | |
| 02200S | MD193799 | ENGINE HANGER | 1 | $9.77 | |
| 02299 | MF140023 | BOLT, ACCEL CABLE SUPPORT | Flange,8x16 | 3 | $0.47 |
| 10113 | MD315331 | FITTING, COOLING WATER OUTLET HOSE | 1 | $52.67 | |
| 11400 | MR314010 | MANIFOLD, INLET | 1 | $410.59 | |
| 11410 | MD199682 | GASKET, INLET MANIFOLD | 1 | $21.61 | |
| 11437 | MD316514 | STAY, INLET MANIFOLD | 1 | $17.02 | |
| 11452 | MD326170 | SENSOR, SURGE TANK AIR TEMPERATURE | 1 | $24.47 | |
| 11458 | MF660064 | GASKET, CYLINDER BLOCK | D=12 | 1 | $0.49 |
| 11469 | MF450405 | WASHER, CYLINDER HEAD | Spring,8 | 2 | $0.35 |
| 11482 | MF430005 | NUT, ROCKER COVER | 8 | 2 | $0.82 |
| 11483P | MD024599 | NIPPLE, ROCKER COVER | 8 | 1 | $5.03 |
| 11483S | MD177542 | NIPPLE, INLET MANIFOLD | 8.8 | 2 | $6.22 |
| 11483T | MD141670 | NIPPLE, INLET MANIFOLD | 4 | 3 | $6.22 |
| 11483V | MB618372 | NIPPLE, INLET MANIFOLD | 9.9 | 1 | $8.14 |
| 11496 | MD316816 | BRACKET, INLET MANIFOLD | 1 | $8.58 | |
| 11498P | MF240055 | BOLT, CYLINDER HEAD | Washer assembled,8x25 | 10 | $1.21 |
| 11498Q | MF140203 | BOLT, ACCEL CABLE SUPPORT | Flange,6x12 | 2 | $0.64 |
| 11498T | MF140023 | BOLT, ACCEL CABLE SUPPORT | Flange,8x16 | 1 | $0.47 |
| 11498W | MF140058 | BOLT, GEARSHIFT LINK | Flange,10x20 | 1 | $1.44 |
