Injector & throttle body
This EPC family contains 2 catalog variations for the VIN-confirmed Pajero Mini H56A catalog.

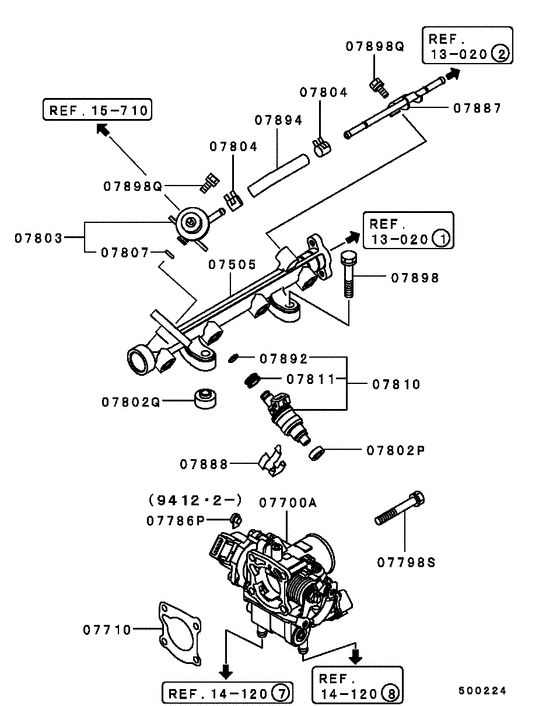

Diagram 7939060
Parts diagram group Injector & throttle body in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (21 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 07505 | MD170000 | PIPE, FUEL DELIVERY | 1 | $198.32 | |
| 07505 | MD328048 | PIPE, FUEL DELIVERY | 1 | $193.88 | |
| 07700A | MR314013 | Throttle Body Assy | Ac38-513 | 1 | $914.37 |
| 07710 | MD311338 | GASKET, THROTTLE BODY | 1 | $4.88 | |
| 07786P | MD314467 | CAP, THROTTLE BODY | 1 | $3.40 | |
| 07798S | MF241238 | BOLT, COOLING FAN | Washer assembled,6x55 | 4 | $2.52 |
| 07802P | MD087060 | INSULATOR, FUEL INJECTOR | 4 | $1.56 | |
| 07802Q | MD095402 | INSULATOR, FUEL DELIVERY PIPE | 2 | $1.83 | |
| 07803 | MD193253 | REGULATOR, MPI DELIVERY PIPE PRESSURE | 1 | — | |
| 07804 | MS660162 | CLIP, FUEL TANK | D=11 | 2 | $2.81 |
| 07807 | MD604688 | O-RING, FUEL REGULATOR | 1 | $1.89 | |
| 07810 | MD318067 | INJECTOR KIT, FUEL | 4 | $251.60 | |
| 07811 | MD614805 | SHEET, FUEL INJECTOR | 4 | $4.27 | |
| 07887 | MD170001 | PIPE, FUEL INJECTOR RETURN | 1 | $25.16 | |
| 07888 | MD166460 | SUPPORT, FUEL INJECTOR | 4 | $4.74 | |
| 07892 | MD614813 | O-RING, FUEL INJECTOR | 7.6 | 4 | — |
| 07892 | 1465A188 | O-RING, FUEL INJECTOR | 7.6 | 4 | $4.92 |
| 07894 | MD306002 | HOSE, FUEL INJECTOR | 6x74 | 1 | $14.50 |
| 07898 | MF240062 | BOLT, THROTTLE BODY | Washer assembled,8x45 | 2 | $2.37 |
| 07898Q | MF140202 | BOLT, FLANGE (6x10) | Flange,6x10 | 1 | $1.42 |
| 07898Q | MF241223 | BOLT, ROCKER COVER | Washer assembled,6x12 | 2 | $0.96 |

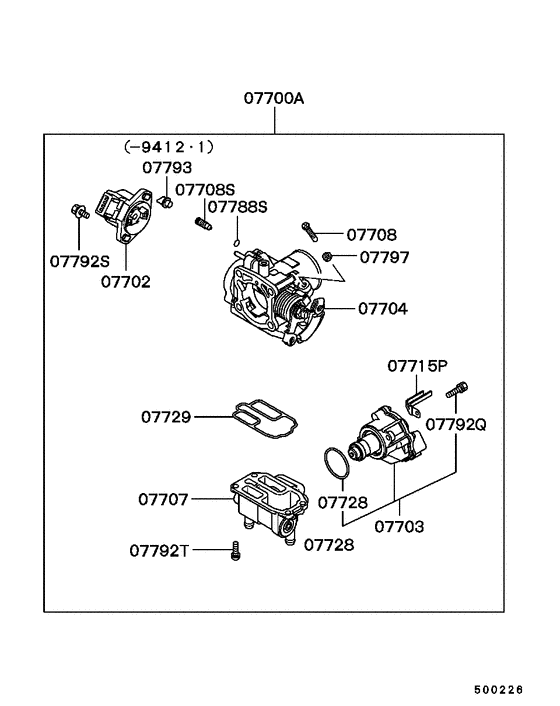

Diagram 7939061
Parts diagram group Injector & throttle body in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (20 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 07700A | MR314013 | Throttle Body Assy | Ac38-513 | 1 | $914.37 |
| 07702 | MD614787 | SENSOR, THROTTLE BODY THROTTLE | 1 | $263.44 | |
| 07703 | MD614762 | SERVO KIT, THROTTLE BODY IDLE SPEED CONTROL | 1 | $419.33 | |
| 07703 | MD628060 | SERVO KIT, THROTTLE BODY IDLE SPEED CONTROL | 1 | $419.33 | |
| 07704 | MD614941 | BODY, THROTTLE BODY MIXING | 1 | $464.46 | |
| 07707 | MD614764 | VALVE, FAST IDLE AIR | 1 | $304.30 | |
| 07708 | MD614304 | ADJUSTING SCREW, THROTTLE BODY SPEED | 1 | $7.52 | |
| 07708S | MD614951 | ADJUSTING SCREW, THROTTLE BODY SPEED | 1 | $7.70 | |
| 07708S | MD614952 | ADJUSTING SCREW, THROTTLE BODY SPEED | 1 | $7.55 | |
| 07715P | MD614246 | CLIP, THROTTLE BODY | 1 | $4.38 | |
| 07728 | MD614417 | O-RING, THROTTLE BODY IDLE SPEED CONTROL SERVO | 1 | $21.20 | |
| 07729 | MD614680 | O-RING, THROTTLE BODY FAST IDLE AIR VALVE | 1 | $8.76 | |
| 07788S | MD614950 | O-RING, THROTTLE BODY INR | 1 | $9.62 | |
| 07792Q | MD614285 | SCREW, THROTTLE BODY INR | 2 | — | |
| 07792Q | MD628050 | SCREW, THROTTLE BODY INR | 2 | $4.29 | |
| 07792S | MD614528 | SCREW, THROTTLE BODY INR | 2 | $4.38 | |
| 07792T | MF200052 | SCREW, FUEL TANK | Machine,5x14 | 4 | $2.33 |
| 07792T | MF350049 | SCREW, ROCKER COVER | Washer assembled,5x14 | 4 | $2.74 |
| 07793 | MD614321 | CAP, THROTTLE BODY INR | 1 | $8.58 | |
| 07797 | MD614305 | NUT, THROTTLE BODY | 1 | $2.74 |
