Fuel tank
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.

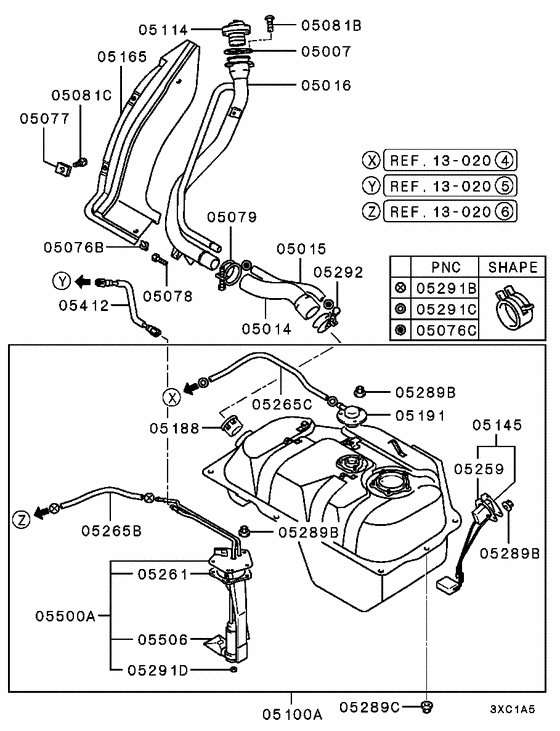

Diagram 7939057
Parts diagram group Fuel tank in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (39 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 05007 | MB554982 | GASKET, FUEL FILLER NECK | 1 | — | |
| 05007 | 17236W000P | 17236W000P | 1 | $3.12 | |
| 05014 | MR134702 | HOSE, FUEL FILLER | 1 | $33.30 | |
| 05014 | MR271493 | HOSE, FUEL FILLER | 1 | $39.22 | |
| 05015 | MR134703 | HOSE, FUEL FILLER NECK BREATHER | 1 | $8.14 | |
| 05015 | MR271494 | HOSE, FUEL FILLER NECK BREATHER | 1 | $7.99 | |
| 05016 | MR134688 | NECK, FUEL FILLER | 1 | — | |
| 05016 | 1710A146 | NECK, FUEL FILLER | 1 | $118.33 | |
| 05076B | MR288150 | CLIP, RR BUMPER | 2 | $1.01 | |
| 05076C | MS660173 | CLIP, FUEL TANK | D=18.5 | 2 | $1.38 |
| 05077 | MB138567 | GROMMET, SPLASH SHIELD | 6 | 2 | $2.13 |
| 05078 | MS240121 | BOLT, CONNROD | Washer assembled,6x16 | 1 | $1.31 |
| 05079 | MS660271 | CLAMP, FUEL TANK | 45 | 1 | $3.00 |
| 05081B | MB400510 | SCREW, FUEL TANK | Washer assembled,6x16 | 2 | — |
| 05081B | MU340019 | SCREW, FUEL TANK | Washer assembled,6x16 | 2 | $3.71 |
| 05081B | MU340031 | SCREW, FUEL TANK | Washer assembled,6x16 | 2 | — |
| 05081C | MF453108 | SCREW, ACCEL CONTROL EQUIP | Tapping,6x20 | 2 | $0.88 |
| 05100A | MR134794 | FUEL TANK ASSY | 1 | — | |
| 05114 | MB595538 | CAP, FUEL TANK | 1 | — | |
| 05114 | MN120695 | CAP, FUEL TANK | 1 | $16.15 | |
| 05114 | MR271610 | CAP, FUEL TANK | 1 | — | |
| 05114 | MN120695 | CAP, FUEL TANK | 1 | $16.15 | |
| 05145 | MR134687 | GAUGE UNIT, FUEL TANK | 1 | $75.24 | |
| 05165 | MR134802 | PROTECTOR, FUEL TANK | 1 | $16.28 | |
| 05188 | MB867392 | VALVE, FUEL FILLER NECK | 1 | $7.40 | |
| 05191 | MR187855 | VALVE, FUEL TANK SAFETY | 1 | $38.99 | |
| 05259 | MB382513 | GASKET, FUEL TANK GAUGE | 1 | $5.09 | |
| 05261 | MB400686 | GASKET, FUEL TANK PUMP | 1 | $6.29 | |
| 05265B | MU601060 | HOSE, FUEL TANK | 6x600 | 1 | $14.43 |
| 05265C | MS605158 | HOSE, EMISSION SOLENOID VALVE | 6x2000 | 1 | $21.20 |
| 05289B | MS440501 | NUT, FUEL TANK | Washer assembled,5 | 12 | $0.84 |
| 05289C | MS440523 | NUT, FUEL TANK | Washer assembled,8 | 3 | $2.57 |
| 05291B | MS660163 | CLIP, ROCKER COVER | D=11.6 | 2 | $0.72 |
| 05291C | MS660169 | CLIP, FUEL TANK | D=10 | 2 | $1.13 |
| 05291D | MB595892 | CLIP, FUEL TANK | 1 | $1.92 | |
| 05292 | MS660031 | CLAMP, FUEL TANK | 52 | 1 | $2.26 |
| 05412 | MR161995 | HOSE, FUEL HIGH PRESSURE | 1 | $69.56 | |
| 05500A | MR134681 | FUEL PUMP ASSY | 1 | — | |
| 05506 | MR126975 | FILTER, FUEL PUMP | 1 | $10.22 |
