Fuel line & vapor gas control
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.
Diagram 7939059

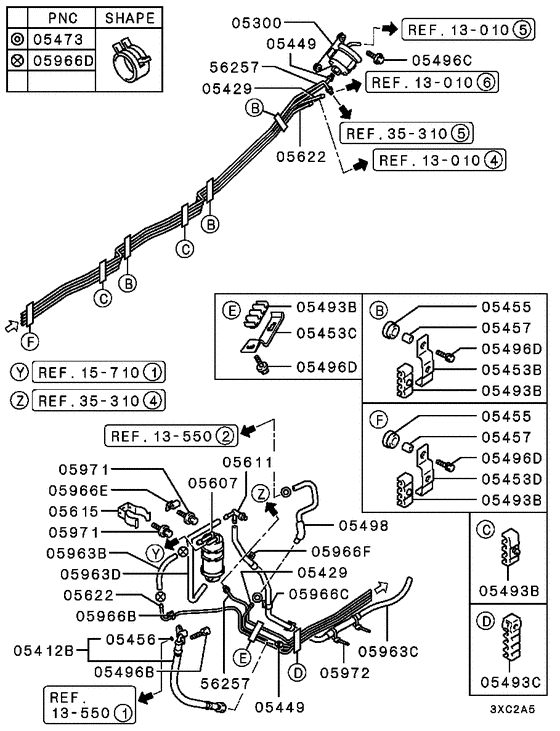

Parts diagram group Fuel line & vapor gas control in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (36 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 05300 | MR161986 | FUEL FILTER | 1 | — | |
| 05412B | MR161987 | HOSE, FUEL HIGH PRESSURE | 1 | $113.22 | |
| 05429 | MR161992 | PIPE, FUEL RETURN | 1 | $51.06 | |
| 05429 | MR239687 | PIPE, FUEL RETURN | 1 | $29.60 | |
| 05449 | MR161991 | PIPE, FUEL LINE | 1 | $60.68 | |
| 05449 | MR239686 | PIPE, FUEL LINE | 1 | — | |
| 05453B | MR204435 | SUPPORT, FUEL LINE | 3 | $6.36 | |
| 05453C | MR224944 | SUPPORT, FUEL LINE | 1 | $8.14 | |
| 05453D | MR239133 | SUPPORT, FUEL LINE | 1 | $11.84 | |
| 05455 | MB221305 | CUSHION, FUEL LINE | 4 | $4.51 | |
| 05456 | MB554317 | O-RING, FUEL LINE | 11.8 | 1 | $2.26 |
| 05457 | MR187322 | COLLAR, FUEL LINE | 4 | $2.96 | |
| 05473 | MB329606 | CLIP, FUEL RETURN LINE | 2 | $4.79 | |
| 05493B | MR239036 | CLIP, FUEL LINE | 7 | $6.81 | |
| 05493C | MB906501 | CLIP, FUEL LINE | 1 | $5.92 | |
| 05496B | MU240020 | BOLT, FUEL LINE | Washer assembled,6x20 | 2 | $3.28 |
| 05496C | MS240143 | BOLT (6x25) | Washer assembled,6x25 | 2 | $4.10 |
| 05496D | MS240143 | BOLT (6x25) | Washer assembled,6x25 | 5 | $4.10 |
| 05498 | MR239123 | HOSE, FUEL RETURN LINE | 1 | $15.54 | |
| 05607 | MR161988 | CANISTER, FUEL VAPOR | 1 | $61.42 | |
| 05611 | MB957190 | CHECK VALVE, FUEL VAPOR CONTROL | 1 | $14.06 | |
| 05615 | MB433062 | HOLDER, FUEL VAPOR CANISTER | 1 | $6.81 | |
| 05622 | MR161993 | PIPE, FUEL VAPOR | 1 | $59.94 | |
| 05622 | MR239688 | PIPE, FUEL VAPOR | 1 | $25.16 | |
| 05963B | MR212847 | HOSE, FUEL VAPOR CONTROL LINE | 1 | $11.10 | |
| 05963C | MR212848 | HOSE, FUEL VAPOR CONTROL LINE | 1 | $15.54 | |
| 05963D | MS605158 | HOSE, EMISSION SOLENOID VALVE | 6x2000 | 1 | $21.20 |
| 05966B | MB595895 | CLIP, FUEL RETURN LINE | 6 | 1 | $2.52 |
| 05966C | MU481226 | CLIP, HEADLAMP WASHER | 2 | $3.40 | |
| 05966D | MS660169 | CLIP, FUEL TANK | D=10 | 2 | $1.13 |
| 05966E | MB285888 | CLIP, HOIST CONTROL LINK | D=12 | 1 | $9.71 |
| 05966F | MR239429 | CLIP, FUEL VAPOR CONTROL LINE | 1 | $3.40 | |
| 05971 | MS240121 | BOLT, CONNROD | Washer assembled,6x16 | 2 | $1.31 |
| 05972 | MB249338 | BAND, ROCKER COVER | L=129.5 | 2 | $2.87 |
| 56257 | MR128919 | TUBE, BRAKE MAIN | 1 | $44.40 | |
| 56257 | MR128920 | TUBE, BRAKE MAIN | 1 | $47.36 |
