Engine mounting & support
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.

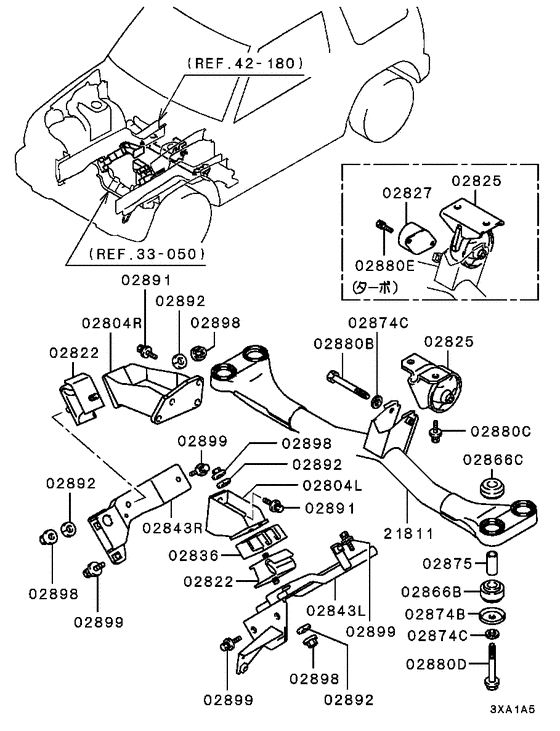

Diagram 7939055
Parts diagram group Engine mounting & support in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (24 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 02804L | MD317025 | BRACKET, CYLINDER BLOCK ENG FR MOUNTING | 1 | $42.92 | |
| 02804L | MD337628 | BRACKET, CYLINDER BLOCK ENG MOUNTING, LH | 1 | $40.70 | |
| 02804R | MD317026 | BRACKET, CYLINDER BLOCK ENG MOUNTING, RH | 1 | $67.34 | |
| 02804R | MD337630 | BRACKET, CYLINDER BLOCK ENG MOUNTING, RH | 1 | $66.60 | |
| 02822 | MR150341 | CUSHION, CROSSMEMBER ENG MOUNTING | 2 | $39.99 | |
| 02825 | MR150222 | CUSHION, ENG RR MOUNTING | 1 | $132.70 | |
| 02827 | MR103570 | DAMPER, ENG MOUNTING BRACKET DYNAMIC | 1 | $41.44 | |
| 02836 | MR150553 | PROTECTOR, ENG FR MOUNTING HEAT | 1 | $6.07 | |
| 02843L | MR150470 | STOPPER, ENG FR MOUNTING CUSHION, LH | 1 | $61.42 | |
| 02843R | MR150471 | STOPPER, ENG FR MOUNTING CUSHION, RH | 1 | $44.40 | |
| 02866B | MB290070 | CUSHION, ENG FR MOUNTING | 4 | $17.10 | |
| 02866C | MB290072 | CUSHION, ENG FR MOUNTING | 4 | $11.35 | |
| 02874B | MB691148 | WASHER, ENG FR MOUNTING | 10.5 | 4 | $3.70 |
| 02874C | MF450406 | WASHER | Spring,10 | 5 | $0.39 |
| 02875 | MR234041 | SPACER, ENG RR MOUNTING | 4 | $2.96 | |
| 02880B | MF195088 | BOLT, ENG RR MOUNTING | Cone point,10x75 | 1 | $5.62 |
| 02880C | MF241282 | BOLT, CYLINDER BLOCK | Washer assembled,10x25 | 2 | $1.07 |
| 02880D | MB871930 | BOLT, ENG SUPPORT ROD | Cone point,10x81 | 4 | $6.70 |
| 02880E | MF240023 | BOLT, FUEL TANK | Washer assembled,6x12 | 2 | $0.60 |
| 02891 | MF241282 | BOLT, CYLINDER BLOCK | Washer assembled,10x25 | 6 | $1.07 |
| 02892 | MF450406 | WASHER | Spring,10 | 4 | $0.39 |
| 02898 | MF430006 | NUT | 10 | 4 | $1.54 |
| 02899 | MF241280 | BOLT, RR SEAT | Washer assembled,10x20 | 6 | $0.88 |
| 21811 | MR150218 | CROSSMEMBER, T/M MOUNTING | 1 | — |
