Engine control
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.

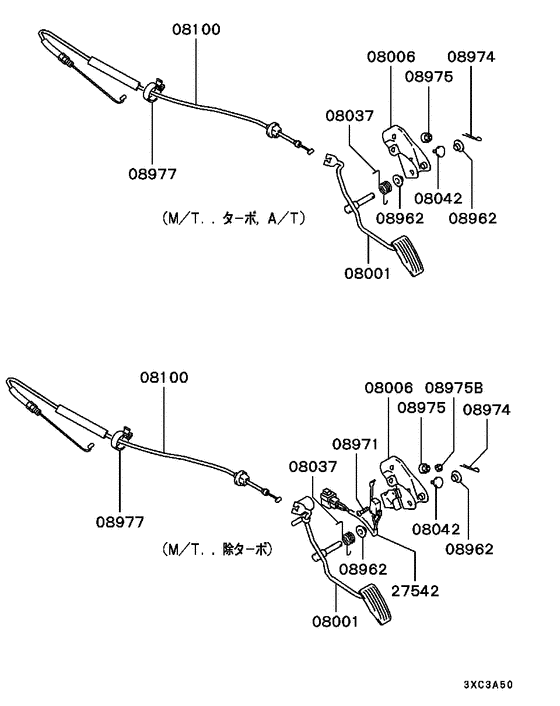

Diagram 7939063
Parts diagram group Engine control in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (13 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 08001 | MR150191 | ARM, ACCEL PEDAL | 1 | $36.26 | |
| 08006 | MB599471 | BRACKET, ACCEL PEDAL ARM | 1 | $16.28 | |
| 08037 | MB539212 | SPRING, ACCEL PEDAL RETURN | 1 | $6.22 | |
| 08042 | MB134911 | STOPPER, BRAKE PEDAL | 1 | — | |
| 08042 | MA306227 | STOPPER, ACCEL PEDAL ARM | 1 | $5.47 | |
| 08100 | MR150598 | CABLE, ACCEL | 1 | $45.88 | |
| 08100 | MR319380 | CABLE, ACCEL | 1 | $45.14 | |
| 08962 | MB539102 | BUSHING, ACCEL CONTROL EQUIP | 2 | $6.84 | |
| 08971 | MF350006 | SCREW, ACCEL CONTROL EQUIP | Washer assembled,3x16 | 2 | $2.37 |
| 08974 | MF472051 | PIN, WATER SEPARATOR INR | Split,2.5x18 | 1 | $0.74 |
| 08975 | MS440503 | NUT | Washer assembled,8 | 2 | $0.64 |
| 08975B | MF430721 | NUT, HEADLINING | Jam,3 | 2 | — |
| 08977 | MB922487 | CLIP, ACCEL CONTROL EQUIP | 1 | $2.52 |
