Cylinder head
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.

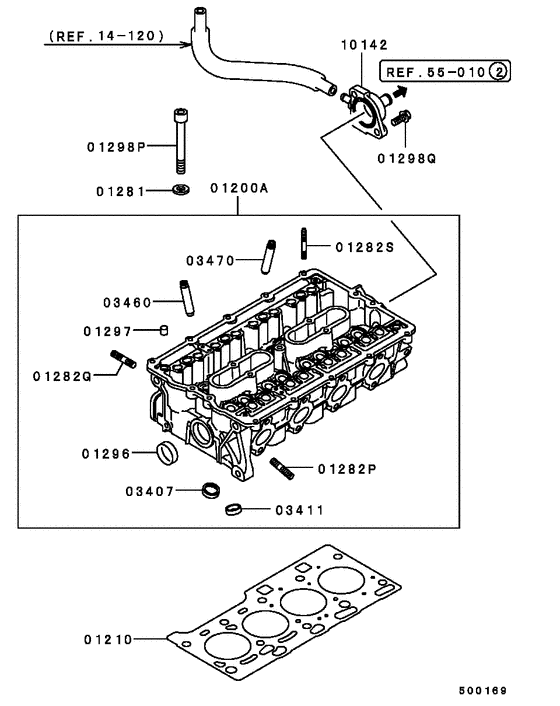

Diagram 7939043
Parts diagram group Cylinder head in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (21 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 01200A | MD316616 | HEAD ASSY, ENG CYLINDER | 1 | — | |
| 01210 | MD302900 | GASKET, CYLINDER HEAD | 1 | $57.37 | |
| 01281 | MD000436 | WASHER | Plain,10 | 10 | $1.62 |
| 01282P | MD005470 | STUD, CYLINDER HEAD | 8x25 | 8 | $4.24 |
| 01282Q | MF402567 | STUD, CYLINDER HEAD | 8x28 | 2 | — |
| 01282S | MD143988 | STUD, CYLINDER HEAD | 6x35 | 2 | $5.61 |
| 01296 | MF665540 | CAP, CYLINDER HEAD | Sealing,30 | 1 | $2.16 |
| 01297 | MS471101 | BUSHING, CYLINDER HEAD | 6x9 | 2 | $3.97 |
| 01298P | MD123008 | BOLT, CYLINDER HEAD | 10x80 | 10 | $10.53 |
| 01298Q | MF140025 | BOLT, RESISTOR | Flange,8x20 | 3 | $0.80 |
| 03407 | MD308359 | SEAT, EXHAUST VALVE | O/size 0.30 | 8 | $40.70 |
| 03407 | MD308360 | SEAT, EXHAUST VALVE | O/size 0.60 | 1 | — |
| 03411 | MD308357 | SEAT, INLET VALVE | O/size 0.30 | 12 | — |
| 03411 | MD308358 | SEAT, INLET VALVE | O/size 0.60 | 1 | $40.70 |
| 03460 | MD144036 | GUIDE, INLET VALVE | O/size 0.25 | 1 | — |
| 03460 | MD144037 | GUIDE, INLET VALVE | O/size 0.50 | 1 | $12.58 |
| 03460 | MD150513 | GUIDE, INLET VALVE | O/size 0.05 | 12 | — |
| 03470 | MD308354 | GUIDE, EXHAUST VALVE | O/size 0.05 | 8 | — |
| 03470 | MD308355 | GUIDE, EXHAUST VALVE | O/size 0.25 | 1 | — |
| 03470 | MD308356 | GUIDE, EXHAUST VALVE | O/size 0.50 | 1 | $9.77 |
| 10142 | MD310341 | FITTING, ENG HEATER WATER HOSE | 1 | $71.14 |
