Cylinder block
This EPC family contains 2 catalog variations for the VIN-confirmed Pajero Mini H56A catalog.

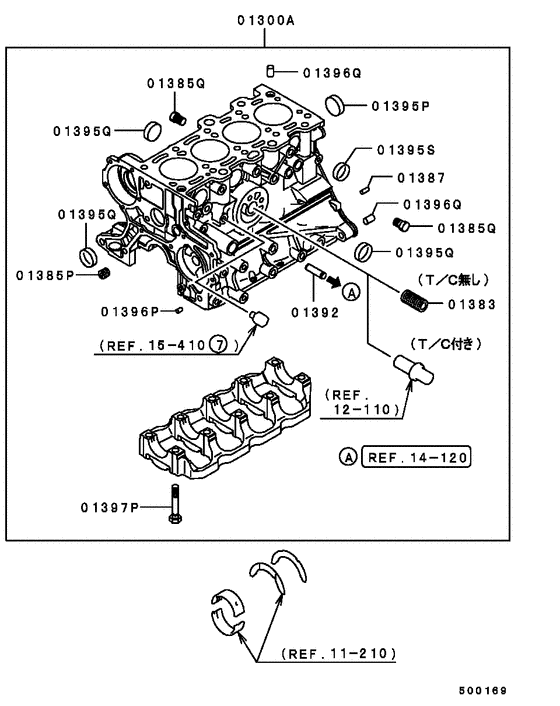

Diagram 7939044
Parts diagram group Cylinder block in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (12 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 01300A | MD304239 | BLOCK ASSY, CYLINDER | 1 | $2707.20 | |
| 01300A | MD354558 | BLOCK ASSY, CYLINDER | 1 | $2246.40 | |
| 01385P | MS661141 | PLUG, CYLINDER HEAD | Taper,1/4 | 1 | $1.92 |
| 01385Q | MD000269 | PLUG, CYLINDER BLOCK | Taper,1/4 | 2 | $2.24 |
| 01387 | MF472403 | PIN, CYLINDER BLOCK | Dowel,6x14 | 2 | $2.79 |
| 01392 | MD017329 | JOINT, CYLINDER HEAD | 1 | $3.55 | |
| 01395P | MD153100 | CAP, CYLINDER BLOCK | Sealing,35 | 1 | $2.07 |
| 01395Q | MF665540 | CAP, CYLINDER HEAD | Sealing,30 | 5 | $2.16 |
| 01395S | MF665539 | CAP, CYLINDER HEAD | Sealing,28 | 1 | $2.26 |
| 01396P | MS471101 | BUSHING, CYLINDER HEAD | 6x9 | 2 | $3.97 |
| 01396Q | MS471109 | BUSHING, CYLINDER BLOCK | 10x16 | 4 | $1.52 |
| 01397P | MD016230 | BOLT, CYLINDER BLOCK | 10x60 | 10 | $3.55 |

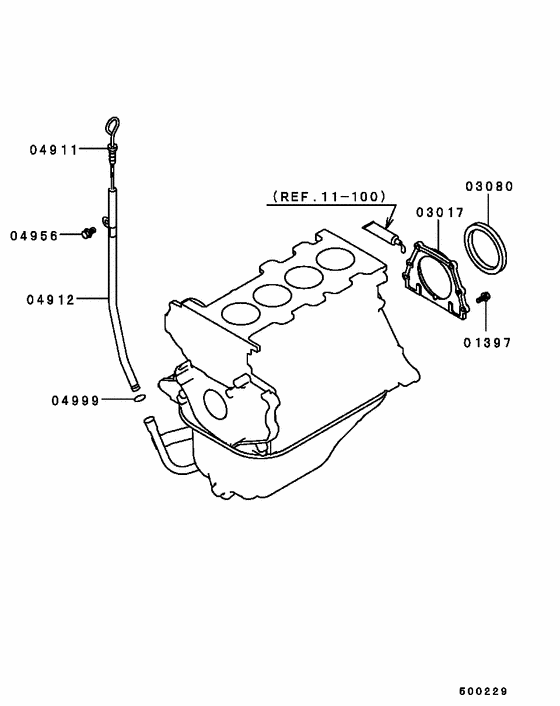

Diagram 7939045
Parts diagram group Cylinder block in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (9 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 01397 | MF140205 | BOLT, CYLINDER BLOCK | Flange,6x16 | 4 | $0.70 |
| 03017 | MD179584 | CASE, CRANKSHAFT RR OIL SEAL | 1 | $30.78 | |
| 03080 | MD179585 | OIL SEAL, CRANKSHAFT, RR | 1 | — | |
| 03080 | MD329374 | OIL SEAL, CRANKSHAFT, RR | 1 | $27.77 | |
| 03080 | MD329374 | OIL SEAL, CRANKSHAFT, RR | 1 | $27.77 | |
| 04911 | MD320942 | GAUGE, ENG OIL LEVEL | 1 | $20.72 | |
| 04912 | MD318975 | GUIDE, ENG OIL LEVEL GAUGE | 1 | $31.08 | |
| 04956 | MF140202 | BOLT, FLANGE (6x10) | Flange,6x10 | 1 | $1.42 |
| 04999 | MD075834 | O-RING, ENG OIL FILLER | 9 | 1 | $1.01 |
