Cover,rear plate & oil pan
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.
Diagram 7939046

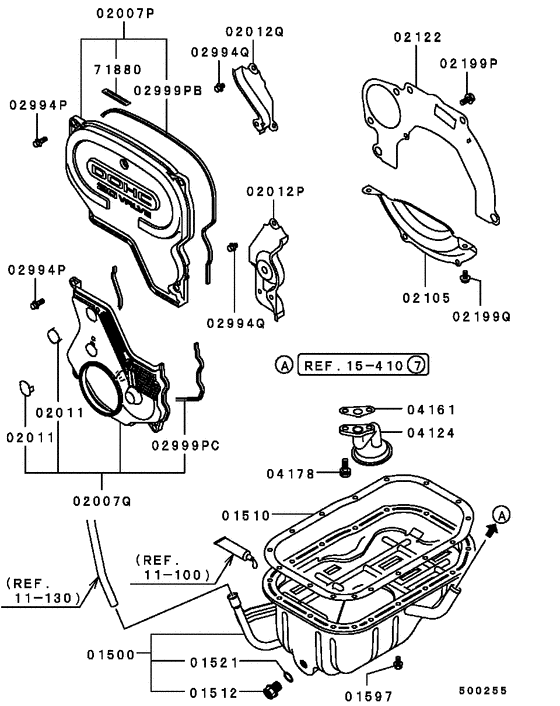

Parts diagram group Cover,rear plate & oil pan in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (24 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 01500 | MD330457 | OIL PAN, ENG | 1 | $217.51 | |
| 01510 | MD317027 | GASKET, ENG OIL PAN | 1 | $38.99 | |
| 01512 | MD050316 | PLUG, ENG OIL PAN… | 1 | $4.58 | |
| 01521 | MD050317 | GASKET, ENG OIL PAN DRAIN PLUG | D=14 | 1 | $1.01 |
| 01597 | MF140203 | BOLT, ACCEL CABLE SUPPORT | Flange,6x12 | 16 | $0.64 |
| 02007P | MD302505 | COVER, TIMING BELT | 1 | $48.10 | |
| 02007Q | MD315020 | COVER, TIMING BELT | 1 | $42.41 | |
| 02011 | MD006668 | COVER, TIMING BELT ACCESS | 2 | $5.47 | |
| 02012P | MD199395 | COVER, TIMING BELT UNDER | 1 | $28.12 | |
| 02012Q | MD199396 | COVER, TIMING BELT UNDER | 1 | $17.76 | |
| 02105 | MD314118 | COVER, FLYWHEEL HOUSING, FR LWR | 1 | $17.78 | |
| 02122 | MD194941 | PLATE, CYLINDER BLOCK, RR | 1 | $16.28 | |
| 02199P | MF140203 | BOLT, ACCEL CABLE SUPPORT | Flange,6x12 | 1 | $0.64 |
| 02199P | MF140205 | BOLT, CYLINDER BLOCK | Flange,6x16 | 1 | $0.70 |
| 02199Q | MF140203 | BOLT, ACCEL CABLE SUPPORT | Flange,6x12 | 2 | $0.64 |
| 02994P | MD093792 | BOLT, CRANKSHAFT PULLEY | Flange,6x16 | 8 | $4.65 |
| 02994P | MF140205 | BOLT, CYLINDER BLOCK | Flange,6x16 | 8 | $0.70 |
| 02994Q | MF140201 | BOLT, ENG RR PLATE | Flange,6x8 | 4 | $0.72 |
| 02999PB | MD302500 | GASKET, TIMING BELT COVER | 1 | $9.71 | |
| 02999PC | MD302498 | GASKET, TIMING BELT COVER | 1 | $5.61 | |
| 04124 | MD317870 | STRAINER, ENG OIL PAN | 1 | $19.98 | |
| 04161 | MD183237 | GASKET, OIL STRAINER | 1 | $5.47 | |
| 04178 | MF240053 | BOLT, CYLINDER HEAD | Washer assembled,8x20 | 2 | $1.01 |
| 71880 | MD310246 | LABEL, VALVE TIMING MAINTENANCE | 1 | $5.34 |
