Camshaft & valve
This EPC family contains 2 catalog variations for the VIN-confirmed Pajero Mini H56A catalog.
Diagram 7939051
Parts diagram group Camshaft & valve in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (33 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 03038 | MD196884 | SPROCKET, CRANKSHAFT CAMSHAFT DRIVE | 1 | $119.02 | |
| 03108 | MD315974 | CAMSHAFT, INLET | 1 | $735.28 | |
| 03109 | MD315975 | CAMSHAFT, EXHAUST | 1 | $582.40 | |
| 03110 | MD196000 | BELT, VALVE TIMING | 1 | — | |
| 03110 | MD312822 | BELT, VALVE TIMING | 1 | $117.59 | |
| 03152 | MD313329 | PULLEY, TIMING BELT IDLER | 1 | $104.34 | |
| 03166 | MD309804 | SPRING, TIMING BELT TENSIONER | 1 | $3.00 | |
| 03171 | MD195996 | SPROCKET, CAMSHAFT | 2 | — | |
| 03173 | MD195998 | TENSIONER, TIMING BELT | 1 | $101.92 | |
| 03195 | MD158443 | PIN, CAMSHAFT | Dowel,6x14 | 2 | $3.20 |
| 03281Q | MF450154 | WASHER, ENG FR MOUNTING | Plain,8 | 1 | $0.66 |
| 03281S | MD180308 | WASHER, TIMING BELT TRAIN | Plain,8 | 1 | $3.40 |
| 03282 | MD185714 | SPRING PIN, TIMING BELT TRAIN | 5x20 | 1 | $2.46 |
| 03285P | MF140285 | BOLT, ENG RR PLATE | Flange,12x30 | 2 | $1.31 |
| 03285Q | MF140223 | BOLT, CYLINDER HEAD | Flange,8x16 | 2 | $1.07 |
| 03285Q | MF140224 | BOLT, ENG MOUNTING | Flange,8x18 | 2 | $1.77 |
| 03285S | MD310978 | BOLT, TIMING BELT TRAIN | Flange,8x16 | 1 | $1.92 |
| 03285T | MF241255 | BOLT, CYLINDER HEAD | Washer assembled,8x25 | 1 | $0.92 |
| 03301 | MD133954 | ADJUSTER, ROCKER ARM LASH | 20 | $65.66 | |
| 03324 | MD169544 | ROCKER ARM, INLET & EXHAUST VALVE | 8 | — | |
| 03324 | MD372773 | ROCKER ARM, INLET & EXHAUST VALVE | 8 | $73.19 | |
| 03343 | MD169544 | ROCKER ARM, INLET & EXHAUST VALVE | 12 | — | |
| 03343 | MD372773 | ROCKER ARM, INLET & EXHAUST VALVE | 12 | $73.19 | |
| 03355 | MD161415 | HOLDER, ROCKER ARM | 20 | $4.39 | |
| 03405 | MD179174 | RETAINER, VALVE SPRING | 20 | $6.22 | |
| 03410 | MD191604 | VALVE, INLET | 12 | $26.72 | |
| 03412 | MD179173 | SEAT, VALVE SPRING | 20 | $4.59 | |
| 03413 | MD310128 | SPRING, INLET & EXHAUST VALVE | 8 | — | |
| 03414 | MD196139 | SPRING, INLET & EXHAUST VALVE | 12 | — | |
| 03420 | MD179171 | Valve, Exhaust | 8 | $54.48 | |
| 03440 | MD179175 | SEAL, VALVE STEM | Rubber | 20 | $5.23 |
| 03450 | MD123946 | LOCK, VALVE SPRING RETAINER | 40 | $0.82 | |
| 04044 | MD196886 | SPROCKET, ENG OIL PUMP | 1 | $84.36 |

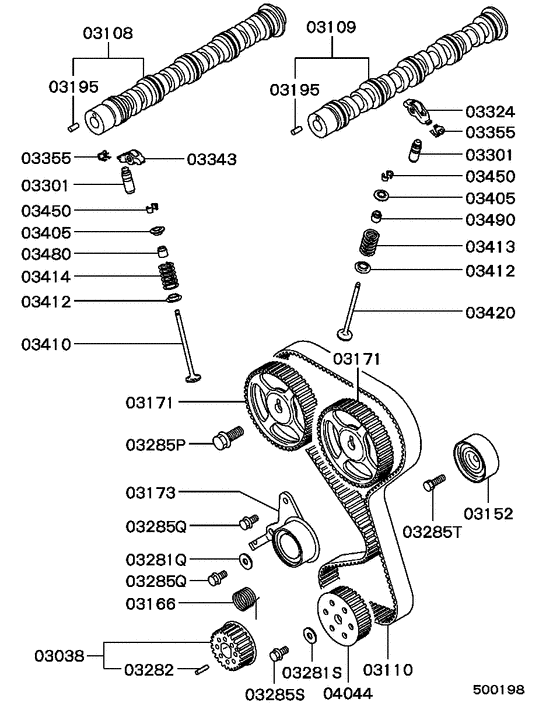

Diagram 7939052
Parts diagram group Camshaft & valve in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (34 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 03038 | MD196884 | SPROCKET, CRANKSHAFT CAMSHAFT DRIVE | 1 | $119.02 | |
| 03108 | MD315974 | CAMSHAFT, INLET | 1 | $735.28 | |
| 03109 | MD315975 | CAMSHAFT, EXHAUST | 1 | $582.40 | |
| 03110 | MD196000 | BELT, VALVE TIMING | 1 | — | |
| 03110 | MD312822 | BELT, VALVE TIMING | 1 | $117.59 | |
| 03152 | MD313329 | PULLEY, TIMING BELT IDLER | 1 | $104.34 | |
| 03166 | MD309804 | SPRING, TIMING BELT TENSIONER | 1 | $3.00 | |
| 03171 | MD195996 | SPROCKET, CAMSHAFT | 2 | — | |
| 03173 | MD195998 | TENSIONER, TIMING BELT | 1 | $101.92 | |
| 03195 | MD158443 | PIN, CAMSHAFT | Dowel,6x14 | 2 | $3.20 |
| 03281Q | MF450154 | WASHER, ENG FR MOUNTING | Plain,8 | 1 | $0.66 |
| 03281S | MD180308 | WASHER, TIMING BELT TRAIN | Plain,8 | 1 | $3.40 |
| 03282 | MD185714 | SPRING PIN, TIMING BELT TRAIN | 5x20 | 1 | $2.46 |
| 03285P | MF140285 | BOLT, ENG RR PLATE | Flange,12x30 | 2 | $1.31 |
| 03285Q | MF140223 | BOLT, CYLINDER HEAD | Flange,8x16 | 2 | $1.07 |
| 03285Q | MF140224 | BOLT, ENG MOUNTING | Flange,8x18 | 2 | $1.77 |
| 03285S | MD310978 | BOLT, TIMING BELT TRAIN | Flange,8x16 | 1 | $1.92 |
| 03285T | MF241255 | BOLT, CYLINDER HEAD | Washer assembled,8x25 | 1 | $0.92 |
| 03301 | MD133954 | ADJUSTER, ROCKER ARM LASH | 20 | $65.66 | |
| 03324 | MD169544 | ROCKER ARM, INLET & EXHAUST VALVE | 8 | — | |
| 03324 | MD372773 | ROCKER ARM, INLET & EXHAUST VALVE | 8 | $73.19 | |
| 03343 | MD169544 | ROCKER ARM, INLET & EXHAUST VALVE | 12 | — | |
| 03343 | MD372773 | ROCKER ARM, INLET & EXHAUST VALVE | 12 | $73.19 | |
| 03355 | MD161415 | HOLDER, ROCKER ARM | 20 | $4.39 | |
| 03405 | MD179174 | RETAINER, VALVE SPRING | 20 | $6.22 | |
| 03410 | MD191604 | VALVE, INLET | 12 | $26.72 | |
| 03412 | MD179173 | SEAT, VALVE SPRING | 20 | $4.59 | |
| 03413 | MD310128 | SPRING, INLET & EXHAUST VALVE | 8 | — | |
| 03414 | MD196139 | SPRING, INLET & EXHAUST VALVE | 12 | — | |
| 03420 | MD179171 | Valve, Exhaust | 8 | $54.48 | |
| 03450 | MD123946 | LOCK, VALVE SPRING RETAINER | 40 | $0.82 | |
| 03480 | MD179175 | SEAL, VALVE STEM | Rubber | 12 | $5.23 |
| 03490 | MD358891 | SEAL, EXHAUST VALVE STEM | Rubber | 8 | $10.81 |
| 04044 | MD196886 | SPROCKET, ENG OIL PUMP | 1 | $84.36 |
