Air cleaner
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.

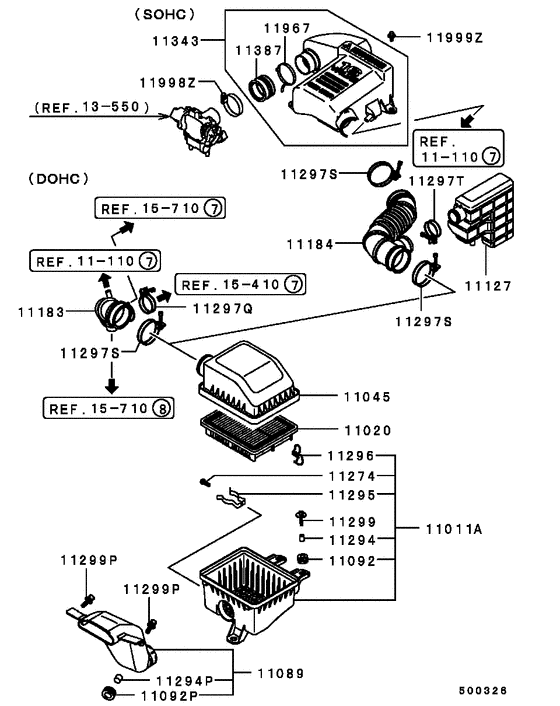

Diagram 7939071
Parts diagram group Air cleaner in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (22 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 11011A | MR188754 | BODY ASSY, AIR CLEANER | 1 | $161.32 | |
| 11020 | MD620584 | ELEMENT, AIR CLEANER | Non woven | 1 | — |
| 11020 | MR571470 | ELEMENT, AIR CLEANER | Non woven | 1 | $38.71 |
| 11045 | MR187454 | COVER, AIR CLEANER | 1 | $107.30 | |
| 11089 | MR187345 | DUCT, AIR CLEANER INTAKE | 1 | — | |
| 11089 | MR266639 | DUCT, AIR CLEANER INTAKE | 1 | $96.94 | |
| 11092 | MR204090 | INSULATOR, AIR CLEANER SUPPORT | 3 | $7.39 | |
| 11092P | MT206580 | INSULATOR, AIR CLEANER SUPPORT | 2 | $2.87 | |
| 11183 | MR187343 | DUCT, AIR CLEANER TO T/C | 1 | $128.76 | |
| 11274 | MF205026 | SCREW, TAILGATE LOCKING | Machine cone point,5x16 | 1 | $2.07 |
| 11294 | MD620592 | COLLAR, AIR CLEANER | 3 | $2.74 | |
| 11294P | MT206583 | COLLAR, AIR CLEANER | 2 | $2.74 | |
| 11295 | MR188755 | CLIP, AIR CLEANER INR | 1 | $3.70 | |
| 11296 | MD620542 | CLAMP, AIR CLEANER INR | 4 | $9.30 | |
| 11297Q | MS660373 | CLIP, RADIATOR PIPING | D=50 | 1 | $2.81 |
| 11297S | MF661133 | CLAMP, AIR CLEANER | 71 | 1 | $3.70 |
| 11299 | MD161216 | BOLT, AIR CLEANER | Washer assembled,6x30 | 3 | $1.38 |
| 11299P | MD041968 | BOLT, AIR CLEANER | Washer assembled,6x25 | 2 | $5.20 |
| 11299P | MF244824 | BOLT | Washer assembled,6x16 | 2 | $0.57 |
| 11299P | MF245424 | BOLT, AIR CLEANER | Washer assembled,6x16 | 2 | $1.78 |
| 11999Z | MF247224 | BOLT, FUEL TANK | Washer assembled,6x16 | 2 | $1.25 |
| 11999Z | MF248164 | BOLT, AIR CLEANER | Washer assembled,6x16 | 2 | $2.37 |
