Seat belt
This EPC family contains 2 catalog variations for the VIN-confirmed Pajero Mini H56A catalog.

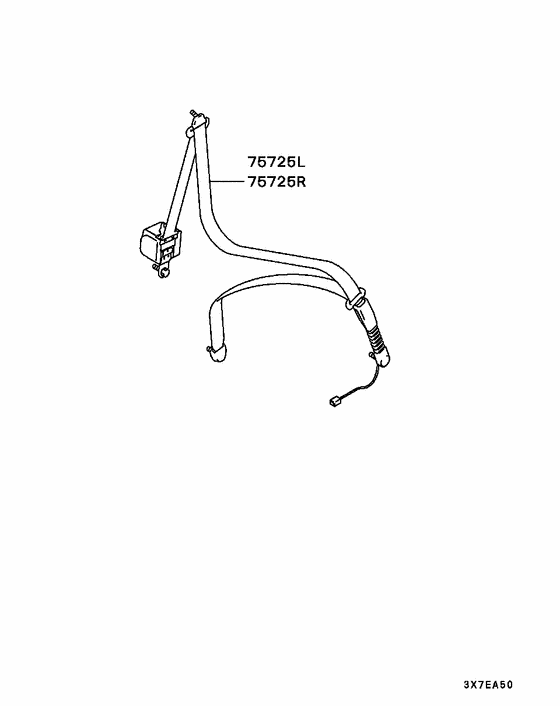

Diagram 7939231
Parts diagram group Seat belt in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (4 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 75725L | MR738294 | SEAT BELT, FR SEAT, LH | 1 | $380.02 | |
| 75725L | MR758372 | SEAT BELT, FR SEAT, LH | 1 | $380.02 | |
| 75725R | MR738295 | SEAT BELT, FR SEAT, RH | 1 | $380.02 | |
| 75725R | MR758373 | SEAT BELT, FR SEAT, RH | 1 | $380.02 |

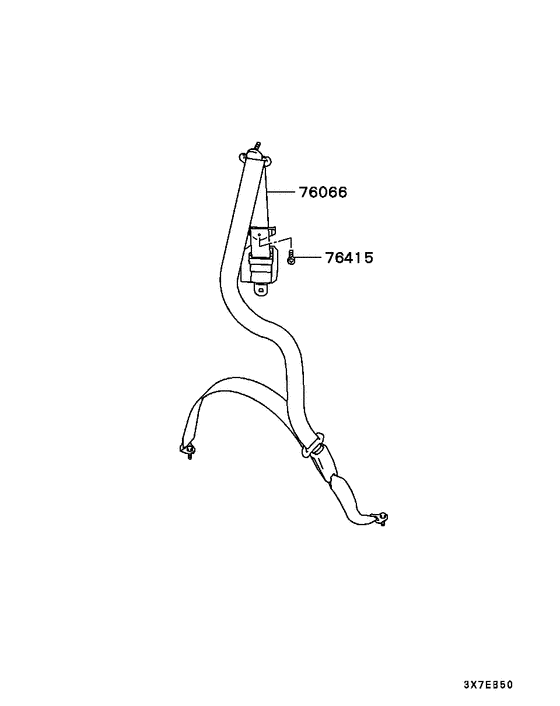

Diagram 7939232
Parts diagram group Seat belt in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (2 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 76066 | MR738293 | SEAT BELT, RR SEAT | 2 | $298.48 | |
| 76415 | MF453031 | SCREW 5x12 | Tapping,5x12 | 2 | $0.92 |
