Rear seat
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.

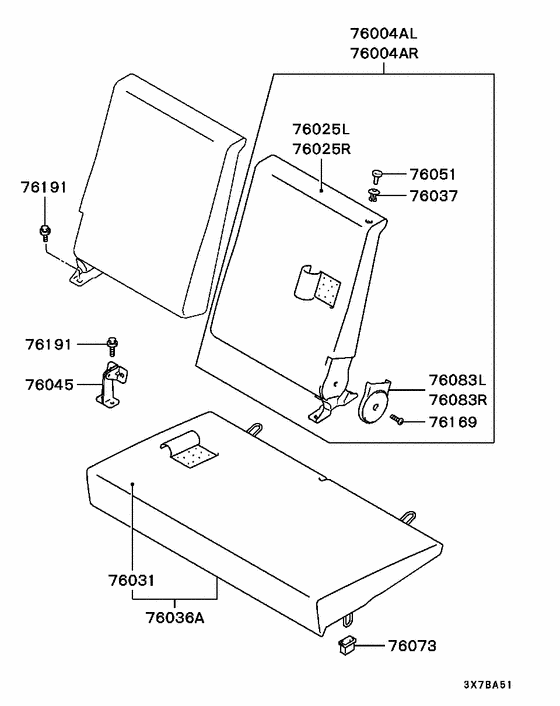

Diagram 7939230
Parts diagram group Rear seat in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (20 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 76004AL | MR766303 | BACK ASSY, RR SEAT, LH | 1 | $643.55 | |
| 76004AL | MR790984 | BACK ASSY, RR SEAT, LH | 1 | $643.55 | |
| 76004AR | MR766304 | BACK ASSY, RR SEAT, RH | 1 | $643.55 | |
| 76004AR | MR790985 | BACK ASSY, RR SEAT, RH | 1 | $643.55 | |
| 76025L | MR766305 | COVER, RR SEAT BACK, LH | 1 | $278.24 | |
| 76025L | MR790986 | COVER, RR SEAT BACK, LH | 1 | $278.24 | |
| 76025R | MR766306 | COVER, RR SEAT BACK, RH | 1 | $278.24 | |
| 76025R | MR790987 | COVER, RR SEAT BACK, RH | 1 | $278.24 | |
| 76031 | MR766302 | COVER, RR SEAT CUSHION | 1 | $409.14 | |
| 76031 | MR790983 | COVER, RR SEAT CUSHION | 1 | $409.14 | |
| 76036A | MR766301 | CUSHION ASSY, RR SEAT | 1 | $904.18 | |
| 76036A | MR790982 | CUSHION ASSY, RR SEAT | 1 | $904.18 | |
| 76037 | MR717997 | GARNISH, RR SEAT FOLDING KNOB | 2 | $3.88 | |
| 76045 | MR140983 | HINGE, RR SEAT, CTR | 1 | $19.98 | |
| 76051 | MB916573 | KNOB, RR SEAT FOLDING | 2 | $7.52 | |
| 76073 | MB324735 | STOPPER, RR SEAT | 2 | $4.51 | |
| 76083L | MR745533 | COVER, 3RD SEAT RECLINING ADJUSTER, LH | 1 | $10.06 | |
| 76083R | MR745534 | COVER, 3RD SEAT RECLINING ADJUSTER, RH | 1 | $10.06 | |
| 76169 | MF200333 | SCREW, FR SEAT | Machine,6x8 | 2 | $2.22 |
| 76191 | MB131256 | BOLT, BODY LOOSE PANEL | Washer assembled,8x25 | 8 | $4.38 |
