Mirror,grips & sunvisor
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.

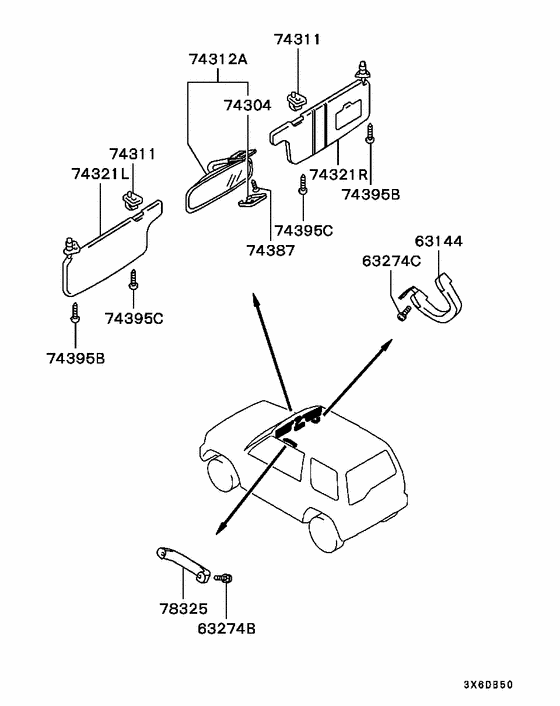

Diagram 7939221
Parts diagram group Mirror,grips & sunvisor in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (15 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 63144 | MR720766 | GRIP, FR PILLAR | 1 | $14.36 | |
| 63274B | MF350052 | SCREW, CARB INR | 2 | $3.28 | |
| 63274C | MF350076 | SCREW, QTR WINDOW REGULATOR | Washer assembled,6x22 | 2 | $3.26 |
| 74304 | MR240756 | COVER, ROOM MIRROR | 1 | $9.85 | |
| 74311 | MR710441 | HOLDER, SUNVISOR | 2 | $8.89 | |
| 74312A | MR710442 | MIRROR ASSY, ROOM | 1 | $74.74 | |
| 74312A | MR710443 | MIRROR ASSY, ROOM | 1 | $51.06 | |
| 74321L | MR738374 | SUNVISOR, LH | 1 | $58.46 | |
| 74321R | MR227580 | SUNVISOR, RH | W/holder | 1 | — |
| 74321R | MR381982 | SUNVISOR, RH | W/mirror&holder | 1 | $79.18 |
| 74321R | MR769952 | SUNVISOR, RH | W/mirror&holder | 1 | — |
| 74387 | MF205566 | SCREW, ROOM MIRROR | Machine cone point,5x20 | 3 | $1.01 |
| 74395B | MS200161 | SCREW, SUNVISOR | Machine tapping,5x16 | 4 | $2.07 |
| 74395C | MF454048 | SCREW, SUNVISOR | Tapping,5x20 | 2 | $2.60 |
| 78325 | MR710449 | GRIP, ROOF INSIDE ASSIST | 1 | $10.67 |
