Interior trim
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.

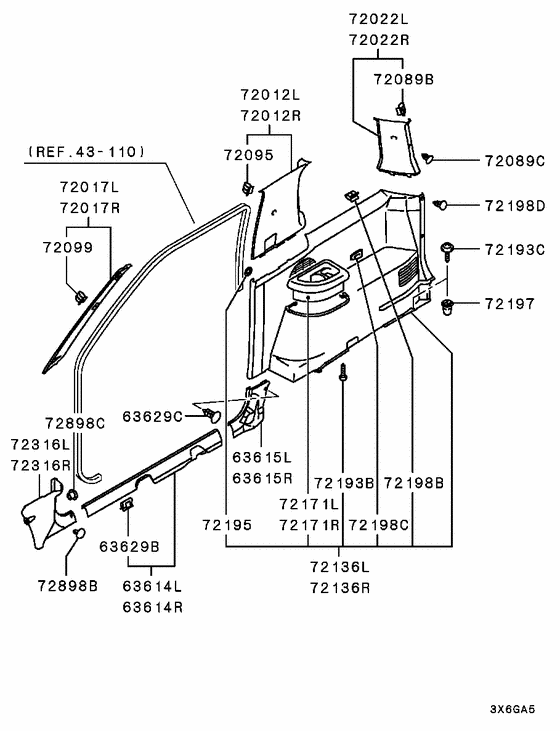

Diagram 7939223
Parts diagram group Interior trim in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (34 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 63614L | MR738376 | SCUFF PLATE, FR LH | 1 | $40.70 | |
| 63614R | MR738377 | SCUFF PLATE, FR RH | 1 | — | |
| 63615L | MR738387 | SCUFF PLATE, RR LH | 1 | $12.58 | |
| 63615R | MR738388 | SCUFF PLATE, RR RH | 1 | — | |
| 63629B | MB567618 | CLIP, SCUFF PLATE | 8 | $3.70 | |
| 63629C | MR206116 | CLIP, FR SEAT BELT | 2 | $3.69 | |
| 72012L | MR738363 | TRIM, CTR PILLAR, LH | 1 | $72.52 | |
| 72012R | MR738364 | TRIM, CTR PILLAR, RH | 1 | $72.52 | |
| 72017L | MR738361 | TRIM, FR PILLAR, LH | 1 | $28.04 | |
| 72017R | MR738362 | TRIM, FR PILLAR, RH | 1 | $28.04 | |
| 72022L | MR738365 | TRIM, RR PILLAR, LH | 1 | $36.26 | |
| 72022R | MR738366 | TRIM, RR PILLAR, RH | 1 | $33.30 | |
| 72089B | MU470013 | CLIP, TAILGATE TRIM | 4 | $0.66 | |
| 72089C | MR738353 | CLIP, HEADLINING | 4 | $1.92 | |
| 72095 | MU470013 | CLIP, TAILGATE TRIM | 12 | $0.66 | |
| 72099 | MU470013 | CLIP, TAILGATE TRIM | 4 | $0.66 | |
| 72136L | MR743445 | TRIM, QTR, LH | 1 | $272.32 | |
| 72136R | MR743446 | TRIM, QTR, RH | 1 | $272.32 | |
| 72171L | MR743447 | BOX, QTR TRIM, LH | 1 | $53.28 | |
| 72171R | MR743448 | BOX, QTR TRIM, RH | 1 | — | |
| 72193B | MF455391 | SCREW, FUEL LINE | Tapping,5x12 | 6 | $2.74 |
| 72193C | MS450157 | SCREW, ENG CONTROL EQUIP | Tapping,5x16 | 4 | $2.73 |
| 72193C | MS450158 | SCREW, EMISSION SOLENOID VALVE | Tapping,5x20 | 4 | $2.07 |
| 72193C | MS450177 | SCREW, OVERFENDER | Tapping,5x16 | 4 | $2.44 |
| 72195 | MS440054 | NUT, FR SEAT | Push-on spring,5 | 10 | $0.55 |
| 72197 | MU480034 | GROMMET, ABS CONTROL EQUIP | Screw,5 | 4 | $0.86 |
| 72198B | MU470013 | CLIP, TAILGATE TRIM | 10 | $0.66 | |
| 72198C | MR147684 | CLIP, TRUNK ROOM TRIM | 2 | $3.11 | |
| 72198D | MR710447 | CLIP, HEADLINING | 6 | $5.61 | |
| 72316L | MR738359 | TRIM, COWL SIDE, LH | 1 | $36.26 | |
| 72316R | MR738360 | TRIM, COWL SIDE, RH | 1 | $31.08 | |
| 72898B | MR710573 | CLIP, HEADLINING | 2 | $3.11 | |
| 72898C | MB479463 | CLIP, FOOTREST | 6 | 2 | $2.26 |
| 72898C | MU481004 | CLIP, DASH PANEL SILENCER | 5 | 2 | $2.96 |
