I/panel & related parts
This EPC family contains 2 catalog variations for the VIN-confirmed Pajero Mini H56A catalog.

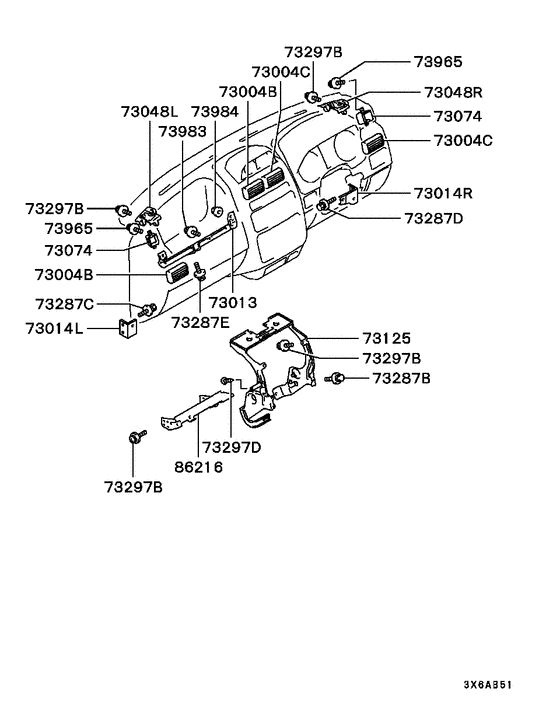

Diagram 7939218
Parts diagram group I/panel & related parts in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (19 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 73004B | MR233771 | AIR OUTLET, INSTRUMENT PANEL | 2 | $44.46 | |
| 73004C | MR233772 | AIR OUTLET, INSTRUMENT PANEL | 2 | $44.46 | |
| 73013 | MR168836 | BRACKET, INSTRUMENT PANEL ASSIST GRIP | 1 | $17.02 | |
| 73014L | MR208099 | BRACKET, INSTRUMENT PANEL SIDE, LH | 1 | $6.22 | |
| 73014R | MR208100 | BRACKET, INSTRUMENT PANEL SIDE, RH | 1 | — | |
| 73048L | MR168823 | BRACKET, INSTRUMENT PANEL SIDE, UPR LH | 1 | $3.70 | |
| 73048R | MR168824 | BRACKET, INSTRUMENT PANEL SIDE, UPR RH | 1 | $3.70 | |
| 73074 | MR168839 | HOLDER, INSTRUMENT PANEL AIR OUTLET GRILLE | 2 | $7.99 | |
| 73125 | MR168825 | REINFORCEMENT, INSTRUMENT PANEL | 1 | $43.66 | |
| 73287B | MS240156 | BOLT | Washer assembled,6x20 | 8 | $0.70 |
| 73287C | MS240631 | BOLT, FUEL FILLER LID PANEL | Washer assembled,6x16 | 2 | $2.87 |
| 73287D | MS240028 | BOLT, CRUISE CONTROL EQUIP | Washer assembled,6x12 | 2 | $3.28 |
| 73287E | MB330946 | BOLT, FUEL LINE | Washer assembled,6x20 | 1 | $1.92 |
| 73297B | MB409437 | SCREW, STEERING COLUMN COVER | Tapping,5x12 | 18 | $1.50 |
| 73297D | MF453033 | SCREW, TAPPING, 5x16 | Tapping,5x16 | 5 | $1.56 |
| 73965 | MB409437 | SCREW, STEERING COLUMN COVER | Tapping,5x12 | 4 | $1.50 |
| 73983 | MB409437 | SCREW, STEERING COLUMN COVER | Tapping,5x12 | 1 | $1.50 |
| 73984 | MS440522 | NUT, FUEL TANK | Washer assembled,6 | 2 | $0.84 |
| 86216 | MR168826 | BRACKET, HEATER | 1 | $16.28 |

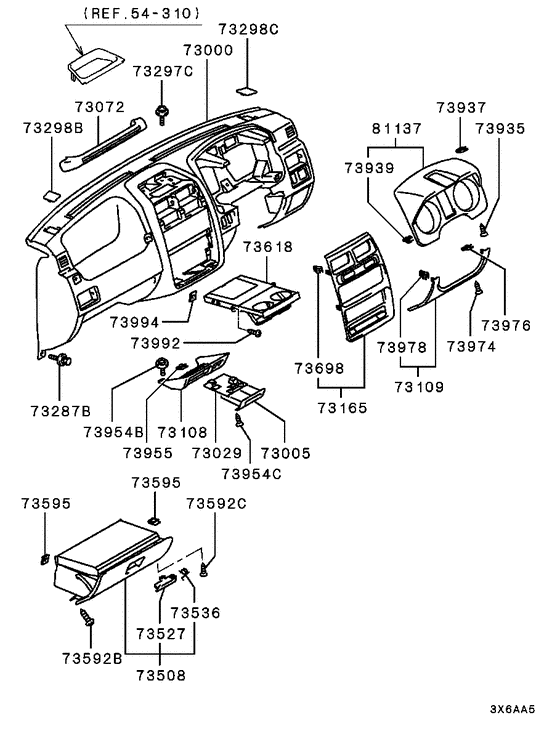

Diagram 7939219
Parts diagram group I/panel & related parts in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (32 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 73000 | MR738440 | PANEL, INSTRUMENT | 1 | $557.65 | |
| 73005 | MR233425 | ASHTRAY, INSTRUMENT PANEL | 1 | $83.62 | |
| 73029 | MR233426 | COVER, INSTRUMENT PANEL ASHTRAY | 1 | $12.58 | |
| 73072 | MR738442 | GRIP, INSTRUMENT PANEL ASSIST | 1 | $102.12 | |
| 73108 | MR738446 | PANEL, INSTRUMENT, LWR CTR | 1 | $59.20 | |
| 73109 | MR738449 | PANEL, INSTRUMENT, LWR | 1 | — | |
| 73165 | MR738447 | PANEL, INSTRUMENT, CTR | 1 | — | |
| 73287B | MS240156 | BOLT | Washer assembled,6x20 | 8 | $0.70 |
| 73297C | MF350768 | SCREW, FUEL FILLER LID PANEL | Washer assembled,5x12 | 4 | $1.29 |
| 73297C | MF453031 | SCREW 5x12 | Tapping,5x12 | 4 | $0.92 |
| 73298B | MR738453 | PLUG, INSTRUMENT PANEL | 1 | $3.26 | |
| 73298C | MR738454 | PLUG, INSTRUMENT PANEL | 1 | $3.26 | |
| 73508 | MR738441 | GLOVEBOX | 1 | — | |
| 73527 | MR996005 | LOCK, GLOVEBOX | 1 | $25.31 | |
| 73536 | MR168831 | SPRING, GLOVEBOX LID | 1 | $4.38 | |
| 73592B | MF453093 | SCREW, FUEL FILLER LID LOCKING | Tapping,5x16 | 3 | $0.92 |
| 73592C | MF453687 | SCREW, INSTRUMENT PANEL | Tapping,5x16 | 4 | $2.60 |
| 73595 | MB135995 | NUT, FUEL FILLER LID LOCKING | Spring,5 | 7 | $1.48 |
| 73618 | MR168104 | HOLDER, INSTRUMENT PANEL CONSOLE CUP | 1 | $71.78 | |
| 73698 | MB652510 | CLIP, INSTRUMENT PANEL PAD | 6 | $3.01 | |
| 73935 | MF453687 | SCREW, INSTRUMENT PANEL | Tapping,5x16 | 2 | $2.60 |
| 73937 | MB135995 | NUT, FUEL FILLER LID LOCKING | Spring,5 | 2 | $1.48 |
| 73939 | MB652510 | CLIP, INSTRUMENT PANEL PAD | 2 | $3.01 | |
| 73954B | MB409437 | SCREW, STEERING COLUMN COVER | Tapping,5x12 | 4 | $1.50 |
| 73954C | MF453033 | SCREW, TAPPING, 5x16 | Tapping,5x16 | 2 | $1.56 |
| 73955 | MB135995 | NUT, FUEL FILLER LID LOCKING | Spring,5 | 2 | $1.48 |
| 73974 | MF453093 | SCREW, FUEL FILLER LID LOCKING | Tapping,5x16 | 2 | $0.92 |
| 73976 | MB135995 | NUT, FUEL FILLER LID LOCKING | Spring,5 | 2 | $1.48 |
| 73978 | MB652510 | CLIP, INSTRUMENT PANEL PAD | 2 | $3.01 | |
| 73992 | MF453033 | SCREW, TAPPING, 5x16 | Tapping,5x16 | 2 | $1.56 |
| 73994 | MB135995 | NUT, FUEL FILLER LID LOCKING | Spring,5 | 2 | $1.48 |
| 81137 | MR738450 | HOOD, COMBINATION METER | 1 | $68.08 |
