Front seat
This EPC family contains 3 catalog variations for the VIN-confirmed Pajero Mini H56A catalog.

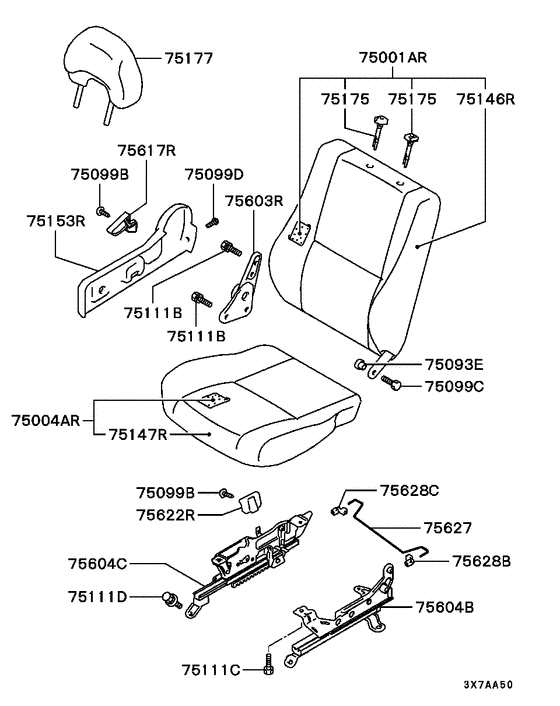

Diagram 7939227
Parts diagram group Front seat in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (27 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 75001AR | MR766287 | BACK ASSY, FR SEAT, RH | 1 | $726.54 | |
| 75001AR | MR790977 | BACK ASSY, FR SEAT, RH | 1 | $726.54 | |
| 75004AR | MR766283 | CUSHION ASSY, FR SEAT, RH | 1 | $726.54 | |
| 75004AR | MR790975 | CUSHION ASSY, FR SEAT, RH | 1 | $726.54 | |
| 75093E | MB158706 | BUSHING, FR SEAT | 12x6 | 2 | $1.44 |
| 75099B | MB410568 | SCREW, FR SEAT | 4x6 | 4 | $3.56 |
| 75099C | MB941045 | SCREW, RR SEAT | Washer assembled,6x12 | 2 | $2.96 |
| 75099D | MF455497 | SCREW, RR PILLAR GARNISH | Tapping,4x12 | 2 | $1.09 |
| 75111B | MF241280 | BOLT, RR SEAT | Washer assembled,10x20 | 8 | $0.88 |
| 75111C | MB190985 | BOLT, FR SEAT | 8x20 | 8 | $2.81 |
| 75111D | MS240188 | BOLT, FR BUMPER | Washer assembled,10x30 | 8 | $4.38 |
| 75146R | MR766295 | COVER, FR SEAT BACK, RH | 1 | $342.16 | |
| 75146R | MR790981 | COVER, FR SEAT BACK, RH | 1 | $342.16 | |
| 75147R | MR766291 | COVER, FR SEAT CUSHION, RH | 1 | $342.16 | |
| 75147R | MR790979 | COVER, FR SEAT CUSHION, RH | 1 | $342.16 | |
| 75153R | MR718059 | COVER, FR SEAT SIDE SHIELD, RH | 1 | $40.70 | |
| 75175 | MB974802 | GUIDE, FR SEAT HEADREST | W/lock | 2 | $9.32 |
| 75175 | MB974803 | GUIDE, FR SEAT HEADREST | W/o lock | 2 | $9.32 |
| 75177 | MR744677 | HEADREST, FR SEAT | 2 | $229.40 | |
| 75603R | MB941278 | ADJUSTER, FR SEAT RECLINING, RH | 1 | $91.02 | |
| 75604B | MB940650 | ADJUSTER, FR SEAT SLIDE | 1 | $112.48 | |
| 75604C | MB941284 | ADJUSTER, FR SEAT SLIDE | 1 | $112.48 | |
| 75617R | MR718064 | KNOB, FR SEAT RECLINING ADJUSTER, RH | 1 | $18.50 | |
| 75622R | MR718068 | KNOB, FR SEAT SLIDE ADJUSTER, RH | 1 | $10.06 | |
| 75627 | MR139527 | ROD, FR SEAT SLIDE ADJUSTER, LH | 2 | $11.10 | |
| 75628B | MB558042 | LINK, FR SEAT SLIDE ADJUSTER ROD | 2 | $4.14 | |
| 75628C | MB558041 | LINK, FR SEAT SLIDE ADJUSTER ROD | 2 | $4.14 |

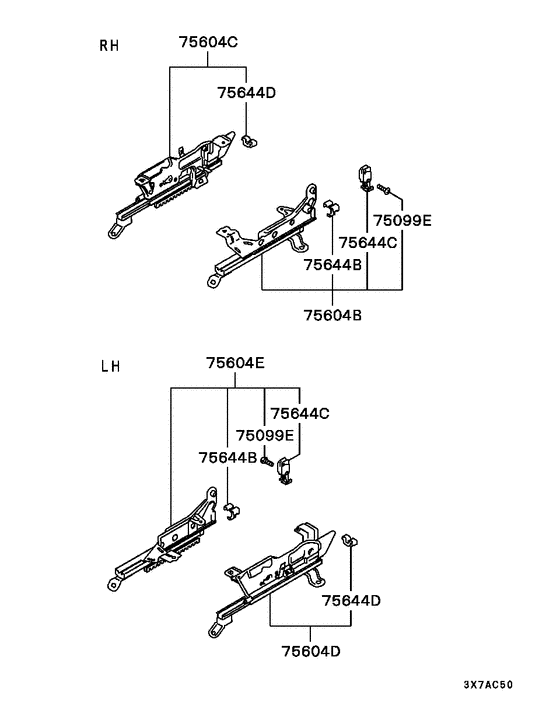

Diagram 7939228
Parts diagram group Front seat in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (8 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 75099E | MR139485 | SCREW, FR SEAT | 2 | $2.52 | |
| 75604B | MB940650 | ADJUSTER, FR SEAT SLIDE | 1 | $112.48 | |
| 75604C | MB941284 | ADJUSTER, FR SEAT SLIDE | 1 | $112.48 | |
| 75604D | MB941285 | ADJUSTER, FR SEAT SLIDE | 1 | $112.48 | |
| 75604E | MB940649 | ADJUSTER, FR SEAT SLIDE | 1 | $112.48 | |
| 75644B | MR139486 | CAP, FR SEAT SLIDE ADJUSTER | 2 | $8.14 | |
| 75644C | MR139484 | CAP, FR SEAT SLIDE ADJUSTER | 2 | $10.95 | |
| 75644D | MR139483 | CAP, FR SEAT SLIDE ADJUSTER | 2 | $8.14 |

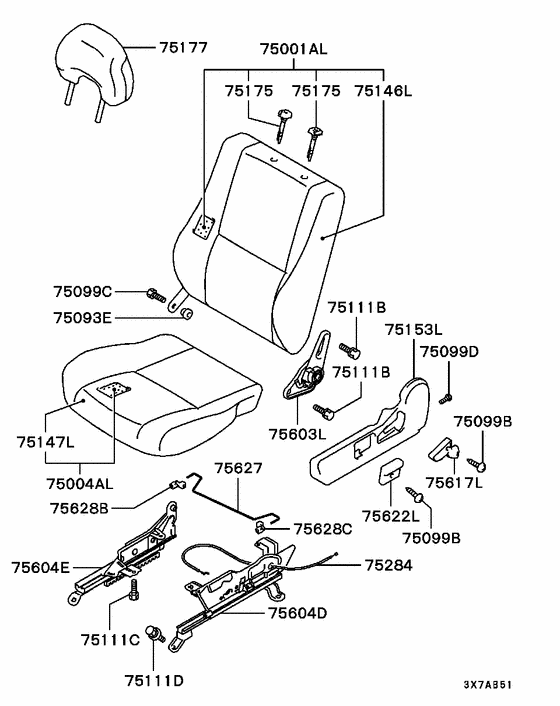

Diagram 7939229
Parts diagram group Front seat in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (28 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 75001AL | MR766285 | BACK ASSY, FR SEAT, LH | 1 | $726.54 | |
| 75001AL | MR790976 | BACK ASSY, FR SEAT, LH | 1 | $726.54 | |
| 75004AL | MR766281 | CUSHION ASSY, FR SEAT, LH | 1 | $726.54 | |
| 75004AL | MR790974 | CUSHION ASSY, FR SEAT, LH | 1 | $726.54 | |
| 75093E | MB158706 | BUSHING, FR SEAT | 12x6 | 2 | $1.44 |
| 75099B | MB410568 | SCREW, FR SEAT | 4x6 | 4 | $3.56 |
| 75099C | MB941045 | SCREW, RR SEAT | Washer assembled,6x12 | 2 | $2.96 |
| 75099D | MF455497 | SCREW, RR PILLAR GARNISH | Tapping,4x12 | 2 | $1.09 |
| 75111B | MF241280 | BOLT, RR SEAT | Washer assembled,10x20 | 8 | $0.88 |
| 75111C | MB190985 | BOLT, FR SEAT | 8x20 | 8 | $2.81 |
| 75111D | MS240188 | BOLT, FR BUMPER | Washer assembled,10x30 | 8 | $4.38 |
| 75146L | MR766293 | COVER, FR SEAT BACK, LH | 1 | $342.16 | |
| 75146L | MR790980 | COVER, FR SEAT BACK, LH | 1 | $342.16 | |
| 75147L | MR766289 | COVER, FR SEAT CUSHION, LH | 1 | $342.16 | |
| 75147L | MR790978 | COVER, FR SEAT CUSHION, LH | 1 | $342.16 | |
| 75153L | MR740037 | COVER, FR SEAT SIDE SHIELD, LH | 1 | $40.70 | |
| 75175 | MB974802 | GUIDE, FR SEAT HEADREST | W/lock | 2 | $9.32 |
| 75175 | MB974803 | GUIDE, FR SEAT HEADREST | W/o lock | 2 | $9.32 |
| 75177 | MR744677 | HEADREST, FR SEAT | 2 | $229.40 | |
| 75284 | MR139482 | WIRE, FR SEAT | 1 | — | |
| 75603L | MR202255 | ADJUSTER, FR SEAT RECLINING, LH | 1 | $137.64 | |
| 75604D | MB941285 | ADJUSTER, FR SEAT SLIDE | 1 | $112.48 | |
| 75604E | MB940649 | ADJUSTER, FR SEAT SLIDE | 1 | $112.48 | |
| 75617L | MR718062 | KNOB, FR SEAT RECLINING ADJUSTER, LH | 1 | $18.50 | |
| 75622L | MR718066 | KNOB, FR SEAT SLIDE ADJUSTER, LH | 1 | $10.06 | |
| 75627 | MR139527 | ROD, FR SEAT SLIDE ADJUSTER, LH | 2 | $11.10 | |
| 75628B | MB558042 | LINK, FR SEAT SLIDE ADJUSTER ROD | 2 | $4.14 | |
| 75628C | MB558041 | LINK, FR SEAT SLIDE ADJUSTER ROD | 2 | $4.14 |
