Floor mat
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.

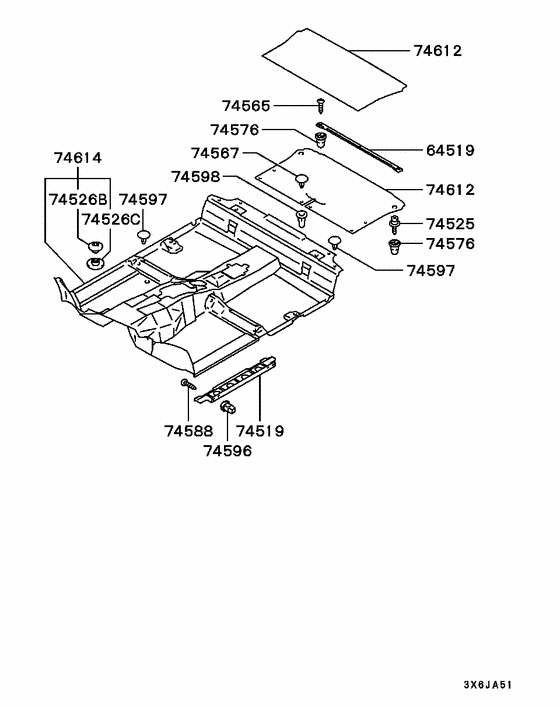

Diagram 7939225
Parts diagram group Floor mat in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (12 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 74519 | MB567643 | REINFORCEMENT, FR FLOOR CARPET | 2 | $12.14 | |
| 74526B | MB918601 | HOOK, FR FLOOR CARPET | 1 | — | |
| 74526B | MR406272 | HOOK, FR FLOOR CARPET | 1 | $2.60 | |
| 74526C | MB918602 | HOOK, FR FLOOR CARPET | 1 | — | |
| 74526C | MR406273 | HOOK, FR FLOOR CARPET | 1 | $2.46 | |
| 74565 | MF453093 | SCREW, FUEL FILLER LID LOCKING | Tapping,5x16 | 3 | $0.92 |
| 74588 | MF453031 | SCREW 5x12 | Tapping,5x12 | 4 | $0.92 |
| 74596 | MU480034 | GROMMET, ABS CONTROL EQUIP | Screw,5 | 4 | $0.86 |
| 74597 | MR710573 | CLIP, HEADLINING | 6 | $3.11 | |
| 74598 | MU481026 | CAP, FR DOOR TRIM | 4 | $3.40 | |
| 74612 | MR745532 | MAT, CARGO FLOOR | 1 | $198.32 | |
| 74614 | MR738372 | MAT, FLOOR | 1 | $661.02 |
