Console
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.

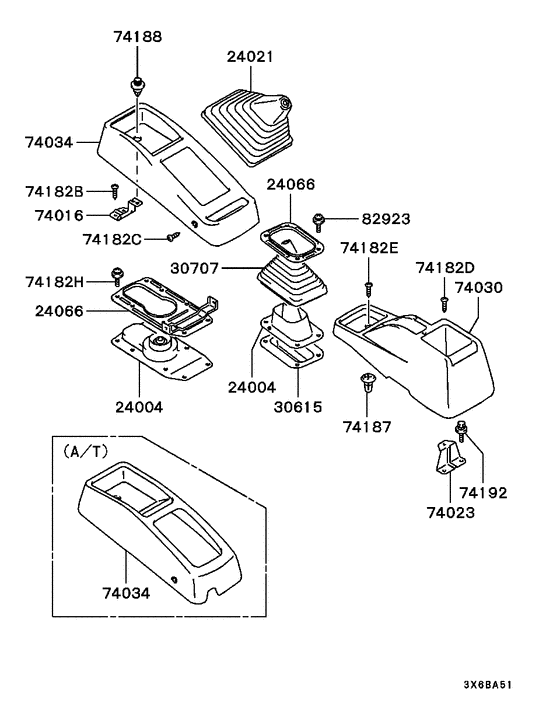

Diagram 7939220
Parts diagram group Console in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (18 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 24004 | MR222755 | BOOT, GEARSHIFT LEVER | 1 | $8.44 | |
| 24066 | MR166498 | RETAINER, GEARSHIFT LEVER BOOT | 1 | $7.99 | |
| 30615 | MR176896 | COVER, T/F GEARSHIFT LEVER | 1 | $10.36 | |
| 30707 | MR166174 | COVER, T/F GEARSHIFT LEVER | 1 | $29.60 | |
| 74016 | MR168832 | BRACKET, FLOOR CONSOLE | 1 | $6.36 | |
| 74023 | MR201099 | BRACKET, FLOOR CONSOLE, RR | 1 | $11.69 | |
| 74030 | MR738445 | CONSOLE, FLOOR, RR | 1 | $121.36 | |
| 74034 | MR738444 | CONSOLE, FLOOR | 1 | $99.90 | |
| 74182B | MF453031 | SCREW 5x12 | Tapping,5x12 | 2 | $0.92 |
| 74182C | MF453094 | SCREW, STEERING COLUMN COVER | Tapping,5x20 | 2 | $2.19 |
| 74182D | MS450179 | SCREW, RADIATOR GRILLE | Tapping,4x20 | 1 | $3.56 |
| 74182E | MF455499 | SCREW, ROOF LID | Tapping,4x16 | 1 | $2.81 |
| 74182H | MS350129 | SCREW, FUEL TANK | Washer assembled,6x16 | 8 | $4.24 |
| 74187 | MB106212 | GROMMET, BODY | Screw,4 | 1 | — |
| 74187 | MB132008 | GROMMET, EXTERIOR MARK | 4 | 1 | $2.74 |
| 74188 | MR720542 | CLIP, 3RD SEAT | 1 | $3.83 | |
| 74192 | MS240121 | BOLT, CONNROD | Washer assembled,6x16 | 2 | $1.31 |
| 82923 | MS350130 | SCREW, EMISSION SOLENOID VALVE | Washer assembled,6x20 | 4 | $1.46 |
