Baggage room trim
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.

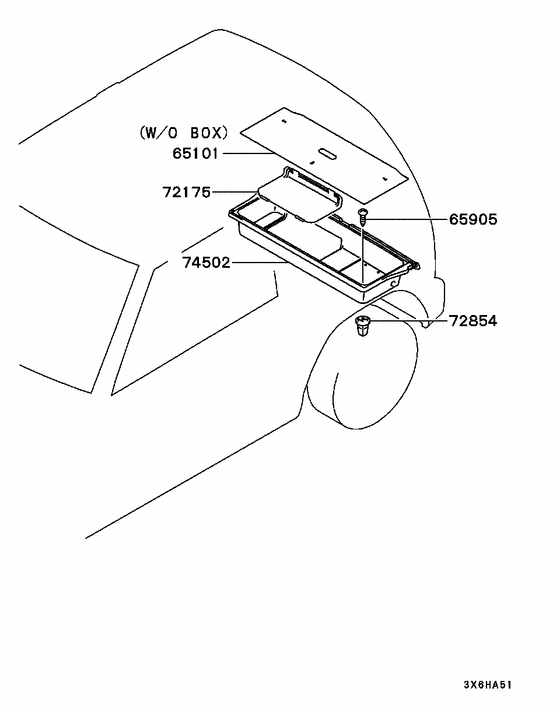

Diagram 7939224
Parts diagram group Baggage room trim in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (4 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 65905 | MF453093 | SCREW, FUEL FILLER LID LOCKING | Tapping,5x16 | 5 | $0.92 |
| 72175 | MR738389 | LID, JACK BOX | 1 | $35.52 | |
| 72854 | MU480034 | GROMMET, ABS CONTROL EQUIP | Screw,5 | 7 | $0.86 |
| 74502 | MR738373 | TRAY, CARGO FLOOR | 1 | $173.16 |
