A/t valve body
This EPC family contains 2 catalog variations for the VIN-confirmed Pajero Mini H56A catalog.

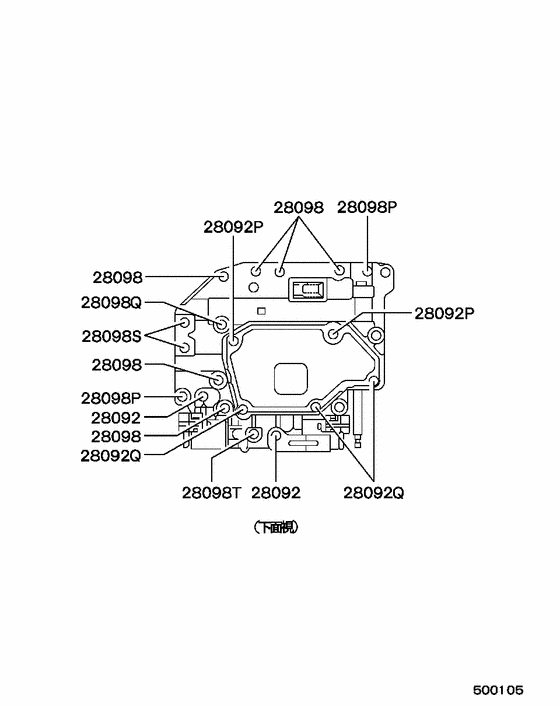

Diagram 7939115
Parts diagram group A/t valve body in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (8 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 28092 | MD616024 | BOLT, SPEEDOMETER GEAR | Washer assembled,6x14 | 2 | $2.07 |
| 28092P | MB919685 | BOLT, A/T VALVE BODY INR | Flange | 2 | $1.92 |
| 28092Q | MB919686 | BOLT, A/T VALVE BODY INR | Flange | 3 | $1.48 |
| 28098 | MB919691 | BOLT, A/T VALVE BODY | Flange | 6 | $1.92 |
| 28098P | MB919692 | BOLT, A/T VALVE BODY | Flange | 2 | $1.92 |
| 28098Q | MB919693 | BOLT, A/T VALVE BODY | 1 | $1.92 | |
| 28098S | MB919694 | BOLT, A/T VALVE BODY | Flange | 2 | $1.92 |
| 28098T | MB919696 | BOLT, A/T VALVE BODY | Flange | 1 | $1.92 |

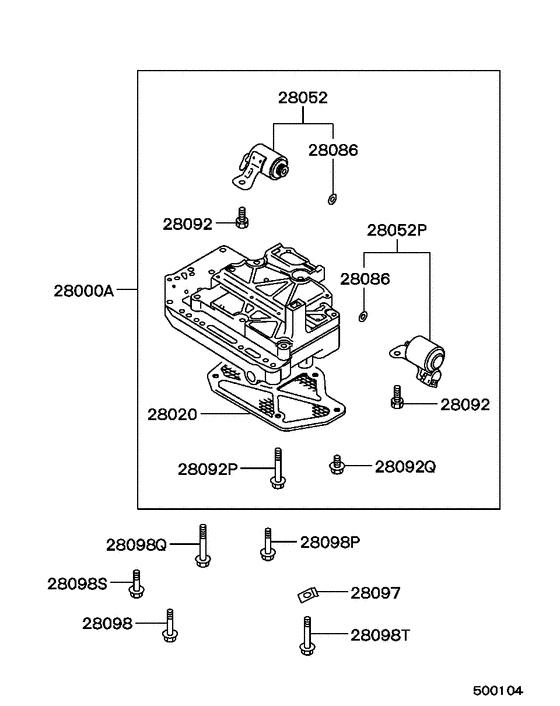

Diagram 7939116
Parts diagram group A/t valve body in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (16 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 28000A | MR276976 | BODY ASSY, A/T VALVE | 1 | $1310.40 | |
| 28020 | MB919847 | OIL FILTER, A/T VALVE BODY | 1 | $127.91 | |
| 28052 | MB919957 | VALVE UNIT, A/T VALVE BODY SOLENOID | 1 | — | |
| 28052 | MR367968 | VALVE UNIT, A/T VALVE BODY SOLENOID | 1 | $224.35 | |
| 28052P | MB919956 | VALVE UNIT, A/T VALVE BODY SOLENOID | 1 | — | |
| 28052P | MR367967 | VALVE UNIT, A/T VALVE BODY SOLENOID | 1 | $224.35 | |
| 28086 | MB919689 | O-RING, A/T VALVE BODY INR | 2 | $3.15 | |
| 28092 | MD616024 | BOLT, SPEEDOMETER GEAR | Washer assembled,6x14 | 2 | $2.07 |
| 28092P | MB919685 | BOLT, A/T VALVE BODY INR | Flange | 2 | $1.92 |
| 28092Q | MB919686 | BOLT, A/T VALVE BODY INR | Flange | 3 | $1.48 |
| 28097 | MB919695 | CLAMP, A/T VALVE BODY | 1 | $0.30 | |
| 28098 | MB919691 | BOLT, A/T VALVE BODY | Flange | 6 | $1.92 |
| 28098P | MB919692 | BOLT, A/T VALVE BODY | Flange | 2 | $1.92 |
| 28098Q | MB919693 | BOLT, A/T VALVE BODY | 1 | $1.92 | |
| 28098S | MB919694 | BOLT, A/T VALVE BODY | Flange | 2 | $1.92 |
| 28098T | MB919696 | BOLT, A/T VALVE BODY | Flange | 1 | $1.92 |
