A/t tor-con & oil pump
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.

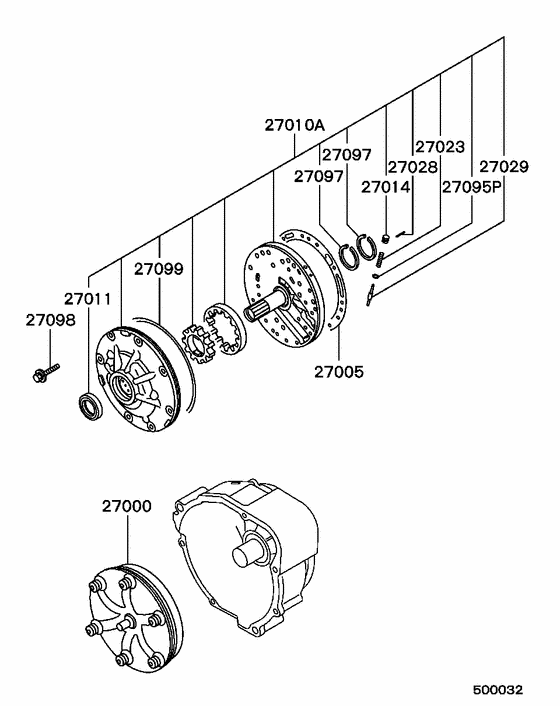

Diagram 7939109
Parts diagram group A/t tor-con & oil pump in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (12 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 27000 | MR166686 | TORQUE CONVERTER, A/T | 1 | $1512.00 | |
| 27005 | MB919805 | GASKET, A/T OIL PUMP | 1 | $11.35 | |
| 27010A | MB919962 | OIL PUMP ASSY, A/T | 1 | $511.06 | |
| 27011 | MB919919 | OIL SEAL, A/T OIL PUMP BODY | 1 | $14.29 | |
| 27014 | MB919804 | PLUG, A/T OIL PUMP | 1 | $13.91 | |
| 27023 | MB919963 | SPRING, A/T OIL PUMP | 1 | $5.77 | |
| 27028 | MB919807 | ROLLER, A/T OIL PUMP INR | 1 | $1.78 | |
| 27029 | MB919802 | VALVE, A/T OIL PUMP INR | 1 | $44.40 | |
| 27095P | MB919806 | WASHER, A/T OIL PUMP | 1 | $5.48 | |
| 27097 | MB919610 | SEAL RING, A/T OIL PUMP | 2 | $8.14 | |
| 27098 | MB919949 | BOLT, A/T OIL PUMP | Flange | 8 | $3.85 |
| 27099 | MB919611 | O-RING, A/T OIL PUMP | 1 | $20.72 |
