A/t oil cooler & tube
This EPC family contains 2 catalog variations for the VIN-confirmed Pajero Mini H56A catalog.

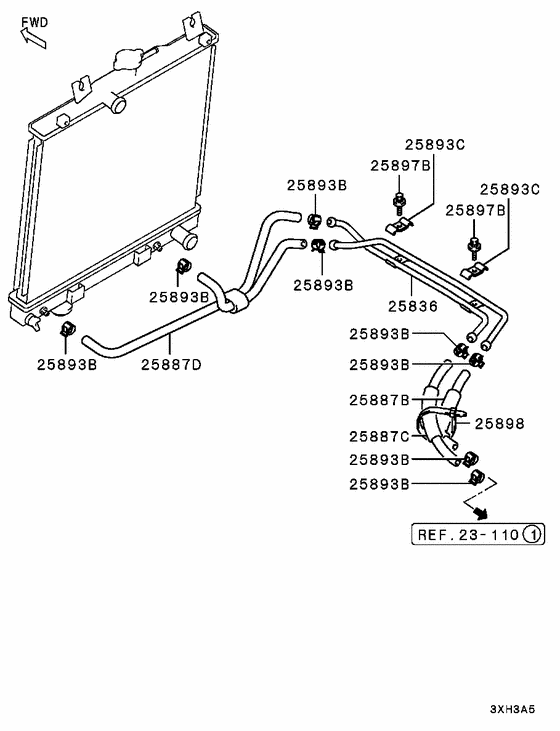

Diagram 7939120
Parts diagram group A/t oil cooler & tube in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (9 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 25836 | MR263189 | TUBE, T/M OIL COOLER FEED | 1 | $41.72 | |
| 25887B | MR176556 | HOSE, T/M OIL COOLER LINE | 1 | $21.89 | |
| 25887C | MR176557 | HOSE, T/M OIL COOLER LINE | 1 | $28.73 | |
| 25887D | MR204341 | HOSE, T/M OIL COOLER LINE | 1 | $41.72 | |
| 25893B | MR204390 | CLIP, T/M OIL COOLER LINE | D=13.6 | 8 | — |
| 25893B | MR281416 | CLIP, T/M OIL COOLER LINE | D=13.5 | 8 | $4.38 |
| 25897B | MS240122 | BOLT, ENG FR MOUNTING | Washer assembled,6x20 | 2 | $0.92 |
| 25897B | MS240602 | BOLT, FR BUMPER | Washer assembled,6x20 | 2 | $1.17 |
| 25898 | MB249339 | BAND, ENG BREATHER | L=169.5 | 1 | $3.83 |

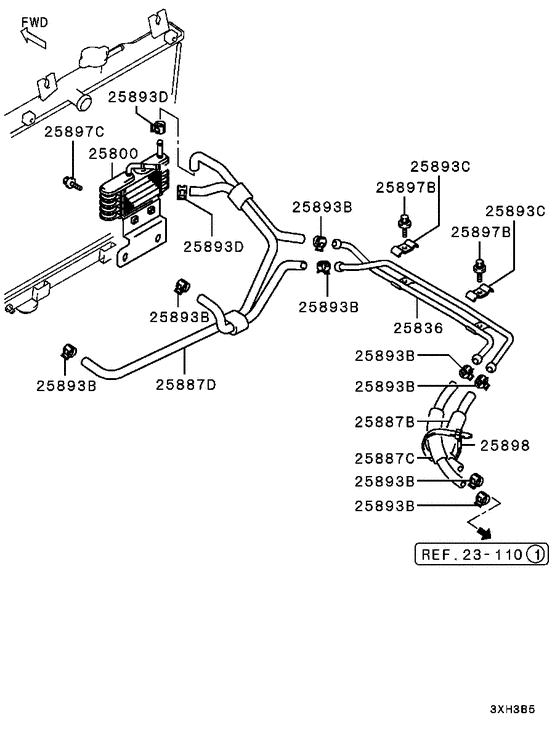

Diagram 7939121
Parts diagram group A/t oil cooler & tube in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (10 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 25836 | MR263189 | TUBE, T/M OIL COOLER FEED | 1 | $41.72 | |
| 25887B | MR176556 | HOSE, T/M OIL COOLER LINE | 1 | $21.89 | |
| 25887C | MR176557 | HOSE, T/M OIL COOLER LINE | 1 | $28.73 | |
| 25887D | MR204341 | HOSE, T/M OIL COOLER LINE | 1 | $41.72 | |
| 25893B | MR204390 | CLIP, T/M OIL COOLER LINE | D=13.6 | 8 | — |
| 25893B | MR281416 | CLIP, T/M OIL COOLER LINE | D=13.5 | 8 | $4.38 |
| 25897B | MS240122 | BOLT, ENG FR MOUNTING | Washer assembled,6x20 | 2 | $0.92 |
| 25897B | MS240602 | BOLT, FR BUMPER | Washer assembled,6x20 | 2 | $1.17 |
| 25897C | MS240125 | BOLT, FUEL TANK | Washer assembled,8x20 | 2 | $0.88 |
| 25898 | MB249339 | BAND, ENG BREATHER | L=169.5 | 1 | $3.83 |
