A/t gear & governor
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.

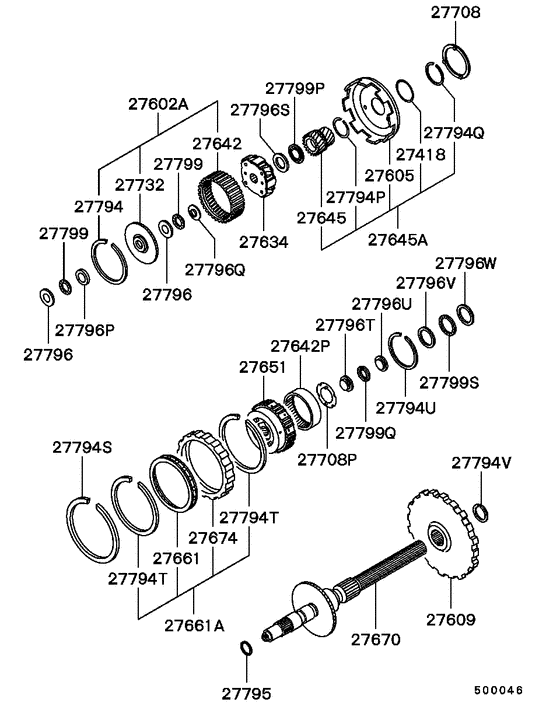

Diagram 7939114
Parts diagram group A/t gear & governor in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (37 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 27418 | MB919812 | PLATE, A/T BRAKE DRUM CUSHION | 1 | $9.32 | |
| 27602A | MB919624 | RING GEAR ASSY, A/T PLANETARY | 1 | $297.02 | |
| 27605 | MB919874 | DRUM, A/T SUN GEAR INPUT | 1 | $41.44 | |
| 27609 | MB919924 | GEAR, A/T PARKING LOCK | 1 | $168.72 | |
| 27634 | MB919632 | GEAR, A/T FR PLANETARY | 1 | $148.00 | |
| 27642 | MB919625 | GEAR, A/T PLANETARY ANNULUS | 1 | $74.74 | |
| 27642P | MB919642 | GEAR, A/T PLANETARY ANNULUS | 1 | $74.74 | |
| 27645 | MB919809 | GEAR, A/T PLANETARY SUN | 1 | $173.16 | |
| 27645A | MB919873 | GEAR ASSY, A/T PLANETARY SUN | 1 | $330.51 | |
| 27651 | MB919876 | GEAR, A/T RR PLANETARY | 1 | $105.82 | |
| 27661 | MB919879 | ONE-WAY CLUTCH, A/T PLANETARY | 1 | $138.38 | |
| 27661A | MB919878 | ONE-WAY CLUTCH ASSY, A/T PLANETARY | 1 | $211.64 | |
| 27670 | MB919898 | SHAFT, A/T OUTPUT | 1 | $164.28 | |
| 27674 | MB919653 | RACE, A/T PLANETARY ONE-WAY CLUTCH, OTR | 1 | $78.44 | |
| 27708 | MB919640 | THRUST WASHER, A/T POWER TRAIN | 1 | $4.44 | |
| 27708P | MB919647 | THRUST WASHER, A/T POWER TRAIN | 1 | $4.44 | |
| 27732 | MB919626 | FLANGE, A/T ANNULUS GEAR OUTPUT | 1 | $236.80 | |
| 27794 | MB919627 | SNAP RING, A/T POWER TRAIN | 1 | $4.59 | |
| 27794P | MB919637 | SNAP RING, A/T POWER TRAIN | 1 | $3.70 | |
| 27794Q | MB919639 | SNAP RING, A/T POWER TRAIN | 1 | $3.70 | |
| 27794S | MB919655 | SNAP RING, A/T BRAKE | 1 | $4.59 | |
| 27794T | MB919654 | SNAP RING, A/T POWER TRAIN | 2 | $5.48 | |
| 27794U | MB919643 | SNAP RING, A/T POWER TRAIN | 1 | $3.85 | |
| 27794V | MB919910 | SNAP RING, A/T POWER TRAIN | 1 | $3.70 | |
| 27795 | MB919705 | SEAL RING, A/T POWER TRAIN | 1 | $5.92 | |
| 27796 | MB919630 | RACE, A/T POWER TRAIN | 2 | $6.07 | |
| 27796P | MB919628 | RACE, A/T POWER TRAIN | 1 | $6.07 | |
| 27796Q | MB919631 | RACE, A/T POWER TRAIN | 1 | $6.07 | |
| 27796S | MB919634 | RACE, A/T POWER TRAIN | 1 | $6.07 | |
| 27796T | MB919644 | RACE, A/T POWER TRAIN | 1 | $6.07 | |
| 27796U | MB919617 | RACE, A/T CLUTCH | 1 | $7.84 | |
| 27796V | MB919648 | RACE, A/T POWER TRAIN | 1 | $6.07 | |
| 27796W | MB919650 | RACE, A/T POWER TRAIN | 1 | $6.07 | |
| 27799 | MB919629 | THRUST BEARING, A/T POWER TRAIN | 2 | $9.03 | |
| 27799P | MB919633 | THRUST BEARING, A/T POWER TRAIN | 1 | $9.03 | |
| 27799Q | MB919618 | THRUST BEARING, A/T CLUTCH | 1 | $9.18 | |
| 27799S | MB919649 | THRUST BEARING, A/T POWER TRAIN | 1 | $9.03 |
