A/t floor shift linkage
This EPC family contains 2 catalog variations for the VIN-confirmed Pajero Mini H56A catalog.

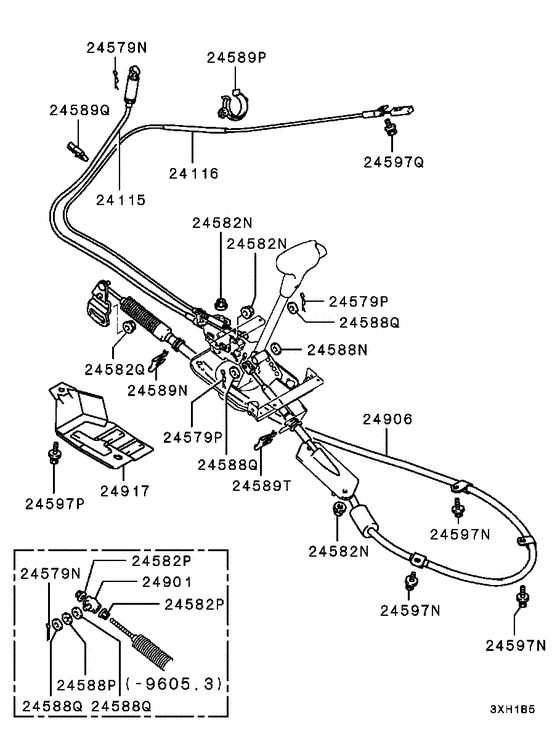

Diagram 7939118
Parts diagram group A/t floor shift linkage in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (21 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 24115 | MB932807 | CABLE, GEARSHIFT LOCK | 1 | $52.54 | |
| 24116 | MR150512 | CABLE, GEARSHIFT KEY LOCK | 1 | $52.54 | |
| 24579N | MB844379 | PIN, GEARSHIFT LINK | Snap,8 | 1 | $3.61 |
| 24579N | MF472026 | PIN, BRAKE PEDAL | Split,1.6x20 | 1 | $1.04 |
| 24579P | MF472303 | PIN, HOIST CONTROL LINK | Snap,6x21.2 | 2 | $1.03 |
| 24582N | MS440503 | NUT | Washer assembled,8 | 7 | $0.64 |
| 24582P | MU431501 | NUT, GEARSHIFT LINK | Flange,6 | 2 | $4.65 |
| 24582Q | MS440504 | NUT | Washer assembled,10 | 1 | $0.66 |
| 24588N | MB484709 | WASHER, GEARSHIFT LINK | Spring,6.5 | 1 | $3.69 |
| 24588P | MV028875 | WASHER, M/T CLUTCH CONTROL EQUIP | Spring,7 | 1 | $2.37 |
| 24588Q | MF450153 | WASHER, TIMING POWER TRAIN CASE | Plain,6 | 4 | $0.96 |
| 24589N | MB484289 | CLIP, GEARSHIFT LINK | 1 | $3.69 | |
| 24589P | MU481237 | CLIP, GEARSHIFT LINK | 1 | $5.03 | |
| 24589Q | MU481249 | CLIP, GEARSHIFT LINK | 1 | $1.48 | |
| 24589T | MB659841 | CLIP, GEARSHIFT LINK | 1 | $4.44 | |
| 24597N | MF240051 | BOLT, ROCKER COVER | Washer assembled,8x16 | 4 | $0.82 |
| 24597P | MF243649 | BOLT, FLYWHEEL HOUSING | Washer assembled,8x16 | 2 | $0.45 |
| 24597Q | MS240356 | BOLT, GEARSHIFT LINK | Washer assembled,5x10 | 1 | $1.92 |
| 24906 | MR276895 | CABLE, GEARSHIFT | 1 | $122.10 | |
| 24906 | MR430593 | CABLE, GEARSHIFT | 1 | $122.10 | |
| 24917 | MR290240 | COVER, GEARSHIFT CABLE | 1 | $54.02 |

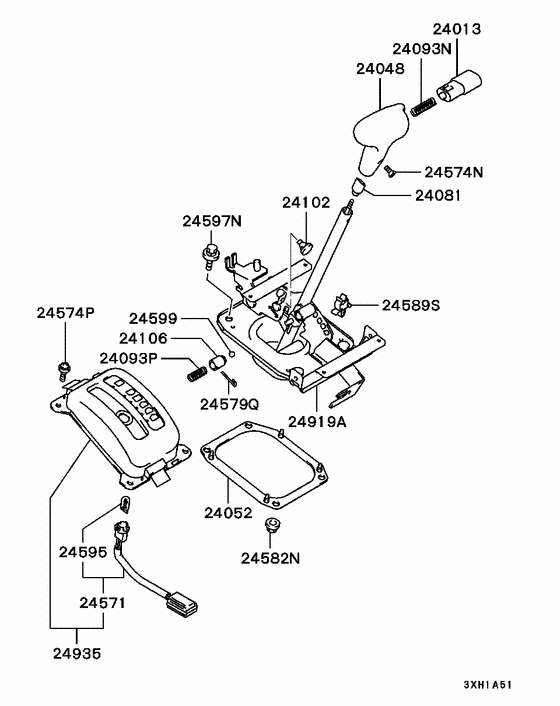

Diagram 7939119
Parts diagram group A/t floor shift linkage in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (20 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 24013 | MR738350 | BUTTON, GEARSHIFT LEVER PUSH | 1 | $13.91 | |
| 24048 | MB659529 | KNOB, GEARSHIFT LEVER | 3a/t | 1 | $28.12 |
| 24052 | MB951039 | GASKET, GEARSHIFT LEVER DETENT PLATE | 1 | $7.40 | |
| 24081 | MR132394 | SLEEVE, GEARSHIFT LEVER | 1 | $2.52 | |
| 24093N | MR132395 | SPRING, GEARSHIFT LEVER | 1 | $4.44 | |
| 24093P | MR195676 | SPRING, GEARSHIFT LEVER | 1 | $3.15 | |
| 24102 | MB151298 | STOPPER, STEERING COLUMN BRACKET | 1 | $2.48 | |
| 24106 | MB180224 | SUPPORT, GEARSHIFT LEVER DETENT BALL | 1 | $4.59 | |
| 24571 | MR263676 | SOCKET, GEARSHIFT LINK | 1 | $13.47 | |
| 24574N | MF360263 | SCREW, GEARSHIFT LINK | Washer assembled,4x8 | 2 | $1.78 |
| 24574P | MF350769 | SCREW, FUEL FILLER LID PANEL | Washer assembled,5x14 | 4 | $2.46 |
| 24579Q | MB180225 | PIN, GEARSHIFT LINK | Snap,1.4x30 | 1 | $1.46 |
| 24582N | MS440503 | NUT | Washer assembled,8 | 7 | $0.64 |
| 24589S | MU481157 | CLIP, GEARSHIFT LINK | 5.4 | 1 | $3.01 |
| 24595 | MF820572 | BULB, GLOVEBOX | 1 | $1.50 | |
| 24595 | MB439505 | BULB, HEATER CONTROL EQUIP | 1 | — | |
| 24597N | MF240051 | BOLT, ROCKER COVER | Washer assembled,8x16 | 4 | $0.82 |
| 24599 | MF540009 | BALL, CYLINDER HEAD | 9/32 | 1 | $1.37 |
| 24919A | MR232182 | LEVER ASSY, A/T SHIFT | 1 | — | |
| 24935 | MR738880 | PANEL, A/T SHIFT INDICATOR | 1 | $112.48 |
