A/t clutch
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.

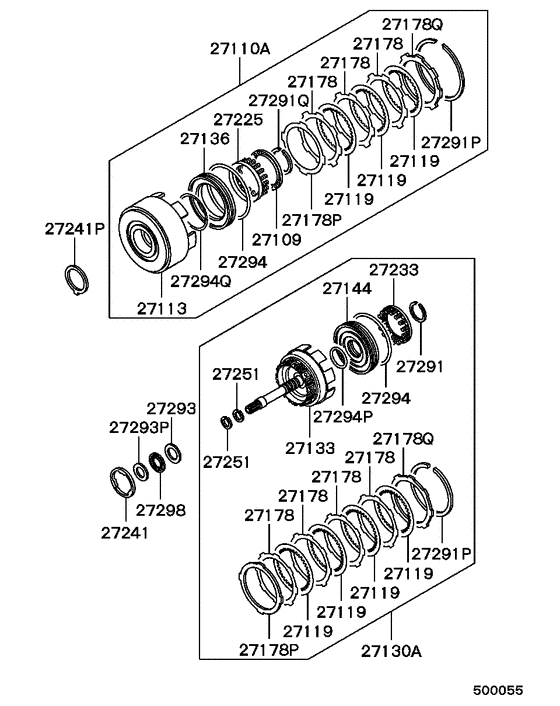

Diagram 7939111
Parts diagram group A/t clutch in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (31 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 27109 | MB919869 | SEAT, A/T DIRECT CLUTCH PISTON SPRING | 1 | $11.40 | |
| 27110A | MB919865 | CLUTCH ASSY, A/T DIRECT | 1 | $442.62 | |
| 27110A | MR276757 | CLUTCH ASSY, A/T FWD | 1 | $647.92 | |
| 27113 | MB919866 | DRUM, A/T DIRECT CLUTCH | 1 | $192.40 | |
| 27119 | MB919863 | DISC, A/T CLUTCH | 7 | $42.18 | |
| 27119 | MR276759 | DISC, A/T CLUTCH | 7 | $61.56 | |
| 27130A | MB919766 | CLUTCH ASSY, A/T FWD | 1 | $706.16 | |
| 27130A | MB919859 | CLUTCH ASSY, A/T FWD | 1 | $690.14 | |
| 27133 | MB919864 | SHAFT & CYLINDER, A/T FWD CLUTCH INPUT | 1 | $247.16 | |
| 27136 | MB919867 | PISTON, A/T DIRECT CLUTCH | 1 | $29.60 | |
| 27144 | MB919860 | PISTON, A/T FWD CLUTCH | 1 | $31.08 | |
| 27178 | MB919743 | PLATE, A/T CLUTCH | 7 | $44.40 | |
| 27178P | MB919768 | PLATE, A/T CLUTCH | 2 | $33.30 | |
| 27178Q | MB919745 | PLATE, A/T CLUTCH | 3.00 | 2 | $44.40 |
| 27178Q | MB919746 | PLATE, A/T CLUTCH | 3.33 | 1 | $44.40 |
| 27178Q | MB919747 | PLATE, A/T CLUTCH | 3.512 | 1 | $44.40 |
| 27225 | MB919868 | SPRING, A/T DIRECT CLUTCH PISTON | 1 | $8.58 | |
| 27233 | MB919861 | SPRING, A/T FWD CLUTCH PISTON | 1 | $10.95 | |
| 27241 | MB919871 | WASHER, A/T CLUTCH | 1 | $3.85 | |
| 27241P | MB919760 | WASHER, A/T CLUTCH | 1 | $19.98 | |
| 27251 | MB919862 | SEAL RING, A/T CLUTCH | 2 | $6.22 | |
| 27291 | MB919741 | SNAP RING, A/T CLUTCH | 1 | $3.85 | |
| 27291P | MB919748 | SNAP RING, A/T CLUTCH | 2 | $5.48 | |
| 27291Q | MB919870 | SNAP RING, A/T CLUTCH | 1 | $3.55 | |
| 27293 | MB919880 | RACE, A/T CLUTCH | 1 | $6.81 | |
| 27293P | MB919881 | RACE, A/T CLUTCH | 1.88 | 1 | $13.32 |
| 27293P | MB919882 | RACE, A/T CLUTCH | 2.45 | 1 | $18.50 |
| 27294 | MB919738 | O-RING, A/T CLUTCH | 2 | $9.32 | |
| 27294P | MB919739 | O-RING, A/T CLUTCH | 1 | $5.48 | |
| 27294Q | MB919751 | O-RING, A/T CLUTCH | 1 | $5.92 | |
| 27298 | MB919896 | THRUST BEARING, A/T CLUTCH | 1 | $13.32 |
