A/t case
This EPC family contains 4 catalog variations for the VIN-confirmed Pajero Mini H56A catalog.

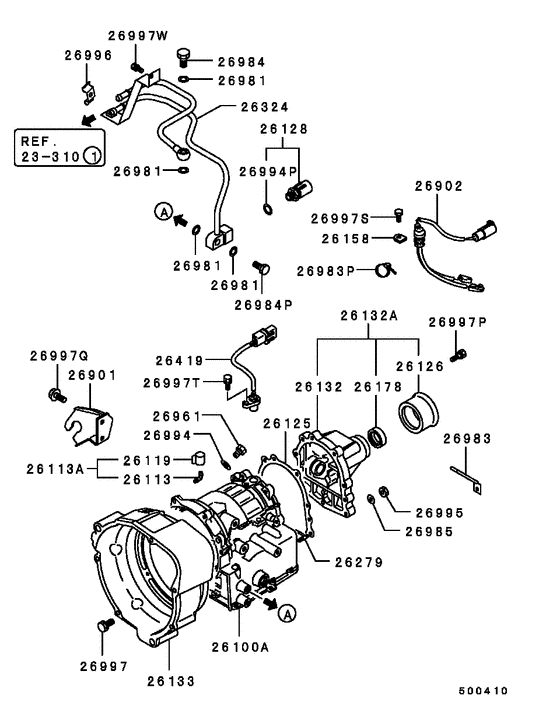

Diagram 7939105
Parts diagram group A/t case in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (34 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 26100A | MB919785 | CASE ASSY, A/T | 1 | $1138.59 | |
| 26113 | MB919646 | BREATHER, A/T CASE | 1 | $6.66 | |
| 26113A | MB919645 | BREATHER ASSY, A/T CASE | 1 | $14.06 | |
| 26119 | MD723762 | CAP, M/T EXTENSION HOUSING BREATHER PIPE | 2 | $8.73 | |
| 26125 | MB837040 | GASKET, A/T EXTENSION HOUSING | 1 | $4.44 | |
| 26126 | MD701849 | GUARD, M/T EXTENSION HOUSING DUST SEAL | 2 | $11.84 | |
| 26128 | MB919787 | SWITCH, A/T CASE OIL TEMPERATURE | 1 | $112.48 | |
| 26132 | MB919793 | HOUSING, A/T CASE EXTENSION | 1 | $275.28 | |
| 26132A | MB919792 | HOUSING ASSY, A/T CASE EXTENSION | 1 | $298.48 | |
| 26133 | MB919790 | HOUSING, A/T TORQUE CONVERTER | 1 | $544.54 | |
| 26158 | MB919728 | PLATE, A/T CASE | 1 | $6.66 | |
| 26178 | MB919848 | OIL SEAL, A/T EXTENSION HOUSING | 1 | $7.84 | |
| 26279 | MB919605 | STUD, A/T CASE | 2 | $3.85 | |
| 26324 | MR331568 | TUBE, A/T OIL COOLER FEED & RETURN | 1 | $97.68 | |
| 26419 | MB919948 | SENSOR, A/T SPEED | 1 | $264.02 | |
| 26901 | MR331570 | BRACKET, A/T CONTROL CABLE SUPPORT | 1 | $13.47 | |
| 26902 | MB919817 | HARNESS, A/T | 1 | $87.32 | |
| 26961 | MB919603 | PLUG, A/T | 1 | $2.96 | |
| 26981 | MF660064 | GASKET, CYLINDER BLOCK | D=12 | 4 | $0.49 |
| 26983 | MS470059 | CLIP, CRANKCASE | L=80 | 2 | $2.46 |
| 26984 | MF650113 | EYEBOLT, ENG OIL LINE | 12x23 | 1 | — |
| 26984 | MS650013 | EYEBOLT, FUEL LINE | 12x23 | 1 | $3.72 |
| 26984P | MB919828 | EYEBOLT, A/T | 1 | $7.84 | |
| 26985 | MD616010 | WASHER, A/T | 2 | $1.92 | |
| 26994 | MD616029 | O-RING, A/T | 1 | $2.52 | |
| 26994P | MB919788 | O-RING, A/T | 1 | $3.55 | |
| 26995 | MD616009 | NUT, A/T | 2 | $1.78 | |
| 26997 | MD616019 | BOLT, A/T | Washer assembled,8x30 | 6 | $2.52 |
| 26997P | MD616007 | BOLT, A/T | 5 | $1.92 | |
| 26997Q | MD616036 | BOLT, A/T | 8x20 | 2 | $2.52 |
| 26997S | MB919718 | BOLT, A/T | Washer assembled | 1 | $2.37 |
| 26997T | MD616024 | BOLT, SPEEDOMETER GEAR | Washer assembled,6x14 | 1 | $2.07 |
| 26997W | MB919725 | BOLT, A/T CASE | 15 | $3.70 | |
| 26997W | MD616036 | BOLT, A/T | 8x20 | 1 | $2.52 |

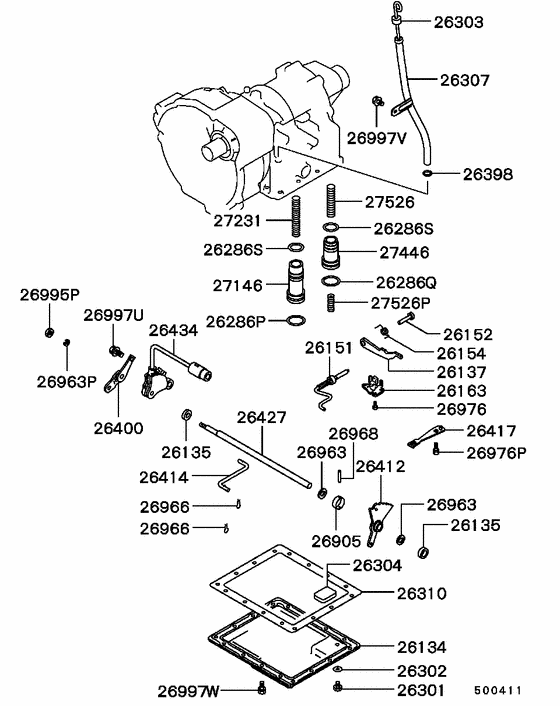

Diagram 7939106
Parts diagram group A/t case in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (41 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 26134 | MB919789 | OIL PAN, A/T CASE | 1 | — | |
| 26135 | MB919714 | OIL SEAL, A/T CASE MANUAL CONTROL SHAFT | 2 | $11.40 | |
| 26137 | MB919721 | PAWL, A/T CASE PARKING | 1 | $46.62 | |
| 26151 | MB919715 | ROD, A/T PARKING PAWL | 1 | $34.78 | |
| 26152 | MB919722 | SHAFT, A/T PARKING PAWL | 1 | $9.92 | |
| 26154 | MB919723 | SPRING, A/T CASE PARKING PAWL | 1 | $5.33 | |
| 26163 | MB919717 | SUPPORT, A/T PARKING PAWL ROD | 1 | $18.50 | |
| 26286P | MB919701 | O-RING, A/T CASE | 1 | $3.70 | |
| 26286Q | MB919702 | O-RING, A/T CASE | 1 | $3.70 | |
| 26286S | MB919703 | O-RING, A/T CASE | 2 | $3.70 | |
| 26301 | MD616016 | PLUG, A/T OIL PAN | 1 | $8.62 | |
| 26302 | MD616015 | GASKET, A/T OIL PAN DRAIN PLUG | 1 | $2.74 | |
| 26303 | MB919783 | GAUGE, A/T OIL LEVEL | 1 | $29.60 | |
| 26304 | MD616012 | MAGNET, A/T OIL PAN | 1 | $4.51 | |
| 26307 | MB919927 | TUBE, A/T OIL FILLER | 1 | $29.60 | |
| 26310 | MD616013 | GASKET, A/T OIL PAN | 1 | $18.47 | |
| 26398 | MR967864 | O-RING, A/T OIL FILLER | 1 | $3.40 | |
| 26400 | MR331567 | LEVER, A/T MANUAL CONTROL | 1 | $13.47 | |
| 26412 | MR331566 | LEVER, A/T MANUAL VALVE | 1 | $16.28 | |
| 26414 | MB919716 | ROD, A/T MANUAL VALVE LEVER | 1 | $12.43 | |
| 26417 | MB919719 | DETENT, A/T MANUAL CONTROL SHAFT | 1 | $10.36 | |
| 26427 | MB919857 | SHAFT, A/T MANUAL CONTROL LEVER | 1 | $36.26 | |
| 26434 | MR222847 | SWITCH, A/T CASE INHIBITOR | 1 | — | |
| 26905 | MB919709 | SPACER, A/T CONTROL EQUIP | 1 | $5.62 | |
| 26963 | MB919713 | WASHER, A/T CONTROL EQUIP | 2 | $3.40 | |
| 26963P | MB919816 | WASHER, A/T CONTROL EQUIP | 1 | $1.78 | |
| 26966 | MB919712 | SNAP RING, A/T CONTROL EQUIP | 2 | $1.63 | |
| 26968 | MB919711 | PIN, A/T CONTROL EQUIP | 1 | $4.14 | |
| 26976 | MB919718 | BOLT, A/T | Washer assembled | 3 | $2.37 |
| 26976P | MB919720 | BOLT, A/T CONTROL EQUIP | 1 | $4.44 | |
| 26995P | MB919815 | NUT, A/T | 1 | $1.63 | |
| 26997U | MB919726 | BOLT, A/T | Washer assembled | 1 | $7.70 |
| 26997U | MB919969 | BOLT, A/T | Washer assembled | 1 | $2.96 |
| 26997V | MB919720 | BOLT, A/T CONTROL EQUIP | 1 | $4.44 | |
| 26997W | MB919725 | BOLT, A/T CASE | 15 | $3.70 | |
| 26997W | MD616036 | BOLT, A/T | 8x20 | 1 | $2.52 |
| 27146 | MB919853 | PISTON, A/T FWD CLUTCH ACCUMULATOR | 1 | $24.42 | |
| 27231 | MB919854 | SPRING, A/T FWD CLUTCH ACCUMULATOR | 1 | $9.47 | |
| 27446 | MB919780 | PISTON, A/T 2ND BRAKE ACCUMULATOR | 1 | $24.42 | |
| 27526 | MB919855 | SPRING, A/T 2ND BRAKE ACCUMULATOR | 1 | $9.47 | |
| 27526P | MB919856 | SPRING, A/T 2ND BRAKE ACCUMULATOR | 1 | $2.52 |

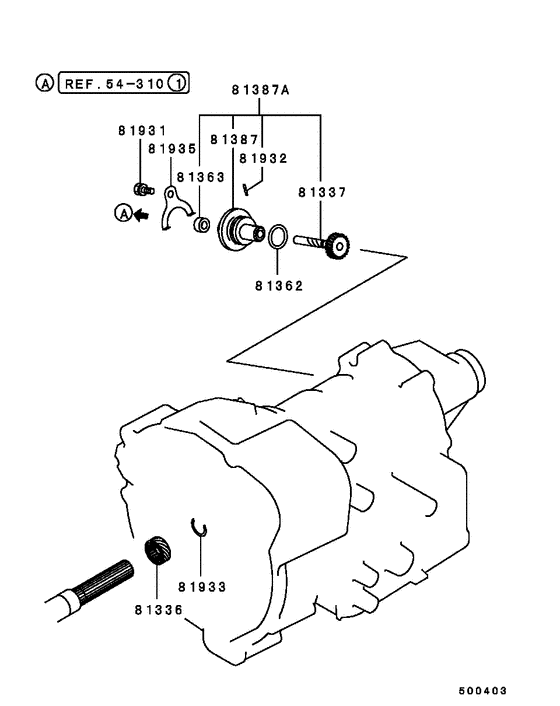

Diagram 7939107
Parts diagram group A/t case in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (10 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 81336 | MR263070 | GEAR, SPEEDOMETER DRIVE | 1 | $19.24 | |
| 81337 | MR263074 | GEAR, SPEEDOMETER DRIVEN | N=27,nylon | 1 | $22.20 |
| 81362 | MF520022 | O-RING, GEARSHIFT LINK | 30 | 1 | $2.22 |
| 81363 | MT201926 | OIL SEAL, SPEEDOMETER DRIVEN GEAR | 1 | $4.92 | |
| 81387 | MD741520 | SLEEVE, SPEEDOMETER DRIVEN GEAR | 1 | $38.48 | |
| 81387A | MR263072 | SLEEVE ASSY, SPEEDOMETER DRIVEN GEAR | 1 | $84.36 | |
| 81931 | MF241252 | BOLT, CARB | Washer assembled,8x18 | 1 | $0.86 |
| 81932 | MT209229 | SPRING PIN, SPEEDOMETER GEAR | 2x20 | 1 | $2.60 |
| 81933 | MD741523 | SNAP RING, SPEEDOMETER GEAR | 1.3 | 1 | $2.52 |
| 81935 | MD705451 | CLAMP, SPEEDOMETER GEAR | 1 | $5.83 |

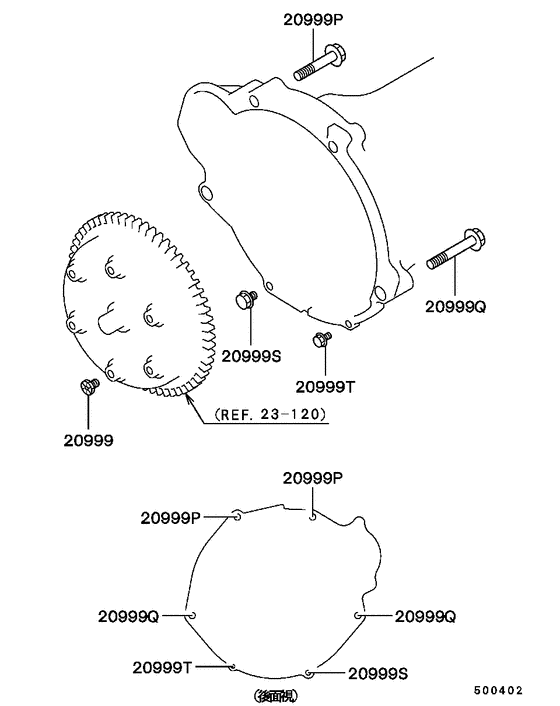

Diagram 7939108
Parts diagram group A/t case in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (5 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 20999 | MD949270 | BOLT, T/M CONNECTING | Special,8x11 | 6 | $6.07 |
| 20999P | MF140269 | BOLT, ENG RR PLATE | Flange,10x55 | 2 | $2.44 |
| 20999Q | MF140271 | BOLT, STARTER | Flange,10x65 | 2 | $5.34 |
| 20999S | MF140021 | BOLT, ACCEL CABLE SUPPORT | Flange,8x12 | 1 | $0.31 |
| 20999T | MF140203 | BOLT, ACCEL CABLE SUPPORT | Flange,6x12 | 1 | $0.64 |
