A/t brake
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.

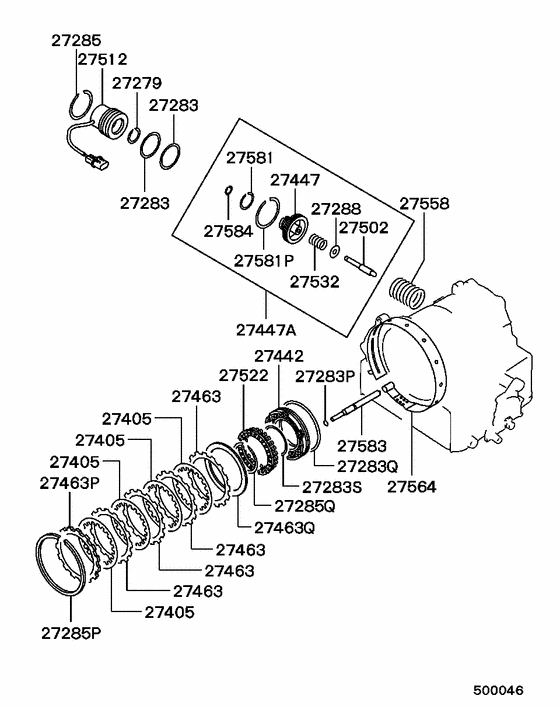

Diagram 7939113
Parts diagram group A/t brake in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (30 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 27279 | MB919953 | D-RING, A/T BRAKE | 1 | $7.25 | |
| 27283 | MB919681 | O-RING, A/T BRAKE | 2 | $6.22 | |
| 27283P | MB919668 | O-RING, A/T BRAKE | 1 | $6.22 | |
| 27283Q | MB919665 | O-RING, A/T BRAKE | 1 | $9.32 | |
| 27283S | MB919751 | O-RING, A/T CLUTCH | 1 | $5.92 | |
| 27285 | MB919682 | SNAP RING, A/T BRAKE | 1 | $4.14 | |
| 27285P | MB919655 | SNAP RING, A/T BRAKE | 1 | $4.59 | |
| 27285Q | MB919897 | SNAP RING, A/T BRAKE | 1 | $3.55 | |
| 27288 | MB919673 | WASHER, A/T BRAKE | 1 | $2.52 | |
| 27405 | MB919658 | DISC, A/T L-R BRAKE | 4 | $33.30 | |
| 27442 | MB919872 | PISTON, A/T L-R BRAKE | 1 | $70.30 | |
| 27447 | MB919930 | PISTON, A/T 2ND BRAKE SERVO | 1 | $70.30 | |
| 27447A | MB919939 | PISTON ASSY, A/T 2ND BRAKE SERVO | 1 | $134.68 | |
| 27447A | MB919940 | PISTON ASSY, A/T 2ND BRAKE SERVO | 1 | $134.68 | |
| 27447A | MB919941 | PISTON ASSY, A/T 2ND BRAKE SERVO | 1 | $134.68 | |
| 27463 | MB919659 | PLATE, A/T L-R BRAKE | 4 | $39.96 | |
| 27463P | MB919657 | PLATE, A/T L-R BRAKE | 1 | $39.96 | |
| 27463Q | MB919918 | PLATE, A/T L-R BRAKE | 1 | $29.60 | |
| 27502 | MB919886 | ROD, A/T 2ND BRAKE SERVO PISTON | Rod l=57.0 | 1 | $20.72 |
| 27502 | MB919887 | ROD, A/T 2ND BRAKE SERVO PISTON | Rod l=57.9 | 1 | $20.72 |
| 27502 | MB919888 | ROD, A/T 2ND BRAKE SERVO PISTON | Rod l=58.8 | 1 | $20.72 |
| 27512 | MB919958 | SOLENOID, A/T BRAKE | 1 | $46.62 | |
| 27522 | MB919840 | SPRING, A/T L-R BRAKE PISTON | 1 | $37.00 | |
| 27532 | MB919928 | SPRING, A/T 2ND BRAKE SERVO PISTON | 1 | $5.77 | |
| 27558 | MB919922 | SPRING, A/T 2ND BRAKE PISTON RETURN | 1 | $7.40 | |
| 27564 | MB919883 | BAND, A/T BRAKE | 1 | $118.40 | |
| 27581 | MB919889 | SEAL RING, A/T BRAKE | 1 | $7.25 | |
| 27581P | MB919677 | SEAL RING, A/T BRAKE | 1 | $10.66 | |
| 27583 | MB919667 | PIN, A/T BRAKE | 1 | $6.07 | |
| 27584 | MB919890 | E-RING, A/T BRAKE | 1 | $7.55 |
